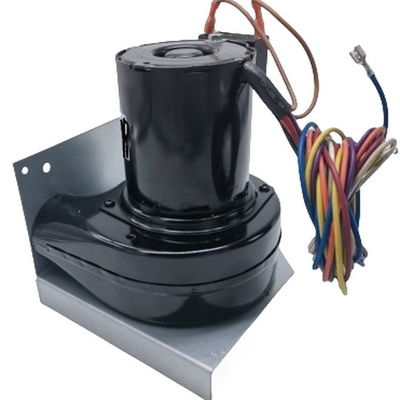

75W Convection Blower Motor Fan In Universal For Three-Voltage Design

75W Convection Blower Motor Fan In Universal For Three-Voltage Design
75W Convection Blower Motor Fan In Universal For Three-Voltage Design 75W Convection Blower Motor Fan In Universal For Three-Voltage Design 75W Convection Blower Motor Fan In Universal For Three-Voltage Design 75W Convection Blower Motor Fan In Universal For Three-Voltage Design

Large Image :  75W Convection Blower Motor Fan In Universal For Three-Voltage Design

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL /ETL
Model Number: MH84-84002
Payment & Shipping Terms:
Minimum Order Quantity: 360PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work day
Payment Terms: T/T
Supply Ability: 1200pcs/day

75W Convection Blower Motor Fan In Universal For Three-Voltage Design

Description
Product Name: 75W Convection Blower Fan Motor In Universal For Three-voltage Design MH MODEL: MH84-84002
Rated Voltage/Frequency: 115V/208-230V/277V60Hz Current(A): 0.82/0.4/0.35A
Input Power(W): 75 Speed(RPM): 3050
Hi-Pot TEST: 1500vac50Hz,1mA,1S Bearing Type: NMB Ball Bearing
Insulation Class: H Agency: UL/ETL
Thermally Protected: TP Wind Speed(m/s): 16
Air Volume(CFM): 115 Application: High Temperature Oven /Insulated Cabinet
High Light:

three-voltage Convection blower motor fan

,

75W Convection Blower Motor Fan

,

0.35 A Convection Blower Fan

75W Convection Blower Fan Motor in Universal for three-voltage design



This fan blower motor is designed for use in high-temperature ovens where it functions as a convection fan motor blower. It helps to circulate hot air within the oven, ensuring even heat distribution for efficient cooking or baking. It is designed to withstand the high temperatures generated within the oven during operation, ensuring its durability and longevity.



Quick Review:



Product Name: 75W Convection Blower Fan Motor In Universal For Three-voltage Design MH MODEL: MH84-84002
Rated Voltage/Frequency: 115V/208-230V/277V60Hz Current(A): 0.82/0.4/0.35A
Input Power(W): 75 Speed(RPM): 3050
Hi-Pot TEST: 1500vac50Hz,1mA,1S Bearing Type: NMB Ball Bearing
Insulation Class: H Agency: UL/ETL
Thermally Protected: TP Wind Speed(m/s): 16
Air Volume(CFM): 115 Application: High Temperature Oven /Insulated Cabinet



75W Convection Blower Motor Fan In Universal For Three-Voltage Design 0











75W Convection Blower Motor Fan In Universal For Three-Voltage Design 1



Production Features:

1.Mature and reliable shaded pole motor technology.

2. Large air volume centrifugal impeller.

3.Thermal protection mechanism.

4. High-temperature resistant ball bearings.

5.  In universal for three-voltage design

6. Typically used in high-temperature ovens and insulated food cart equipment.



Air Flow Curve:

75W Convection Blower Motor Fan In Universal For Three-Voltage Design 2









FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
