Product Details:
|
| Motor Type: | MH6038-38642 | Product Name: | High 90W Low 80W- 220V 60HZ AC Shade Pole Cross Flow Dual Cage Blower Fan UL |
|---|---|---|---|
| Rated Voltage/Frequency: | 220Vac/60Hz | Current（A): | H:1.5 L:1.45 |
| Input Power（W）: | H:90 L:80 | Speed（RPM): | H:1250 L:1150 |
| Air Flow（CFM): | H:96 L:87 | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protection Method: | TP(THERMAL PROTECTOR) |
| Agency: | UL | Feature: | Dual Cage Blower |
| High Light: | AC Shade Pole, Room Cross Flow Blower Motor Fan, Dual Cage Blower, 220V 60HZ | ||
| High Light: | Dual Squirrel Cage Cross Flow Fan,Cross Flow Blower Fan 220V,60HZ Cross Flow Fan |
||

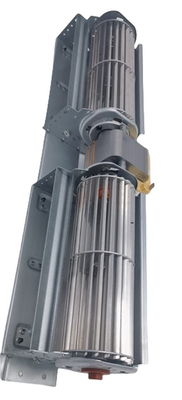

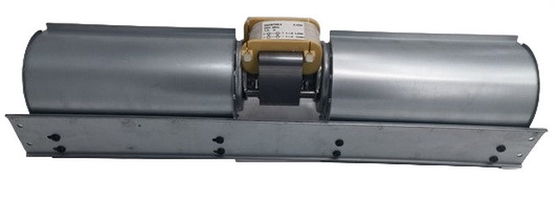

High 90W Low 80W- AC 220V 60HZ Shade Pole cross flow dual cage Blower Fan UL
This product has been certified by the UL agency.The blow fan is designed with a crossflow configuration, where the airflow passes through the entire fan horizontally. This design enables all-round air circulation and even distribution of airflow. A dual cage design, which increases the airflow output and air volume, resulting in a more powerful air circulation effect. This product offers high efficiency, low noise, and reliability. It is suitable for various applications and provides uniform air circulation and temperature regulation.
Specification:
|
Model Type:MH6038-38642 Motor Type:AC Shade Pole Motor |
|||
| Rated Voltage/Frequency | 220Vac/60Hz | Hi-Pot TEST | 1800vac50hz,1Ma,1s |
| Current(A) |
H:1.5 L:1.45 |
Bearing Type | NMB Ball Bearing |
| Input Power(W) |
H:90 L:80 |
Insulation Class | H |
| Speed(RPM) |
H:1250 L:1150 |
Safe Certification | UL |
| Air Flow(CFM) | H:96 | Protection method | TP(THERMAL PROTECTOR) |
| L:87 | Feature |
Dual cage |
|

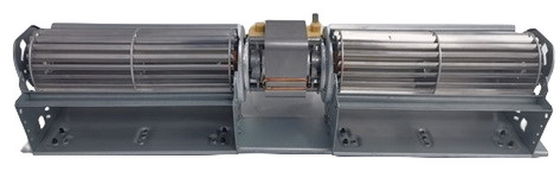

Dual crossflow impellers, delivering high airflow efficiently.
Can be customized, please contact us to get more information!
Production Features:
1. 65mm diameter impeller with a dual impeller design, providing high airflow with low noise.
2. The innovative airflow system design reduces the overall system cost and simplifies the structure of the entire unit.

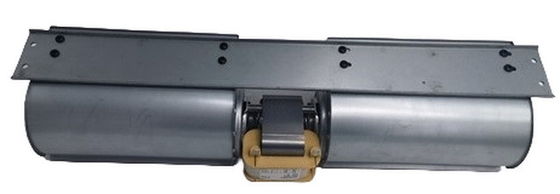

3. The installation baseplate design ensures stable fan operation.
4. It is driven by a C-FRAME shaded pole motor. The fan has a dual-speed design.
5. With a ball bearing structure, it is suitable for high-temperature environments and offers a long lifespan.
Performance Curve:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
