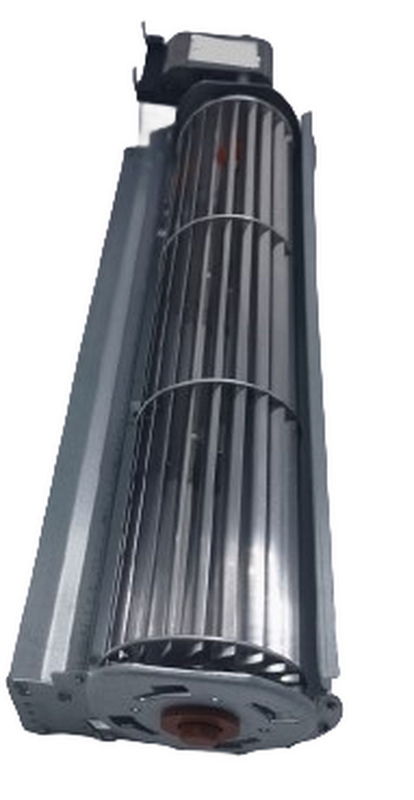

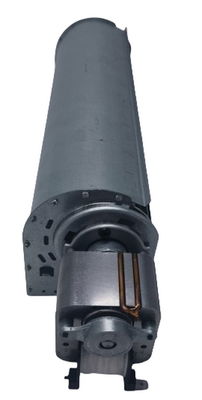

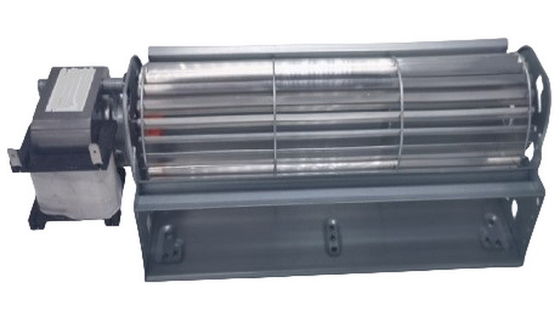

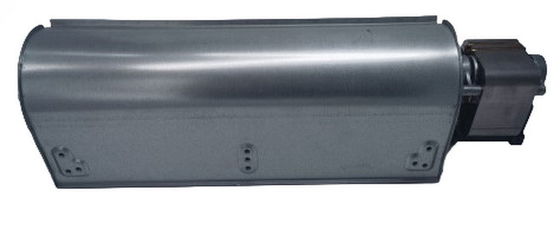

60mmx300mm AC Crossflow Blower Fan 80W 1.5A 120VAC High Temperature

60mmx300mm AC Crossflow Blower Fan 80W 1.5A 120VAC High Temperature
60mmx300mm AC Crossflow Blower Fan 80W 1.5A 120VAC High Temperature 60mmx300mm AC Crossflow Blower Fan 80W 1.5A 120VAC High Temperature 60mmx300mm AC Crossflow Blower Fan 80W 1.5A 120VAC High Temperature 60mmx300mm AC Crossflow Blower Fan 80W 1.5A 120VAC High Temperature

Large Image :  60mmx300mm AC Crossflow Blower Fan 80W 1.5A 120VAC High Temperature

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6038-38031
Payment & Shipping Terms:
Minimum Order Quantity: 360PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30-35 work days
Payment Terms: T/T
Supply Ability: 1500PCS/day

60mmx300mm AC Crossflow Blower Fan 80W 1.5A 120VAC High Temperature

Description
Product Name: Cross Flow Blowers Fan 80W 120V Motor Type: MH6038-38031
Rated Voltage/Frequency: 120Vac/60Hz Current(A): 1.5
Input Power(W): 80W Speed(RPM): 1850
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: H Thermally Protected: TP
Wind Speed(m/s): 9.8 Air Volume(CFM): 210
Vibration(cm/s):: ≤0.25. Application: Pellet Fireplace, Lab Equipment ,oven
Agency: ETL
High Light:

High Temperature AC Crossflow Blower Fan

,

1.5A Cross flow Blower Fan

,

Cross flow Blower Fan 120VAC

China 60mm x 300mm  AC Crossflow flow Fan 80W 1.5A 120VAC suitable  for High Temperature


The fan blower has a diameter of 60mm and operates with a power input of 80W and a current of 1.5A. It is suitable for cooling small to medium-sized equipment or systems.  High air volume and wide air delivery,  low-pressure laminar design which allows for efficient cooling and airflow distribution and low noise.



Quick Review:


Model Type: MH6038-38031

Motor Type:AC Shade Pole Motor

Rated Voltage/Frequency 120Vac/60Hz Hi-Pot TEST 1500vac50hz,1Ma,1s
Current(A) 1.5 Bearing Type NMB Ball Bearing
Input Power(W) 80 Insulation Class H (Thermally Protected)
Speed(RPM) 1850 Agency Certification ETL
Wind Speed(m/s) 9.8 Air Volume(CFM) 210
Protected  TP Vibration(cm/s): ≤0.25.



60mmx300mm AC Crossflow Blower Fan 80W 1.5A 120VAC High Temperature 0







Production Feature :


1. 60mmX300mm diameter impeller provides high airflow and low noise.
3. Driven by a C-FRAME shaded pole motor.
5. Equipped with ball bearings, suitable for high-temperature environments and long service life.
6.
The innovative air flow system design reduces the entire system cost and simplifies the whole machine structure.

The typical appilication:

Pellet Stove, OVEN, Lab Equipment

60mmx300mm AC Crossflow Blower Fan 80W 1.5A 120VAC High Temperature 1
