65mmX240 AC Cross Flow Blower / Air Blower Motor Fan 50W 0.78A 115V

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

65mmX240 AC Cross Flow Blower / Air Blower Motor Fan 50W 0.78A 115V

65mmX240 AC Cross Flow Blower / Air Blower Motor Fan 50W 0.78A 115V
65mmX240 AC Cross Flow Blower / Air Blower Motor Fan 50W 0.78A 115V 65mmX240 AC Cross Flow Blower / Air Blower Motor Fan 50W 0.78A 115V 65mmX240 AC Cross Flow Blower / Air Blower Motor Fan 50W 0.78A 115V 65mmX240 AC Cross Flow Blower / Air Blower Motor Fan 50W 0.78A 115V

Large Image :  65mmX240 AC Cross Flow Blower / Air Blower Motor Fan 50W 0.78A 115V

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6029-29038
Payment & Shipping Terms:
Minimum Order Quantity: 420PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1500PCS/day

65mmX240 AC Cross Flow Blower / Air Blower Motor Fan 50W 0.78A 115V

Description
Product Name: 65mmX240 AC Cross Flow Blower Air Blower Motor Fan 50W 0.78A 115V Motor Type: MH6029-29038
Rated Voltage/Frequency: 115V 60Hz Current(A): 0.78
Input Power(W): 50W Speed(RPM): 1500
Hi-Pot TEST: 1500V50Hz,1mA,1S Bearing Type: NMB Ball Bearing
Insulation Class: H Start Voltage: 71V 60Hz
Thermally Protected: T.P Wind Speed(m/s): 6.7
Air Volume(CFM): 158 Application: KITCHEN EQUIPMENT,PELLET STOVE
Agency: ETL Vibration :: 0.25cm/s MAX
High Light:

0.78 A Air Blower Motor Fan

,

Air Blower Motor Fan 50W

,

ETL AC Cross Flow Blower Fan

65mmX240 AC Cross Flow Blower Air Blower Motor Fan 50W 0.78A 115V

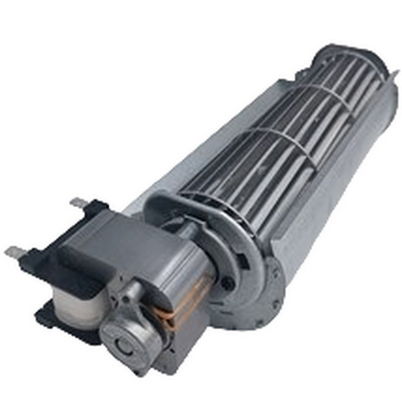

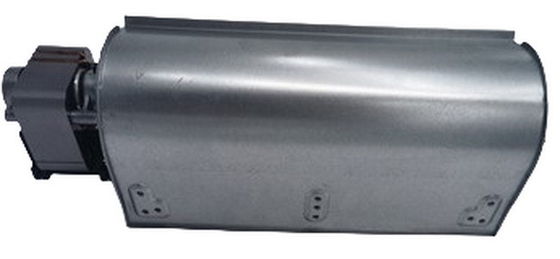

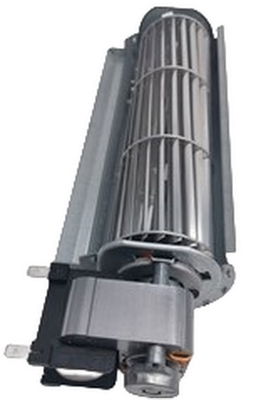

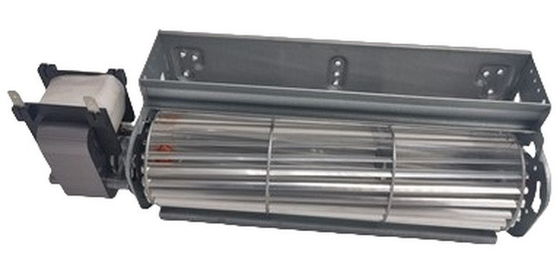

The blower is a high air volume, wide air delivery AC cross flow blower fan with dimensions of 65mm x 240mm. This design is to be provided a high volume of air, making it suitable for applications that require strong airflow for effective air circulation and cooling.It also offers a wide air delivery range. Also equipped with Hall speed feedback technology. This feedback mechanism utilizes Hall effect sensors to measure the speed of the fan's rotation.

Quick Review:

Product Name:  65mmX240 AC Cross Flow Blower Air Blower Motor Fan 50W 0.78A 115VMotor Type: MH-6029-29038
Rated Voltage/Frequency:115V 60HzCurrent(A):0.78
Input Power(W):50WSpeed(RPM):1350
Hi-Pot TEST:1500V50Hz,1mA,1SBearing Type:NMB Ball Bearing
Insulation Class:HStart Voltage:NA
Thermally Protected:T.PWind Speed(m/s):6.7
Air Volume(CFM):158Application:KITCHEN EQUIPMENT,PELLET STOVE
Agency:ETLFeature:

High Temperature and high air volumn




Production Feature :

1. 65mmX240mm impeller provides high airflow and low noise.
2. Driven by a C-FRAME shaded pole motor.
3. The motor can be mounted in any of the four positions.
4. The fan features a ball bearing structure, making it suitable for high-temperature environments and ensuring a long lifespan

65mmX240 AC Cross Flow Blower / Air Blower Motor Fan 50W 0.78A 115V 0
Air Flow Curve:
65mmX240 AC Cross Flow Blower / Air Blower Motor Fan 50W 0.78A 115V 1

FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
