Product Details:
|
| Product Name: | 49W 60mm Impeller Cross Flow Blower Fan AC High Air Volumn | Motor Type: | MH6029-29032 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115v60hz | Current（A): | 0.83 |
| Input Power（W）: | 49W | Speed（RPM): | 3050 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Thermally Protected: | Z.P |
| Wind Spee(m/s): | 9.5 | Air VolumeCFM): | 113 |
| Application: | Pellet Stove,oven | Agency: | ETL |
| High Light: | AC Shade Pole, 60mm Impeller 49W High Temperature, Cross Flow Blowers Fan | ||

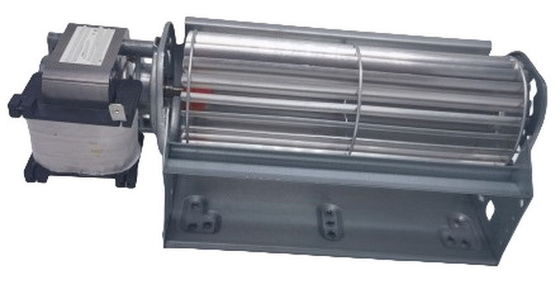

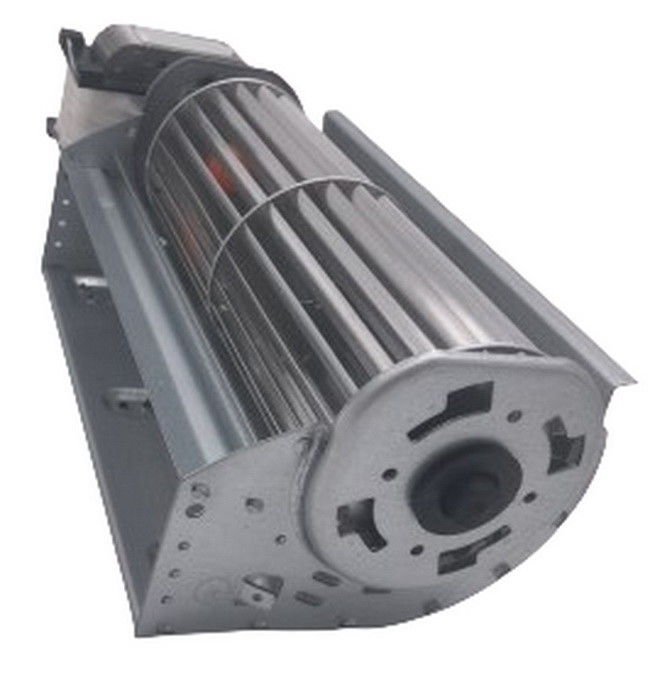

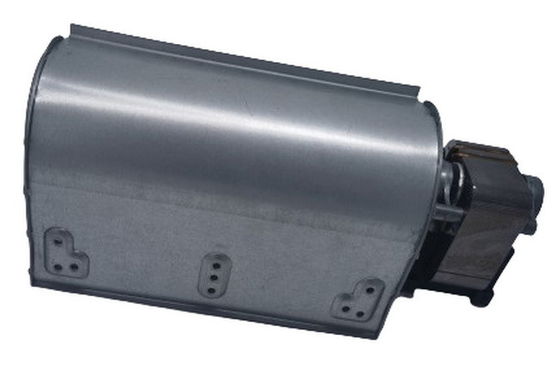

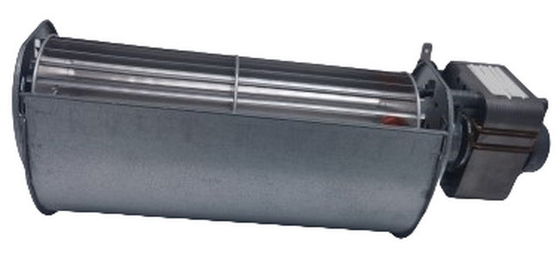

49W 60mm Impeller Cross Flow Blower Fan AC High Air Volumn
The 60mm cross blower fan provides a high airflow rate, delivers efficient air delivery with wide air supply, high air volume delivery ,high air volume, low noise. The typically applications in various fields, including food heating or fireplace oven.
It is designed to operate in high-temperature environments and can withstand elevated temperatures.
Quick Review:
| Product Name: | 49W 60mm Impeller Cross Flow Blower Fan AC High Temperature High Air Volumn | Motor Type: | MH6029-29032 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115Vac/60Hz | Current(A): | 0.83 |
| Input Power(W): | 49W | Speed(RPM): | 3050 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Thermally Protected: | z.p |
| Wind Speed(m/s): | 9.5 | Air Volume(CFM): | 113 |
| Start Voltage | NA | Agency: | ETL |
FEATURE:
1. 60mm impeller, high air volume, low noise.
2. Innovative air flow system design reduces overall system cost and simplifies the entire machine structure.
3. Applied in various fields, including food heating and fireplaces.
4. Driven by a C-FRAME shaded pole motor.
5. Equipped with ball bearing structure, suitable for high-temperature environments, and long lifespan.
AIR FLOW CURVE
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
