Product Details:
|
| Product Name: | 65mmX240 Impeller AC Cross Flow Blower Fan 38W 0.57A 120VAC 60HZ High Air Volumn | Motor Type: | MH6029-29028 |
|---|---|---|---|
| Rated Voltage/Frequency: | 120v60hz | Current（A): | 0.57 |
| Input Power（W）: | 38W | Speed（RPM): | 1620 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Vibration :: | 0.25cm/s MAX |
| Thermally Protected: | Z.P | Wind Speed(m/s): | 6.7 |
| Air Volume（CFM): | 102 | Application: | Pellet Stove ,oven |
| Agency: | ETL | ||
| High Light: | AC Shade Pole, 65mm Cross Flow Blowers Fan, 38W High Volumn | ||

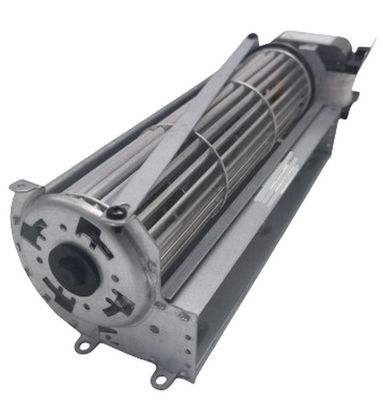

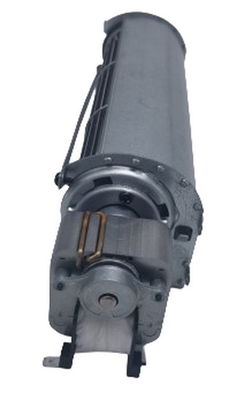

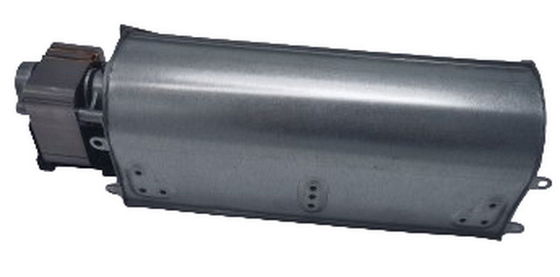

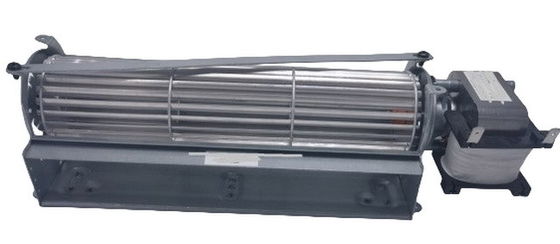

65mmX240 Impeller AC Cross Flow Blower Fan 38W 0.57A 120VAC 60HZ High Air Volumn
The described blower fan is a 65mm AC crossflow cooling blower which operates on alternating current (AC) and has a power input rating of 38 watts and a current of 0.57 amps. This fan is specifically designed for cooling applications. It features a crossflow design and is suitable for smaller applications or situations with space limitations.
| Length of Wheel (mm) |
Air Flow at Static Pressure(CFM) | |||||
| 0 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | |
| 120 | 80 | 75 | 70 | 45 | 5 | 0 |
| 180 | 120 | 115 | 105 | 70 | 10 | 0 |
| 240 | 160 | 155 | 140 | 95 | 15 | 0 |
| 300 | 200 | 195 | 175 | 120 | 20 | 0 |
| 360 | 240 | 230 | 210 | 145 | 25 | 0 |
Production Feature :
1. 65mm diameter impeller, saving equipment space, low noise.
2. Used in various fields, including food heating.
3. Driven by a C-FRAME shaded pole motor.
4. The motor can be mounted in any of the four positions.
5. Equipped with ball bearing structure, suitable for high-temperature environments, long lifespan.
6. Multiple performance options available.
Package:
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
