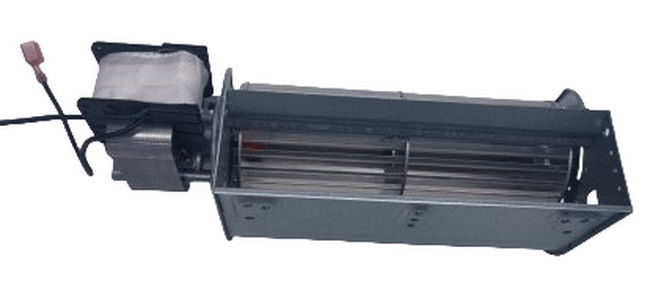

60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
Customer Reviews
For many years we are buying blower fans with MH motor. We are happy to work with them.

—— Roymond

We trust a lot in MH motor! Their motors is the best replacement from FASCO option for us in the market.

—— Edmund Anjum

MH motor is very reliable at product quality and lead time. We have worked with them for 7 years.

—— Abdul Hameed

Motors are running good for my customers' equipment, Very happy to cooperate with MHmotors

—— Roxy Gutierrez

I'm Online Chat Now

60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ

60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ
60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ 60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ 60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ 60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ

Large Image :  60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6029-29008
Payment & Shipping Terms:
Minimum Order Quantity: 576PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work days
Payment Terms: T/T
Supply Ability: 1500PCS/day

60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ

Description
Product Name: 60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ Motor Type: MH6029-29008
Rated Voltage/Frequency: 115Vac/60Hz Current(A): 0.65
Input Power(W): 40W Speed(RPM): 1550
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: H Start Voltage: 70V 60Hz
Thermally Protected: TP Wind Speed(m/s): 8
Air Volume(CFM): 102 Vibration:: ≤0.15cm/s
Application: Pellet Fireplace, Lab Equipment ,oven Agency: ETL
High Light: AC Shade Pole, 60mm*180mm Cross Flow Blowers Fan, 40W ETL Agency

60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ



The fan blower has a diameter of 60mm and operates with a power input of 40W and a current of 0.65A. It is suitable for cooling small to medium-sized equipment or systems.  High air volume and wide air delivery,  low-pressure laminar design which allows for efficient cooling and airflow distribution and low noise.



Quick Review:


Model Type: MH6029-29008

Motor Type:AC Shade Pole Motor

Rated Voltage/Frequency 115Vac/60Hz Hi-Pot TEST 1500vac50hz,1Ma,1s
Current(A) 0.65 Bearing Type NMB Ball Bearing
Input Power(W) 40 Insulation Class H (Thermally Protected)
Speed(RPM) 1550 Agency Certification ETL
Wind Speed(m/s) 8 Air Volume(CFM) 102
Protected  TP Start Voltage 70V 60HZ



60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ 0

Production Feature :


1. 60mm diameter *180mm impeller provides high airflow and low noise.
2. It is suitable for various applications, including food heating and cooling.
3. Driven by a C-FRAME shaded pole motor.
4. The motor can be mounted in any of 4 positions.
5. Equipped with ball bearings, suitable for high-temperature environments and long service life.
6. Multiple performance options are available.


The typical appilication:

Pellet Stove, OVEN, Lab Equipment





60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ 1



Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
