Product Details:
|
| Motor Type: | MH6029-29005 | Product Name: | 58W Cross Flow Blower Fan Dual Squirrel Cage Blower 45mm Dia Impeller |
|---|---|---|---|
| Rated Voltage/Frequency: | 115Vac/60Hz | Current（A): | 1.02 |
| Input Power（W）: | 58 | Speed（RPM): | 3000 |
| Air Flow（CFM): | 142 | Bearing Type: | Ball Bearing |
| Insulation Class: | H | Hi-pot Test: | 1500VAC 1mA,1S |
| Protection Method: | Z.P | Agency: | ETL |
| Feature: | Dual Cage Blower |

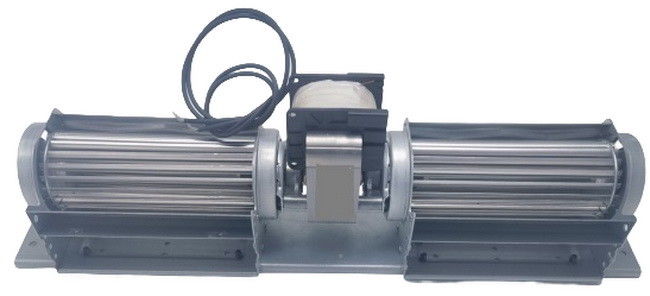

58W Cross Flow Blower Fan Dual Squirrel Cage Blower 45mm dia impeller
Quick Review:
|
Model Type:MH6029-29005 Motor Type:AC Shade Pole Motor |
|||
| Rated Voltage/Frequency | 115Vac/60Hz | Hi-Pot TEST | 1500vac50hz,1Ma,1s |
| Current(A) |
1.02 |
Bearing Type | Ball Bearing |
| Input Power(W) |
58 |
Insulation Class | H |
| Speed(RPM) |
3000 |
Safe Certification | ETL |
| Air Flow(CFM) | 142 | Protection method | ZP |
| Feature |
Dual cage |
||
Dual crossflow impellers, delivering high airflow efficiently.
Can be customized, please contact us to get more information!
Production Features:
1. 45mm diameter impeller with a dual impeller design, providing high airflow with low noise.
2. The innovative airflow system design reduces the overall system cost and simplifies the structure of the entire unit.
3. The installation baseplate design ensures stable fan operation.
4. It is driven by a C-FRAME shaded pole motor.
5. With a ball bearing structure, it is suitable for high-temperature environments and offers a long lifespan.
Air Flow Curve:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
