50W 12 24VDC External Rotor Motor Centrifugal Exhaust Fan For Air Purifier

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

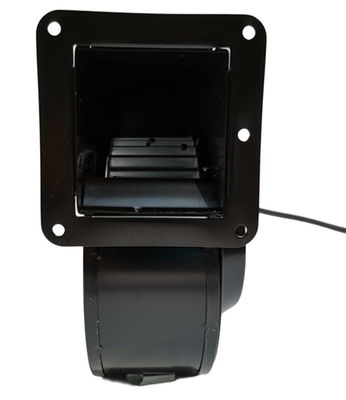

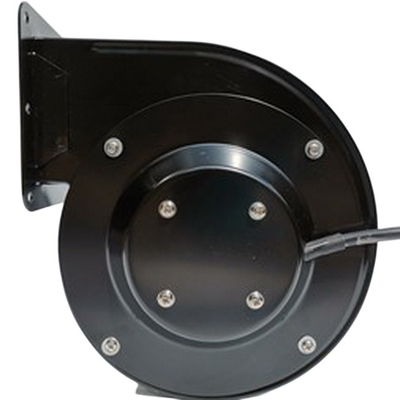

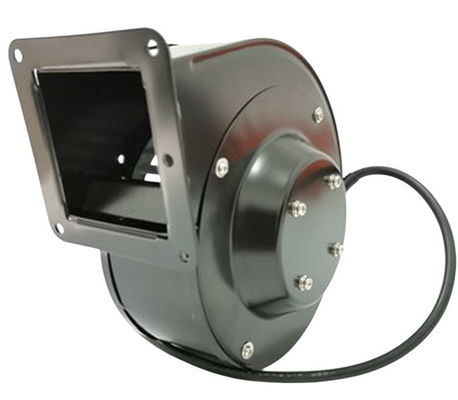

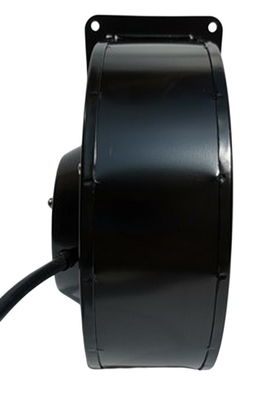

50W 12 24VDC External Rotor Motor Centrifugal Exhaust Fan For Air Purifier

50W 12 24VDC External Rotor Motor Centrifugal Exhaust Fan For Air Purifier
50W 12 24VDC External Rotor Motor Centrifugal Exhaust Fan For Air Purifier 50W 12 24VDC External Rotor Motor Centrifugal Exhaust Fan For Air Purifier 50W 12 24VDC External Rotor Motor Centrifugal Exhaust Fan For Air Purifier 50W 12 24VDC External Rotor Motor Centrifugal Exhaust Fan For Air Purifier

Large Image :  50W 12 24VDC External Rotor Motor Centrifugal Exhaust Fan For Air Purifier

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: CE
Model Number: MH-RIG133-H045-01F
Payment & Shipping Terms:
Minimum Order Quantity: 200PC2
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work days
Payment Terms: T/T
Supply Ability: 1000PCS/day

50W 12 24VDC External Rotor Motor Centrifugal Exhaust Fan For Air Purifier

Description
Product Name: IP44/55 50W 12/24/48VDC External Rotor Centrifugal Blower Fan For Air Purifier Motor Type: MH-RIG133-H045-01F
Rated Voltage/Frequency: DC12/24/48VDC Current (A): 4.8/2.4/1.1A
Input Power(W): 50W Output Speed(RPM): 2200
Insulation Class: B Agency: CE
Air Volume(m³/H): 157 PST: 310pa
Noise: 64dB(A) IP: 44/45
Bearing Type: BALL BEARING Application: Air Purifier/LAB EQUIPMENT
IMPELLER MATERIAL: Galvanized Steel
High Light:

0.05KW external rotor motor

,

12 24VDC external rotor motor

,

centrifugal exhaust fan 1.1A

IP44/45  50W 12/24/48VDC External rotor Centrifugal Blower fan for air purifier



The blower fan is DC power it was specifically designed for use in air purifiers or lab equipment with three voltage. Air purifiers are devices that remove contaminants, such as dust, pollen, and smoke particles, from the air.



This blower fan operates on DC 12/24/48V three voltage, features an external rotor design, and provides efficient airflow typically in air filtration equipment for ventilation, control cabinet cooling, laboratory purification box.



Quick Review:



Product Name: IP44/45 50W 12/4/48VDC External Rotor Centrifugal Blower Fan For Air Purifier Motor Type: MH-RIG097-H043-01F
Rated Voltage/Frequency: DC12/24/48VDC Current(A): 4.8/2.4/1.1A
Input Power(W): 50W Output Speed(RPM): 2200
Insulation Class: B Agency: CE
Air Volume(m³/H): 157 PST: 310pa
Noise: 64dB(A) IP: 42
Bearing Type: BALL BEARING Application: Air Purifier/LAB EQUIPMENT
TEMP S -25℃+60℃  IMPELLER MATERIAL: Galvanized Steel



Can be customized , please contact us to get more information!

50W 12 24VDC External Rotor Motor Centrifugal Exhaust Fan For Air Purifier 0



Production Description:



DC MOTOR

Protect method: Polarity Protection;Soft start

Locket-rotor protection

Over current protection

Over voltage protection

Technical features:0-10vdc/pwm speed control

PWM FREQUENCY:1-10KHZ

OPERATION MODE:S1

PROTECTION GRADE:IP55/44

TEMP S:-25℃+60℃

IMPELLER MATERIAL:Galvanized steel

HOUSING MATERIAL:PA66+25%GF



Air volume/Pressure Curve:

50W 12 24VDC External Rotor Motor Centrifugal Exhaust Fan For Air Purifier 1

50W 12 24VDC External Rotor Motor Centrifugal Exhaust Fan For Air Purifier 2



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, etc... And we offer the sourcing service for other products required.
