Product Details:
|
| Product Name: | IP44/55 347W DC External Rotor Centrifugal Blower Fan With Self-resetting | Motor Type: | MH-R3G310-H070-02B |
|---|---|---|---|
| Rated Voltage/Frequency: | 230V50/60Hz | Current（A): | 3.2 |
| Input Power（W）: | 347 | Output Speed（RPM): | 2850 |
| Insulation Class: | B | Agency: | CE |
| Air Volume(m³/H): | 1529 | PST: | 980 |
| Noise: | 87 DBA | IP: | 44/55 |
| Bearing Type: | BALL BEARING | Application: | Air Purifier/LAB EQUIPMENT |
| TEMP S: | -25℃+60℃ | Protect Method: | Self-resetting TOP WIRED INTERNALLY |
| High Light: | 347W external rotor axial fan,230V external rotor axial fan,IP44 types of fans and blowers |
||

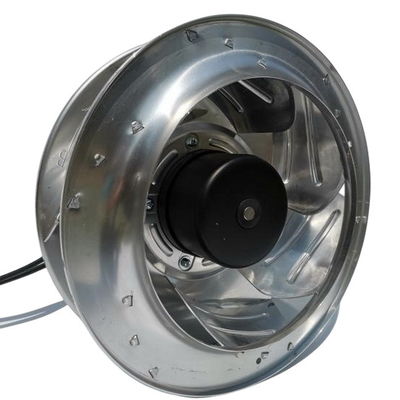

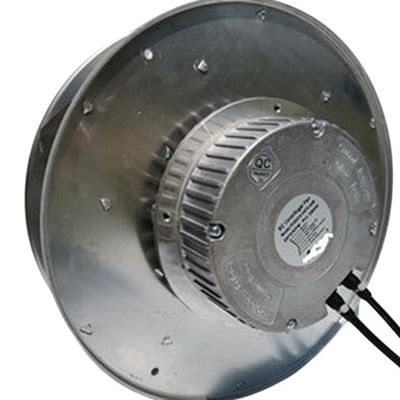

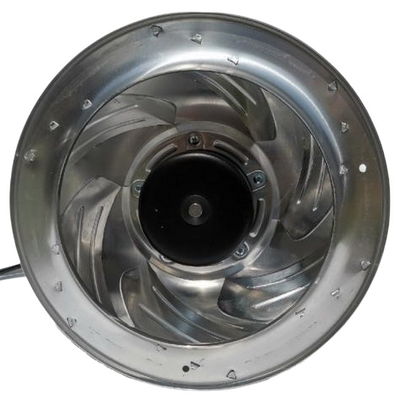

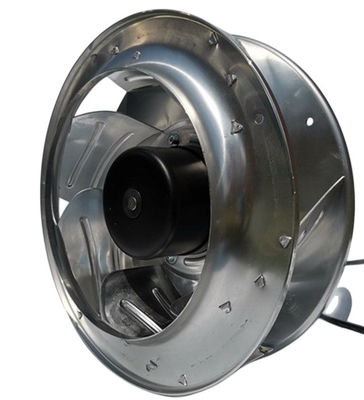

IP44/55 347W DC external rotor Centrifugal Blower fan with self-resetting
Product Feature :
DC MOTOR
Protect method: Self-resetting TOP WIRED INTERNALLY
Technical features:0-10vdc/pwm speed control
PWM FREQUENCY:1-10KHZ
OPERATION MODE:S1
PROTECTION GRADE:IP44/55
TEMP S:-25℃+60℃
IMPELLER MATERIAL:AL Alloyed
Quick Review:
| Product Name: | IP44/55 347W DC External Rotor Centrifugal Blower Fan With Self-resetting | Motor Type: | MH-R3G310-H070-02B |
|---|---|---|---|
| Rated Voltage/Frequency: | 230V50/60Hz | Current(A): | 3.2 |
| Input Power(W): | 347 | Output Speed(RPM): | 2850 |
| Insulation Class: | B | Agency: | CE |
| Air Volume(m³/H): | 1529 | PST: | 980 |
| Noise: | 87 DBA | IP: | 44/55 |
| Bearing Type: | BALL BEARING | Application: | Air Purifier/LAB EQUIPMENT |
| TEMP S: | -25℃+60℃ | Protect Method: | Self-resetting TOP WIRED INTERNALLY |
Can be customized , please contact us to get more information!
Air volume/Pressure Curve:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
