Product Details:
|
| Product Name: | IP42 12V 3.6W DC Air Ventilation Electrical Cooling System Centrifugal Blower Fan | Motor Type: | MH-AN9733BH12 |
|---|---|---|---|
| Rated Voltage/Frequency: | DC12VDC | Current（A): | 0.3A |
| Input Power（W）: | 3.6 | Output Speed（RPM): | 2700 |
| Insulation Class: | B | Agency: | CE |
| Air Volume(m³/H): | 32 | PST: | 102 |
| Noise: | 38 DBA | Bearing Type: | BALL BEARING |
| IP: | 42 | Application: | Air Purifier/LAB EQUIPMENT |
| TEMP S: | -25℃+60℃ | WEIGHT: | 0.18Kg |
| High Light: | IP42 Centrifugal Blower Fan,12V Centrifugal Blower Fan,3.6W cooling blower fan |
||

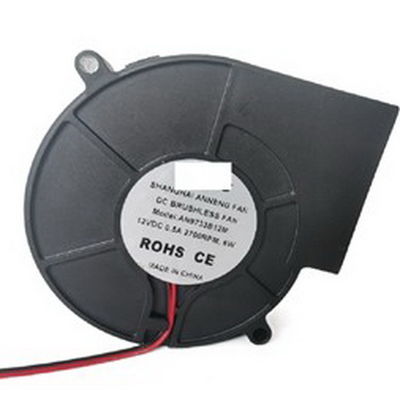

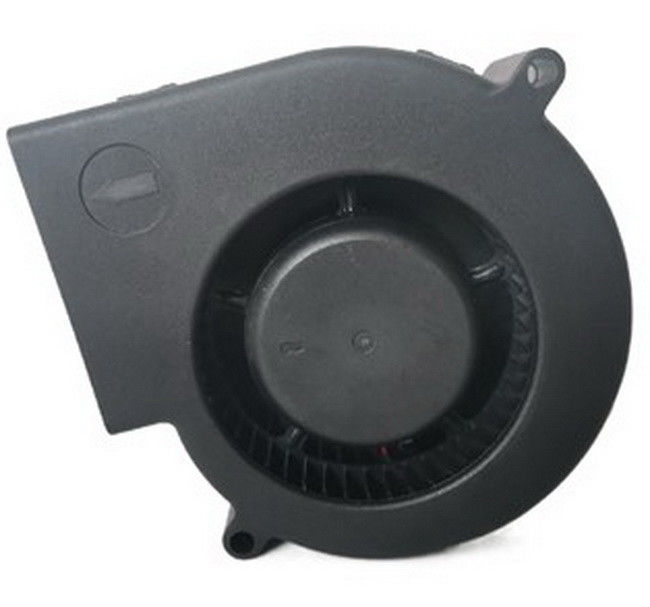

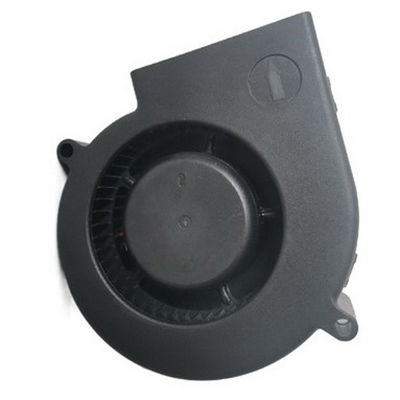

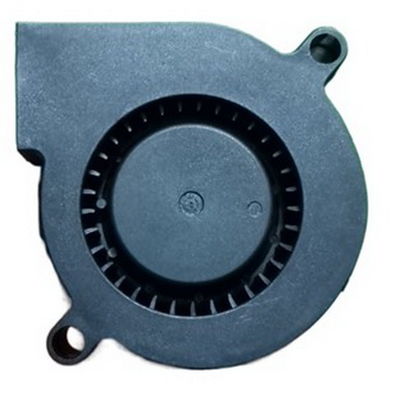

IP42 12V 3.6W DC Air Ventilation Electrical Cooling System Centrifugal Blower Fan
The fan is specifically designed for air ventilation and cooling purposes. It helps to circulate air, remove heat, and maintain an optimal temperature within the target system or enclosure. The fan operates on a 12V direct current (DC) power supply. This low voltage requirement makes it compatible with various electronic devices and systems, such as computers, electronic cabinets, or automotive applications.
Quick Review:
| Product Name: | IP42 12V 3.6W DC Air Ventilation Electrical Cooling System Centrifugal Blower Fan | Motor Type: | MH-AN9733BH12 |
|---|---|---|---|
| Rated Voltage/Frequency: | DC12VDC | Current(A): | 0.3A |
| Input Power(W): | 3.6 | Output Speed(RPM): | 2700 |
| Insulation Class: | B | Agency: | CE |
| Air Volume(m³/H): | 32 | PST: | 102 |
| Noise: | 38 DBA | Bearing Type: | BALL BEARING |
| IP: | 42 | Application: | Air Purifier/LAB EQUIPMENT |
| TEMP S: | -25℃+60℃ | WEIGHT: | 0.18Kg |
Can be customized , please contact us to get more information!
Product Description:
DC MOTOR
Protect method: Impedance protection
reverse polarity protection
Technical features:0-10vdc/pwm speed control
PWM FREQUENCY:1-10KHZ
OPERATION TEMPERATURE:-10℃+70℃
BALL BEARING
PROTECTION GRADE:IP42
TEMP S:-25℃+60℃
Expected Life: 50000hours@40℃
IMPELLER MATERIAL:PBT(94 VO)
HOUSING MATERIAL:PBT(94 VO)
Air volume/Pressure Curve:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, etc... And we offer the sourcing service for other products required.
