Product Details:
|
| Product Name: | 60mm China AC Cross Flow Blowers Fan With 3-speed Low-pressure Laminar Flow Design | Motor Type: | MH6019-19332 |
|---|---|---|---|
| Rated Voltage/Frequency: | 240v 50hz | Current（A): | H: 0.3 M: 0.2 L:0.14 |
| Input Power（W）: | H: 33 M: 25 L:20 | Speed（RPM): | H: 1650 M: 1200 L:950 |
| Hi-Pot TEST: | 1800vac50hz,3Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Thermally Protected: | TP |
| Wind Speed(m/s): | H:5 M: 3.5 L:3 | Air Volume（CFM): | H: 119 M: 90 L:70 |
| Start Voltage:: | 161V 50Hz | Application: | Pellet Stove,oven/lab Equipment |
| Agency: | UL | ||
| High Light: | 60mm Cross Flow Blower Fan,AC Cross Flow Blower Fan,tangential blower fan 50hz |
||

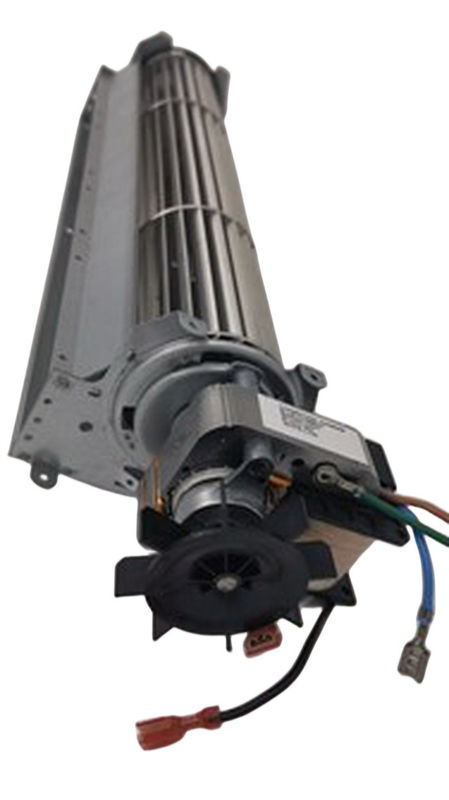

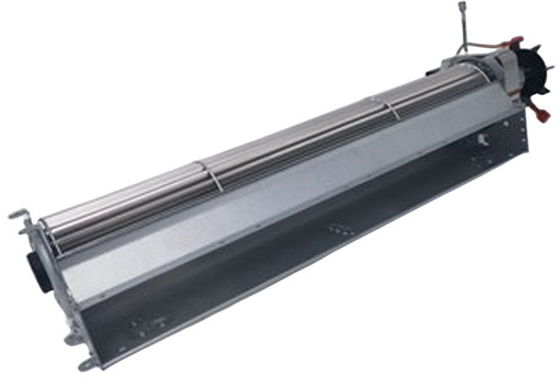

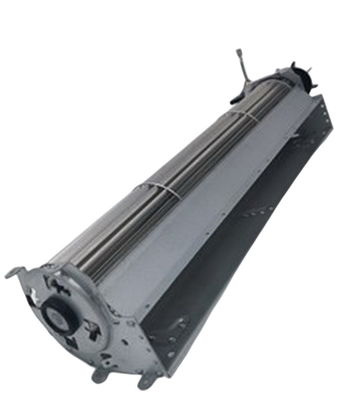

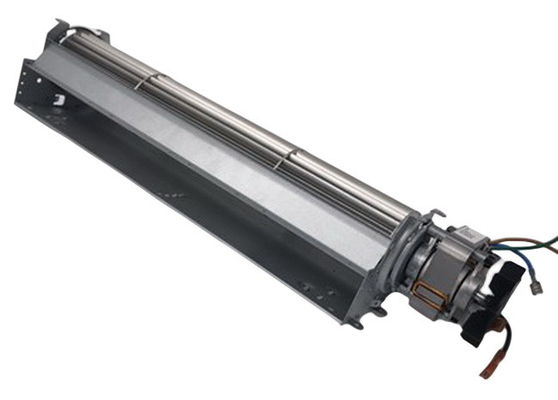

60mm China AC Cross flow Blowers Fan with 3-speed low-pressure laminar flow design
Production Feature :
1. A 60mm impeller, delivering high airflow with low noise levels.
2. Applicable in various fields, including food heating and fireplaces.
3. Driven by a C-FRAME shaded pole motor.
4. The motor can be mounted in any of the four positions.
5. Utilizes ball bearing structure, suitable for high-temperature environments and offering a long lifespan.
6. Multiple performance options available for selection.
7. designed with a self-cooling fan, which extends the motor's lifespan
8. 3- different fan speed settings.
Quick Review:
| Product Name: | 60mm China AC Cross Flow Blowers Fan With 3-speed Low-pressure Laminar Flow Design | Motor Type: | MH6019-19332 |
|---|---|---|---|
| Rated Voltage/Frequency: | 240v50hz | Current(A): | H: 0.3 M: 0.2 L:0.14 |
| Input Power(W): | H: 33 M: 25 L:20 | Speed(RPM): | H: 1650 M: 1200 L:950 |
| Hi-Pot TEST: | 1800vac50hz,3Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Thermally Protected: | TP |
| Wind Speed(m/s): | H:5 M: 3.5 L:3 | Air Volume(CFM): | H: 119 M: 90 L:70 |
| Start Voltage:: | 161V 50Hz | Application: | Pellet Stove,oven/lab Equipment |
60MM Cross flow Blower Performance
| Length of Wheel (mm) |
Air Flow at Static Pressure(CFM) | |||||
| 0 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | |
| 120 | 80 | 75 | 70 | 45 | 5 | 0 |
| 180 | 120 | 115 | 105 | 70 | 10 | 0 |
| 240 | 160 | 155 | 140 | 95 | 15 | 0 |
| 300 | 200 | 195 | 175 | 120 | 20 | 0 |
| 360 | 240 | 230 | 210 | 145 | 25 | 0 |
AIR FLOW CURVE
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
