24VDC 48VDC 85W Centrifugal Blower Fan For Air Purifier Blower Galvanized Housing

24VDC 48VDC 85W Centrifugal Blower Fan For Air Purifier Blower Galvanized Housing
24VDC 48VDC 85W Centrifugal Blower Fan For Air Purifier Blower Galvanized Housing 24VDC 48VDC 85W Centrifugal Blower Fan For Air Purifier Blower Galvanized Housing 24VDC 48VDC 85W Centrifugal Blower Fan For Air Purifier Blower Galvanized Housing 24VDC 48VDC 85W Centrifugal Blower Fan For Air Purifier Blower Galvanized Housing

Large Image :  24VDC 48VDC 85W Centrifugal Blower Fan For Air Purifier Blower Galvanized Housing

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: CE
Model Number: MH-DIG120-L12001F
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work days
Payment Terms: T/T
Supply Ability: 1000PCS/day

24VDC 48VDC 85W Centrifugal Blower Fan For Air Purifier Blower Galvanized Housing

Description
Product Name: DC 24/48VDC 85W Centrifugal Blower Fan For Air Purifier Galvanized Housing Rated Voltage/Frequency: DC24/48VDC
Current(A): 3.5/1.7A Input Power(W): 85
Output Speed(RPM): 2120 Hi-Pot TEST: 1500vac50Hz,1mA,1S
Insulation Class: F Agency: CE
Air Volume(CFM): 358 Application: Air Purifier
Bearing: Ball Bearing PST: 340Pa
Hgh Light: DC 24/48VDC 85W, Centrifugal Blower Fan, Air Purifier Galvanized Housing
High Light:

24VDC Centrifugal Blower Fan

,

48VDC Centrifugal Blower Fan

,

air purifier blower 85W

DC 24/48VDC 85W centrifugal blower fan for air purifier Galvanized housing

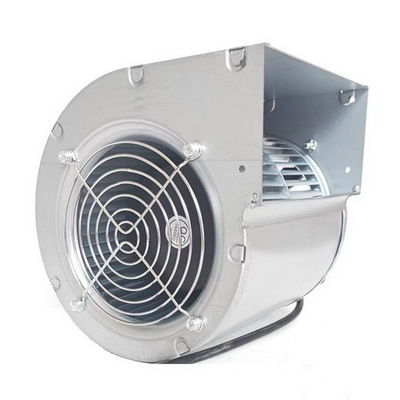

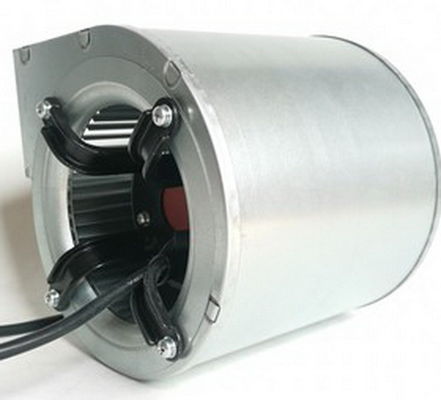

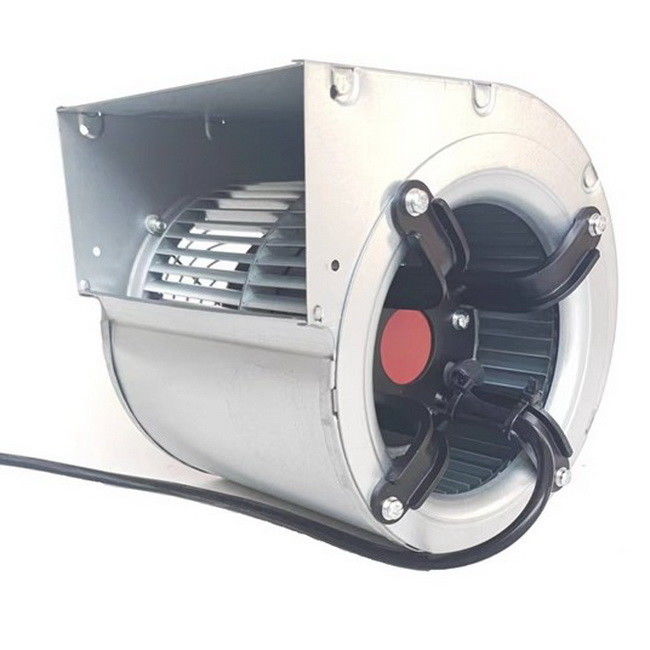

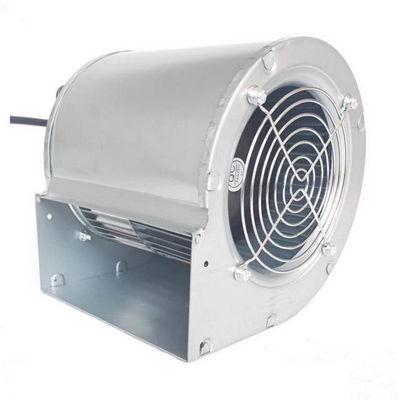

The blower fan is specifically designed for use in air purifiers. It operates on direct current (DC) power, specifically at 24 or 48 volts which is commonly used in electronic devices and systems.The impeller and the housing is made of galvanized steel which helps to protect the housing from corrosion and extends its lifespan.



Quick Review:



Product Name: DC 24/48VDC 85W Centrifugal Blower Fan For Air Purifier Galvanized Housing Rated Voltage/Frequency: DC24/48VDC
Current(A): 3.5/1.7A Input Power(W): 85
Output Speed(RPM): 2120 Hi-Pot TEST: 1500vac50Hz,1mA,1S
Insulation Class: F Agency: CE
Air Volume(CFM): 358 Application: Air Purifier
Bearing: Ball Bearing PST: 340Pa



24VDC 48VDC 85W Centrifugal Blower Fan For Air Purifier Blower Galvanized Housing 0
Production Description:



DC MOTOR

Protect method: Polarity Protection;Soft start

Locket-rotor protection

Over current protection

Over voltage protection

Technical features:0-10vdc/pwm speed control

PWM FREQUENCY:1-10KHZ

OPERATION MODE:S1

PROTECTION GRADE:IP55

TEMP S:-25℃+60℃

IMPELLER MATERIAL:Galvanized steel

HOUSING MATERIAL:Galvanized steel


AIR FLOW  CURVE

24VDC 48VDC 85W Centrifugal Blower Fan For Air Purifier Blower Galvanized Housing 1









FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
