Product Details:
|
| Product Name: | 45mmX300 High Air Volumn AC Cross Flow Blowers Fan 36W 0.55A 120VAC 60HZ | Motor Type: | MH6029-29598 |
|---|---|---|---|
| Rated Voltage/Frequency: | 120V 60Hz | Current（A): | 0.55 |
| Input Power（W）: | 36W | Speed（RPM): | 1600 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Start Voltage: | 81V 60Hz |
| Thermally Protected: | T.P | Wind Speed(m/s): | 6 |
| Air Volume（CFM): | 130 | Application: | Pellet Stove, OVEN |
| Agency: | UL | ||
| High Light: | 45mm X 300 high flow blower,high flow blower 36W,variable speed blower motor 60HZ |
||

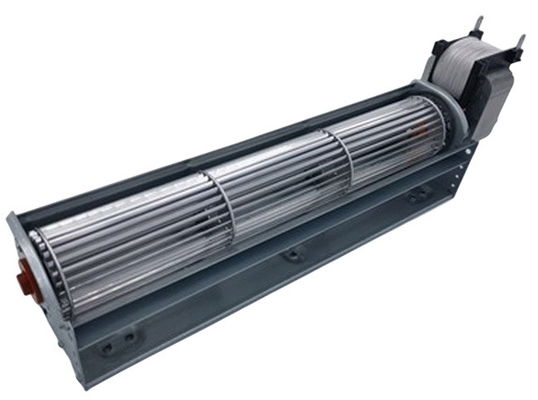

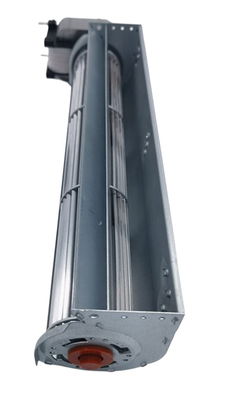

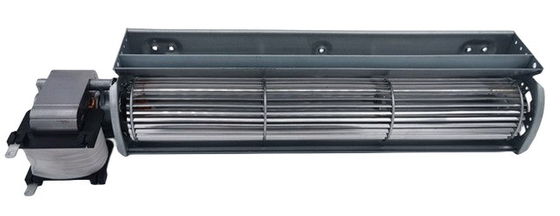

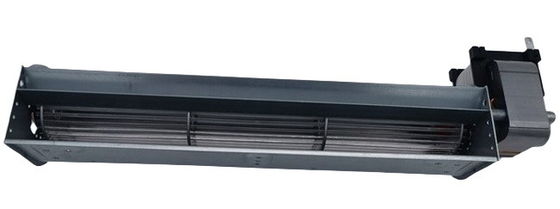

45mmX300 High air volumn AC Cross flow Blowers Fan 36W 0.55A 120VAC 60HZ
The blower is a high air volume, wide air delivery AC cross flow blower fan with dimensions of 45mm x 300mm. This design is to be provided a high volume of air, making it suitable for applications that require strong airflow for effective air circulation and cooling.It also offers a wide air delivery range, allowing for broad coverage and achieving uniform air distribution and circulation.
Quick Review:
| Product Name: | 45mmX300 High Air Volumn AC Cross Flow Blowers Fan 36W 0.55A 120VAC 60HZ | Motor Type: | MH6029-29598 |
|---|---|---|---|
| Rated Voltage/Frequency: | 120V 60Hz | Current(A): | 0.55 |
| Input Power(W): | 36W | Speed(RPM): | 1600 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Start Voltage: | 81V 60Hz |
| Thermally Protected: | T.P | Wind Speed(m/s): | 6 |
| Air Volume(CFM): | 130 | Application: | Pellet Stove, OVEN |
Air Flow:
Production Feature :
1. 45mmX300mm impeller, high airflow, low noise.
2. Innovative air flow system design reduces overall system costs and simplifies the entire unit structure.
3. Applied in various fields, including food heating and fireplaces.
4. Driven by a C-FRAME shaded pole motor.
5. The motor can be mounted in any of four positions.
6. Equipped with ball bearing structure suitable for high-temperature environments and long lifespan.
7. Multiple performance options available
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
