Product Details:
|
| Product Name: | 71W A 115V High Efficiency Big Air Volumn Convection Fan Motor Blower For Boiler | MH MODEL: | MH6038-38197 |
|---|---|---|---|
| Rated Voltage/Frequency: | 230Vac/50Hz | Current（A): | 0.62 |
| Input Power（W）: | 71W | Speed（RPM): | 1616 |
| Hi-Pot TEST: | 1800vac50hz,3Ma,1s | Bearing Type: | Sleeve Bearing |
| Insulation Class: | H | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 17 |
| Air Volume（CFM): | 113 | Application: | BOILER |
| High Light: | 71W A 115V Convection Blower Fan,Big Air Volumn Convection Blower Fan,Fan Motor Blower For Boiler |
||

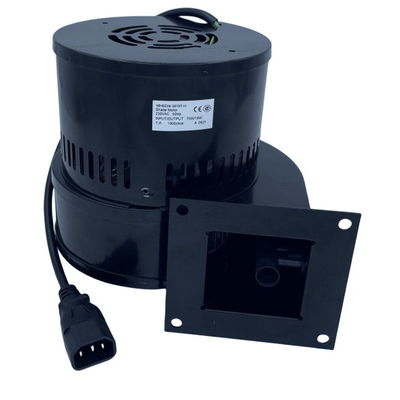

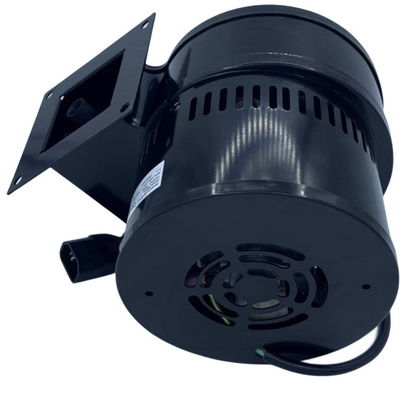

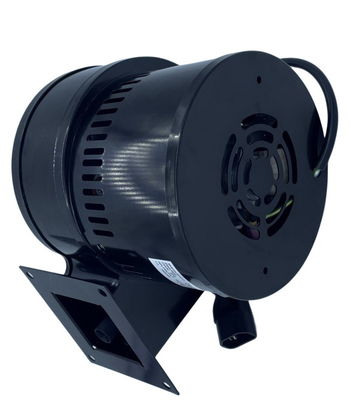

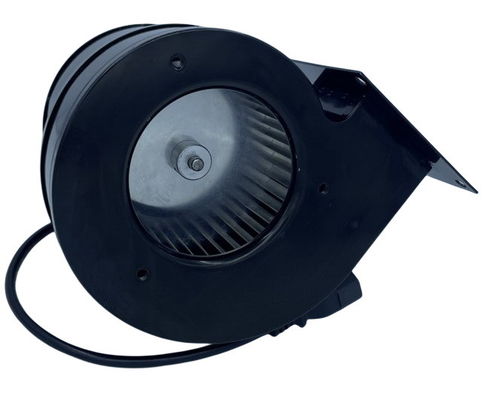

71W A 115V High Efficiency Big Air volumn Convection Fan Motor Blower for Boiler
This fan motor blower is designed to provide a large volume of air flow efficiently. It is specifically intended for use in boiler systems to enhance air convection and improve heat transfer. By increasing the airflow volume, the fan motor blower can improve the efficiency of the boiler and ensure even heat distribution throughout the system.
Quick Review:
| Product Name: | 71W A 115V High Efficiency Big Air Volumn Convection Fan Motor Blower For Boiler | MH MODEL: | MH6038-38197 |
|---|---|---|---|
| Rated Voltage/Frequency: | 230Vac/50Hz | Current(A): | 0.62 |
| Input Power(W): | 71W | Speed(RPM): | 1616 |
| Hi-Pot TEST: | 1800vac50hz,3Ma,1s | Bearing Type: | Sleeve Bearing |
| Insulation Class: | H | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 17 |
| Air Volume(CFM): | 113 | Application: | BOILER |
Production Features:
1. Be powered by C-frame shaded pole motor, high efficiency and large volume.
2. Quiet construction design.
3. Thermally Protected
4. Cooling fan for the motor design, long lasting.
5. Helps reduce costly energy bills.
6. Can handle up to 500°F air in housing.
7. Protective cover design for greater safety
8. Comprehensive black electrophoretic paint surface treatment
Air Flow Curve:
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Convecition Blower Air Fan, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team. We supply the core techniques service and professional guidance for customers. And our products are exported to Americas, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.
Thank you very much for viewing this page
Sincerely looking forward to our cooperation!
