40W 0.64A Cross Flow Blower Fan 60mm X 180mm AC High Temperature Variable Speed Blower Fan

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

40W 0.64A Cross Flow Blower Fan 60mm X 180mm AC High Temperature Variable Speed Blower Fan

40W 0.64A Cross Flow Blower Fan 60mm X 180mm AC High Temperature Variable Speed Blower Fan
40W 0.64A Cross Flow Blower Fan 60mm X 180mm AC High Temperature Variable Speed Blower Fan 40W 0.64A Cross Flow Blower Fan 60mm X 180mm AC High Temperature Variable Speed Blower Fan 40W 0.64A Cross Flow Blower Fan 60mm X 180mm AC High Temperature Variable Speed Blower Fan 40W 0.64A Cross Flow Blower Fan 60mm X 180mm AC High Temperature Variable Speed Blower Fan

Large Image :  40W 0.64A Cross Flow Blower Fan 60mm X 180mm AC High Temperature Variable Speed Blower Fan

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH6029-29582
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1500PCS/day

40W 0.64A Cross Flow Blower Fan 60mm X 180mm AC High Temperature Variable Speed Blower Fan

Description
Product Name: China 60mmX180mm 40W 0.64A AC High Temperature Cross Flow Blowers Fan Motor Type: MH6016-16584
Rated Voltage/Frequency: 115Vac/50Hz Current(A): 0.64
Input Power(W): 40W Speed(RPM): 2300
Hi-Pot TEST: 1500vac50hz,3Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: H Thermally Protected: TP
Wind Spee(m/s): 8.3 Start Voltage: 81V 60Hz
Air VolumeCFM): 130 Application: Pellet Stove,oven
Agency: UL
High Light:

40W Cross Flow Blower Fan

,

0.64A Cross Flow Blower Fan

,

2300RPM variable speed blower

China 60mmX180mm 40W 0.64A AC High Temperature Cross flow Blowers Fan



The 60x180mm cross blower fan provides a high airflow rate, delivers efficient air delivery with wide air supply, high air volume delivery.60mm x 180mm impeller, high air volume, low noise.  The typically  applications in various fields, including food heating or fireplace oven.



It is designed to operate in high-temperature environments and can withstand elevated temperatures.





Quick Review:


Product Name: 60mmX180mm 40W 0.64A AC High Temperature Cross flow Blowers Fan Motor Type: MH6016-16584
Rated Voltage/Frequency: 115Vac/50Hz Current(A): 0.64
Input Power(W): 40W Speed(RPM): 2300
Hi-Pot TEST: 1500vac50hz,3Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: H Thermally Protected: TP
Wind Speed(m/s): 8.3 Air Volume(CFM): 130
Start Voltage 81V 60HZ Agency: UL


40W 0.64A Cross Flow Blower Fan 60mm X 180mm AC High Temperature Variable Speed Blower Fan 0

40W 0.64A Cross Flow Blower Fan 60mm X 180mm AC High Temperature Variable Speed Blower Fan 1

Production Feature :
1. 60mm x 180mm impeller, high air volume, low noise.

2. Innovative air flow system design reduces overall system cost and simplifies the entire machine structure.

3. Applied in various fields, including food heating and fireplaces.

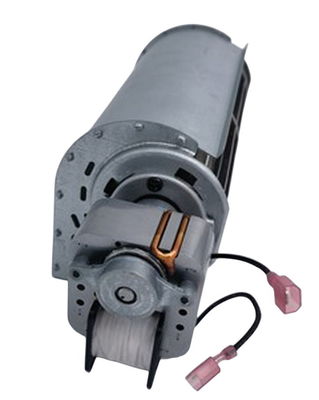

4. Driven by a C-FRAME shaded pole motor.

5. The motor can be mounted in any of the four positions.

6.  Equipped with ball bearing structure, suitable for high-temperature environments, and long lifespan.

AIR FLOW  CURVE

 40W 0.64A Cross Flow Blower Fan 60mm X 180mm AC High Temperature Variable Speed Blower Fan 2





Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.


Welcome your business chat and visit.



FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.



Thank you very much for viewing this page
Sincerely looking forward to our cooperation!
