Product Details:
|
Product Name: | China 45mm 27W 0.5A AC High Temperature Cross Flow Blowers Fan | Motor Type: | MH6016-16584 |
---|---|---|---|
Rated Voltage/Frequency: | 115Vac/50Hz | Current(A): | 0.50 |
Input Power(W): | 27W | Speed(RPM): | 2790 |
Hi-Pot TEST: | 1800vac50hz,3Ma,1s | Bearing Type: | NMB Ball Bearing |
Insulation Class: | H | Thermally Protected: | TP |
Wind Spee(m/s): | 9 | Start Voltage: | 81V 60Hz |
Air Volume(CFM): | 68 | Application: | Pellet Stove,oven |
Agency: | UL | ||
High Light: | 45mm ac fan motor,27W ac fan motor,blower motor replacement 50Hz |

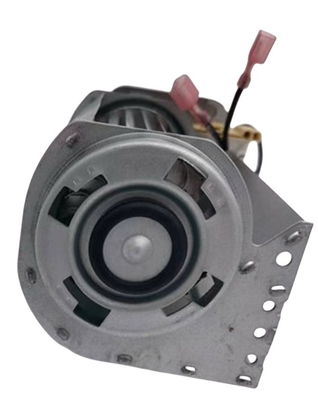

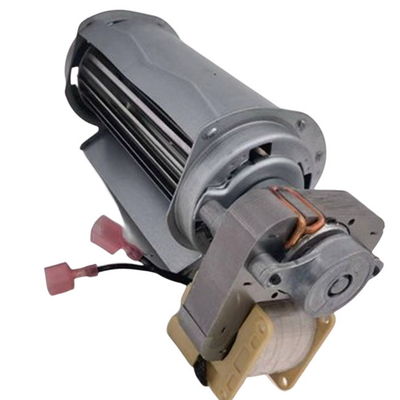

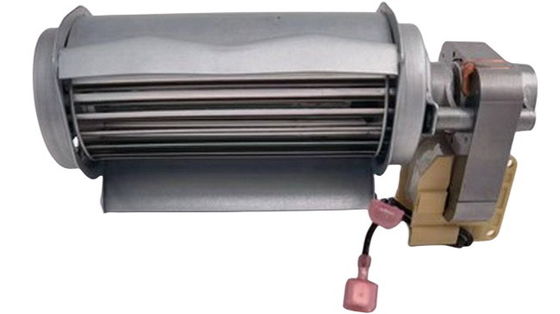

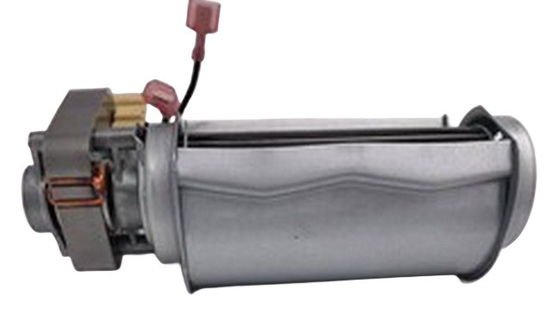

China 45mm 27W 0.5A AC High Temperature Cross flow Blowers Fan
The 45mm cross blower fan is compact in size, provides a high airflow rate, delivers efficient air delivery. It saves equipment space and operates with low noise levels. The typically applications in various fields, including food heating.
It is designed to operate in high-temperature environments and can withstand elevated temperatures.
Quick Review:
Product Name: | China 45mm 27W 0.5A AC High Temperature Cross flow Blowers Fan | Motor Type: | MH6016-16584 |
---|---|---|---|
Rated Voltage/Frequency: | 115Vac/50Hz | Current(A): | 0.5 |
Input Power(W): | 27W | Speed(RPM): | 2790 |
Hi-Pot TEST: | 1500vac50hz,3Ma,1s | Bearing Type: | NMB Ball Bearing |
Insulation Class: | H | Thermally Protected: | TP |
Wind Speed(m/s): | 9 | Air Volume(CFM): | 68 |
Start Voltage | 81V 60HZ | Agency: | UL/ETL |
Production Feature :
1. 45mm diameter impeller, saving equipment space and operating with low noise levels.
2. Typically applications in various fields, including food heating.
3. With C-FRAME shaded pole motor for driving.
4. The motor can be mounted in any of the four positions.
5. The fan incorporates a ball bearing structure, suitable for high-temperature environments, ensuring a long lifespan.
6. Multiple performance options are available to choose from.
AIR FLOW CURVE
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.
Welcome your business chat and visit.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
