Product Details:
|
| Product Name: | 60mmx300 AC Cross Flow Cooling Blowers Fan | Motor Type: | MH6022-22077 |
|---|---|---|---|
| Rated Voltage/Frequency: | 230v 50hz | Current（A): | 0.3 |
| Input Power（W）: | 36W | Speed（RPM): | 1900 |
| Hi-Pot TEST: | 1800vac50hz,3Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Start Voltage: | 81V 60Hz |
| Thermally Protected: | T.P | Wind Speed(m/s): | 5.5 |
| Air Volume（CFM): | 125 | Application: | Pellet Stove, OVEN, Lab Equipment |
| Agency: | CE/CCC/ETL | ||
| High Light: | 60mmX300 Cross Flow Blower Fan,Cross Flow Blower Fan 36W,cross flow fan motor 50HZ |
||

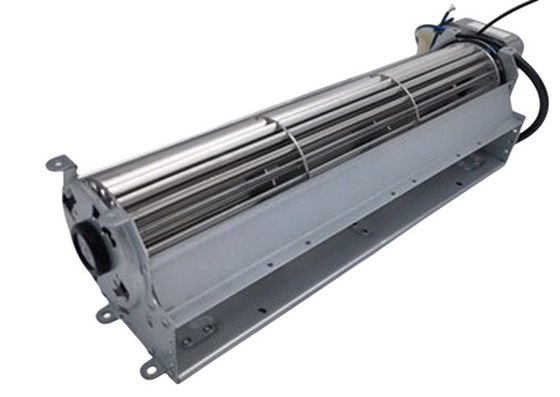

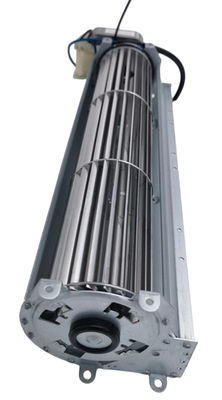

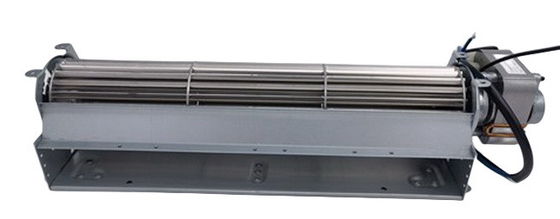

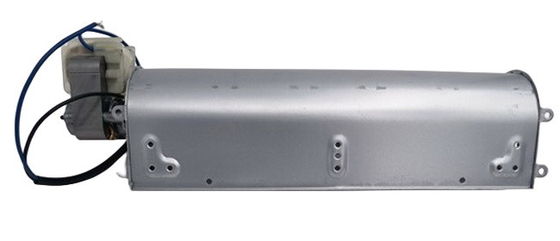

60mmX300 High air volumn AC Cross flow Blowers Fan 36W 0.3A 230VAC 50HZ
The blower is a high air volume, wide air delivery AC cross flow blower fan with dimensions of 60mm x 300mm. This design is to be provided a high volume of air, making it suitable for applications that require strong airflow for effective air circulation and cooling.It also offers a wide air delivery range, allowing for broad coverage and achieving uniform air distribution and circulation.
60MM Cross flow Blower Performance
| Length of Wheel (mm) |
Air Flow at Static Pressure(CFM) | |||||
| 0 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | |
| 120 | 80 | 75 | 70 | 45 | 5 | 0 |
| 180 | 120 | 115 | 105 | 70 | 10 | 0 |
| 240 | 160 | 155 | 140 | 95 | 15 | 0 |
| 300 | 200 | 195 | 175 | 120 | 20 | 0 |
| 360 | 240 | 230 | 210 | 145 | 25 | 0 |
Air Flow:
Production Feature :
1. 60mm x 300mm diameter impeller .
2. Application in various fields including food heating, fireplaces, and laboratory equipment .
3. Driven by C-FRAME shaded pole motor Motor.
4. Can be mounted in any of 4 positions .
5. Ball bearing structure for high-temperature environments and long lifespan .
6. Multiple performance options available.
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
