Product Details:
|
| Product Name: | 45mm AC Cross Flow Cooling Blowers Fan | Motor Type: | MH6016-16583 |
|---|---|---|---|
| Rated Voltage/Frequency: | 120v60hz | Current（A): | 0.4 |
| Input Power（W）: | 26W | Speed（RPM): | 2100 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Start Voltage: | 81V 60Hz |
| Thermally Protected: | Z.P | Wind Speed(m/s): | 7.5 |
| Air Volume（CFM): | 80 | Application: | Pellet Stove ,oven |
| Agency: | UL | ||
| High Light: | 45mm AC cross blower,cross blower 26W,cooling Blower Fan 0.4A |
||

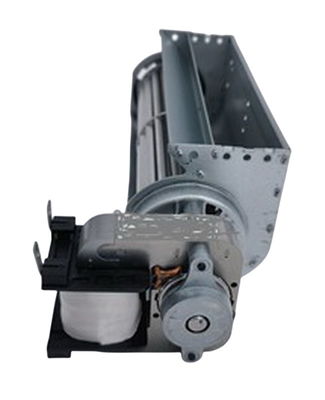

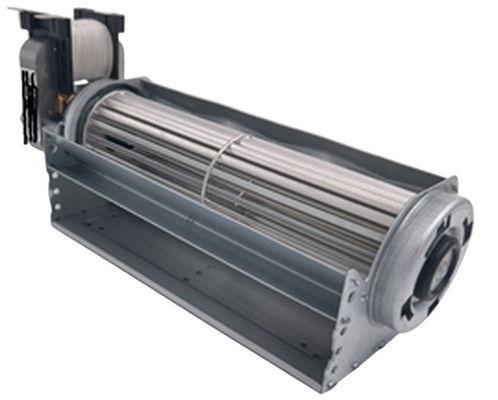

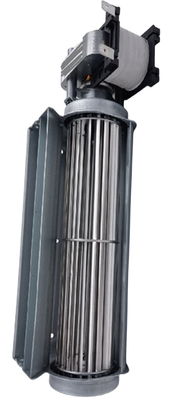

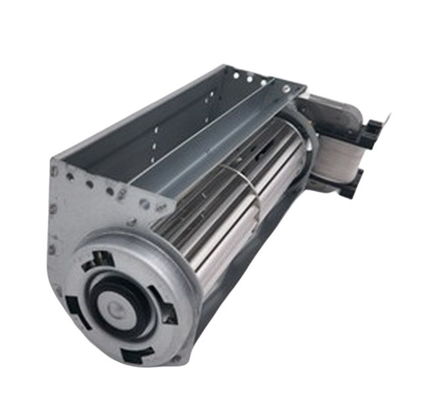

China 45mm AC Cross flow cooling Blowers Fan 26W 0.4A 120VAC 60HZ
The described blower fan is a 45mm AC crossflow cooling blower which operates on alternating current (AC) and has a power input rating of 26 watts and a current of 0.4 amps. It is designed to be powered by a 120VAC, 60Hz electrical supply. This fan is specifically designed for cooling applications. It features a crossflow design and is suitable for smaller applications or situations with space limitations.
Quick Review:
|
Model Type: MH6016-16583 Motor Type:AC Shade Pole Motor |
|||
| Rated Voltage/Frequency | 120Vac/60Hz | Hi-Pot TEST | 1500vac50hz,1Ma,1s |
| Current(A) | 0.4 | Bearing Type | NMB Ball Bearing |
| Input Power(W) | 26 | Insulation Class | H (Thermally Protected) |
| Speed(RPM) | 2100 | Agency Certification | UL |
| Wind Speed(m/s) | 7.5 | Air Volume(CFM) | 80 |
| Protected | ZP | Start Voltage | 81V |
Production Feature :
1. 45mm diameter impeller, saving equipment space, low noise.
2. Used in various fields, including food heating.
3. Driven by a C-FRAME shaded pole motor.
4. The motor can be mounted in any of the four positions.
5. Equipped with ball bearing structure, suitable for high-temperature environments, long lifespan.
6. Multiple performance options available.
Air Flow:
Package:
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
