Product Details:
|
| MH MODEL: | MH84-84564 | Product Name: | 140W 1.75A Pellet Stove Convection Fan Distribution Room Air Blower |
|---|---|---|---|
| Rated Voltage/Frequency: | 115Vac/60Hz | Current（A): | 1.75 |
| Input Power（W）: | 140W | Speed（RPM): | 2500 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | B | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 18 |
| Air Volume（CFM): | 153 | Application: | Pellet Stove;fireplace |
| High Light: | 140W pellet stove blower motor,1.75A pellet stove blower motor,heater fan motor 2500RPM |
||

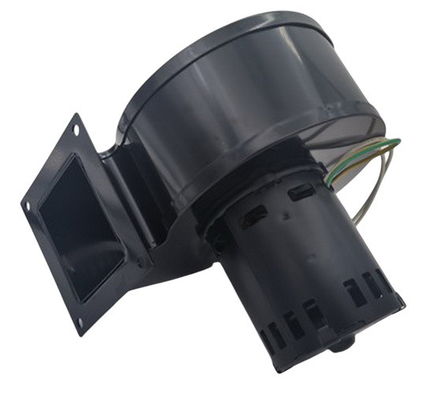

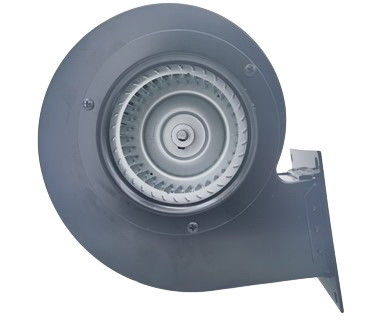

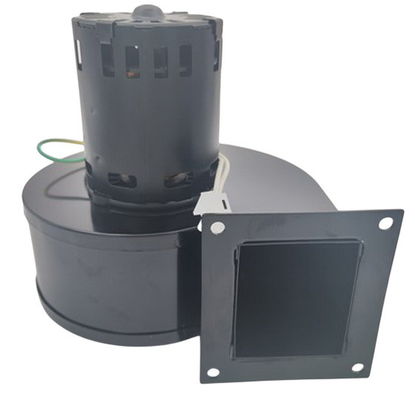

140W 1.75A Pellet Stove Convection Fan Distribution Room Air Blower UL agency
This blower fan has a power input of 140W and operates at a current of 1.75A, providing sufficient airflow for effective convection in pellet stoves.
The Pellet Stove Convection Fan is specifically designed to enhance the convection process in pellet stoves. It helps to distribute the heated air throughout the room, improving heat distribution and overall comfort.
That is a reliable and efficient solution for enhancing the convection process in pellet stoves. It helps to distribute warm air throughout the room, improving heat distribution and providing a comfortable living environment. With its UL certification and reliable performance, it ensures safe and efficient operation.
Quick Detail:
| MH MODEL: | MH84-84564 | Product Name: | 140W 1.75 Pellet Stove Convection Fan Distribution Room Air Blower |
|---|---|---|---|
| Rated Voltage/Frequency: | 115Vac/60Hz | Current(A): | 1.75 |
| Input Power(W): | 140W | Speed(RPM): | 2500 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | B | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 18 |
| Air Volume(CFM): | 153 | Application: | Pellet Stove;fireplace |
Production Features:
1. With 3.3-inch shaded pole motor,high efficiency and large air volume.
2. Double ball bearing designed, long lasting.

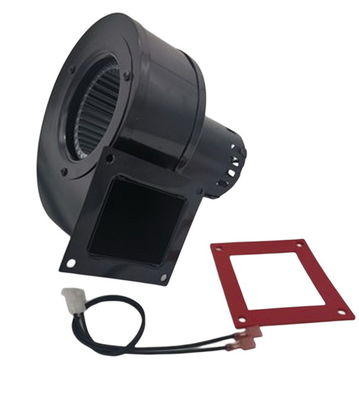

3. The blower comes with the complete assembly with gasket.
4. Powerful, Quiet, Energy Efficient .
5. Extra lead wire assembly comes with the blower.
Air Flow Curve:
Prodcution Main Application:
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Convecition Blower Air Fan, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
