Product Details:
|
| Product Name: | China 65W 115V Pellet Stove Exhaust Fan Draft Inducer Blower Motor | Model Type：: | MH84-84442 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115Vac/60Hz | Current（A): | .85 |
| Input Power（W）: | 65 | Speed（RPM): | 3190 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Insulation Class: | B |
| Bearing Type: | NMB Ball Bearing | Protect Method: | Thermally Protected |
| Wind Speed(m/s): | 14 | Air Volume( CFM): | 102 |
| Output Torque: | 9.5 Oz.in | Appliction: | PELLET STOVE |
| Agency: | UL | ||
| High Light: | 65W Draft Inducer Blowera,115V Draft Inducer Blower,60Hz pellet stove exhaust fan |
||

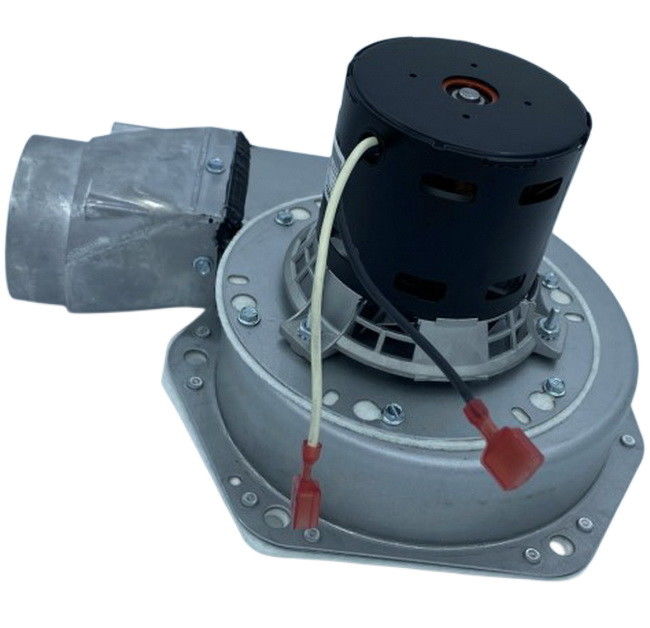

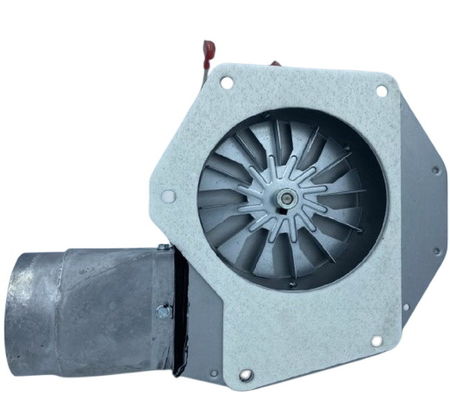

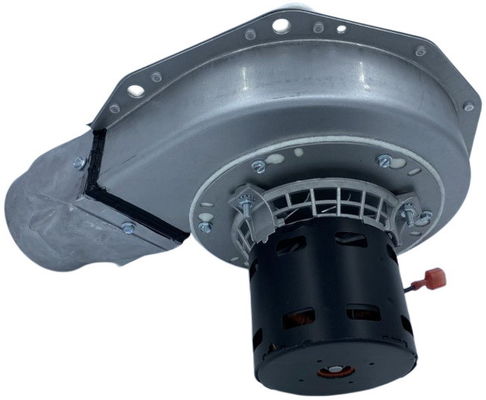

China 65W 115V Pellet Stove Exhaust Fan Draft Inducer Blower Motor
This motor serves as the strong exhaust fan draft inducer for pellet stoves. It helps to create the necessary draft to efficiently remove combustion byproducts from the stove and also functions as a blower, providing forced air circulation to distribute heat generated by the pellet stove. That is a reliable and efficient solution for pellet stoves. It helps to remove combustion byproducts and circulate heat, ensuring proper operation and effective heating.
Quick Detail:
| Model Type: MH84-84442 | |||
| Rated Voltage/Frequency: | 115Vac/60Hz | Current(A): | .85 |
| Input Power(W): | 65 | Speed(RPM): | 3190 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Insulation Class: | B |
| Bearing Type: | NMB Ball Bearing | Protect Method: | Thermally Protected |
| Agency: | UL | Wind Speed(m/s): | 14 |
| Air Volume( CFM): | 102 | Vibration(cm/s): | ＜=0.5 |
| Appliction: | PELLET STOVE | Output Torque: | 5 Oz.in |
For detail information, please contact us for catalogue, thanks!
Air Flow Curve:
Torque Curve:
Production Description:
Typically used strong exhaust in pellet stoves.
1. With 3.3-inch shaded pole motor, large torque,high efficiency and large air volume.
2. Double ball bearing designed, long lasting.
3. The exhaust blower comes with the complete assembly with gasket.
4. Powerful, Quiet, Energy Efficient .
5. Deep draw aluminized steel housing.
6. Variety of mounting patterns and options available.
Welcome your business chat and visit.
Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing drafr inducer exhaust fan motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
