Product Details:
|
Product Name: | Double Cooling Fan 45W 0.75A 230V Draft Inducer Blower Shade Pole Motor | Model Type:: | MH6035-35032 |
---|---|---|---|
Rated Voltage/Frequency: | 230V50Hz | Current(A): | .75 |
Input Power(W): | 45 | Speed(RPM): | 2350 |
Hi-Pot TEST: | 1800vac50hz,3Ma,1s | Insulation Class: | H |
Bearing Type: | NMB Ball Bearing | Wind Speed(m/s): | 14 |
Air Volume( CFM): | 103 | Appliction: | PELLET STOVE |
Agency: | UL/ETL | Start Voltage: | 81VAC60Hz |
Protect Method: | TP | ||
High Light: | 45W double cooling fan,0.75A furnace inducer motor,230V shade pole Motor |

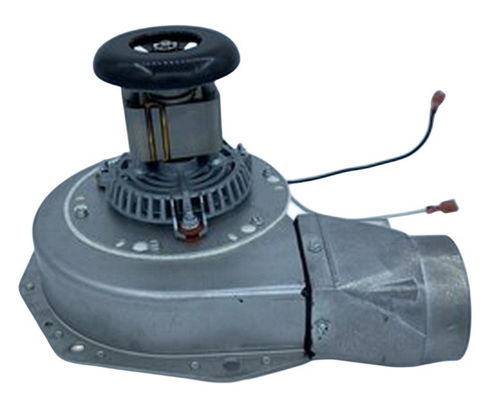

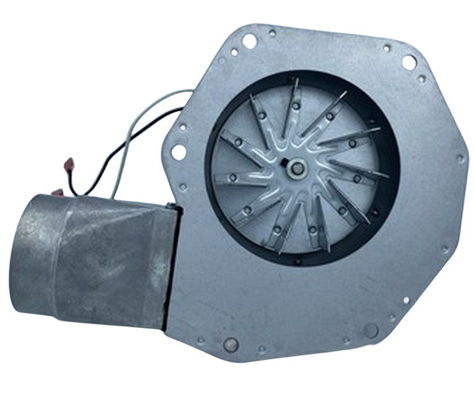

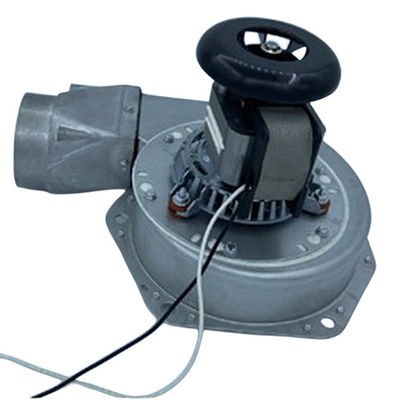

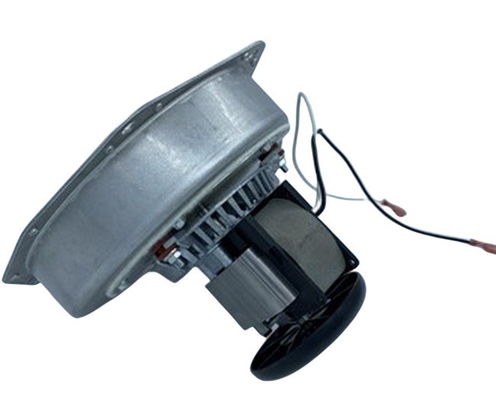

Double cooling fan 45W 0.75A 230V Draft Inducer Blower shade pole Motor
Production Description:
1. Driven by an AC hood-pole motor, effectively reducing noise.
2. Designed with high-temperature resistant ball bearings to ensure long-term operation.
3. Shock-resistant design for low-noise operation.
4. Optional additional components available to achieve various functions, such as speed signal Hall feedback.
5. Suitable for high-temperature gas emission. Can support up to three speed control levels.
6. Dual cooling fan design to extend motor lifespan.
Quick Detail:
Product Name: | Double Cooling Fan 45W 0.75A 230V Draft Inducer Blower Shade Pole Motor | Model Type:: | MH6035-35032 |
---|---|---|---|
Rated Voltage/Frequency: | 230V50Hz | Current(A): | .75 |
Input Power(W): | 45 | Speed(RPM): | 2350 |
Hi-Pot TEST: | 1800vac50hz,3Ma,1s | Insulation Class: | H |
Bearing Type: | NMB Ball Bearing | Wind Speed(m/s): | 14 |
Air Volume( CFM): | 103 | Appliction: | PELLET STOVE |
Agency: | UL/ETL | Start Voltage: | 81VAC60Hz |
Protect Method: | TP | ||
High Light: | Double Cooling Fan, 45W 0.75A 230V ,Draft Inducer Blower ,shade Pole Motor |
For detail information, please contact us for catalogue, thanks!
Air Flow Curve:
Typically used for strong smoke exhaust in particulate-wall furnaces.
Welcome your business chat and visit.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
