Product Details:
|
| Product Name: | High-temperature 65W 1.1A 115V Draft Inducer Blower Motor For Pellet Stove With Gasket | Model Type：: | MH6038-38179 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V60Hz | Current（A): | 1.1 |
| Input Power（W）: | 65 | Speed（RPM): | 3200 |
| Hi-Pot TEST: | 1500Vac50Hz,3mA,1S | Insulation Class: | H |
| Bearing Type: | NMB Ball Bearing | Wind Speed(m/s): | 15 |
| Air Volume( CFM): | 93 | Agency: | UL |
| Appliction: | PELLET STOVE | Feature: | Cast Aluminum Adapter Optional |
| Highlight: | 65W draft inducer motor,1.1A draft inducer motor,115V inducer fan motor |
||

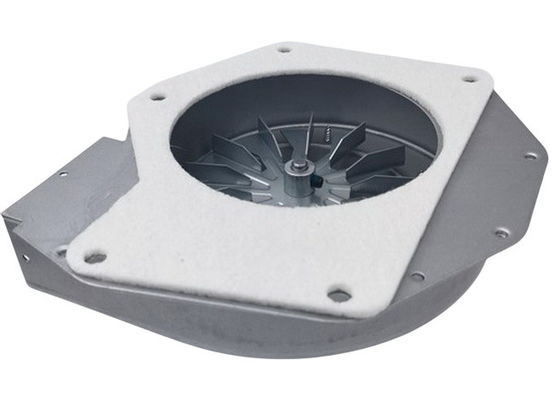

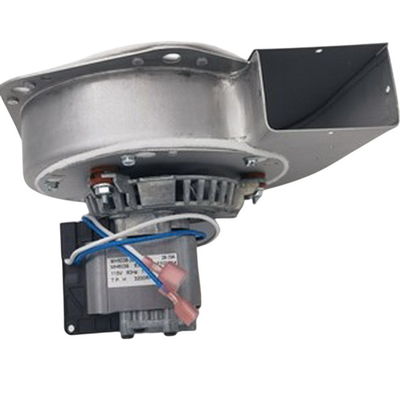

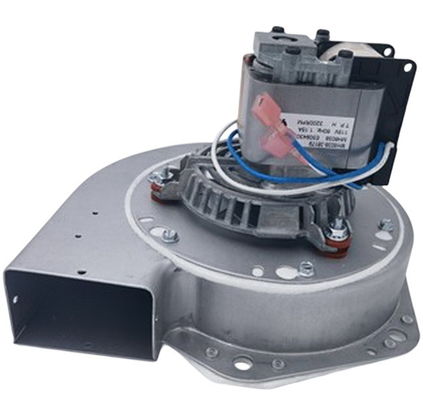

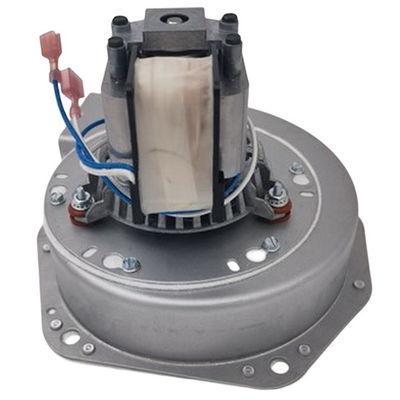

High-temperature 65W 1.1A 115V Draft Inducer Blower Motor for Pellet Stove with gasket
Production Description:
1. Standard performance of C-type hood-pole motor
2. Three high-temperature silicone gaskets for installation, effectively reducing noise and vibration
3. Motor self-cooling fan design, effectively extending motor lifespan
4. Aluminum permeation steel deep-drawn snail shell
5. Dual high-temperature resistant ball bearing design
6. Can achieve higher performance with 3.3-inch motor and external rotor motor
7. Typically used for induced draft and exhaust in high-temperature environments
8. Easy installation, often only requiring motor replacement, saving costs for customers
9. Optional cast aluminum adapter.
Quick Detail:
| Product Name: | High-temperature 65W 1.1A 115V Draft Inducer Blower Motor For Pellet Stove With Gasket | Model Type:: | MH6038-38179 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V60Hz | Current(A): | 1.1 |
| Input Power(W): | 65 | Speed(RPM): | 3200 |
| Hi-Pot TEST: | 1500Vac50Hz,3mA,1S | Insulation Class: | H |
| Bearing Type: | NMB Ball Bearing | Wind Speed(m/s): | 15 |
| Air Volume( CFM): | 93 | Agency: | UL |
| Appliction: | PELLET STOVE | Feature: | Cast Aluminum Adapter Optional |
For detail information, please contact us for catalogue, thanks!
Air Flow Curve:
Typically used for strong smoke exhaust in particulate-wall furnaces.
Welcome your business chat and visit.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
