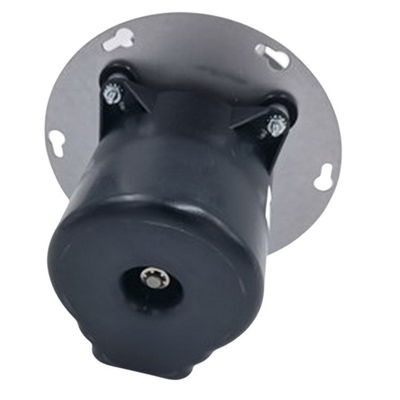

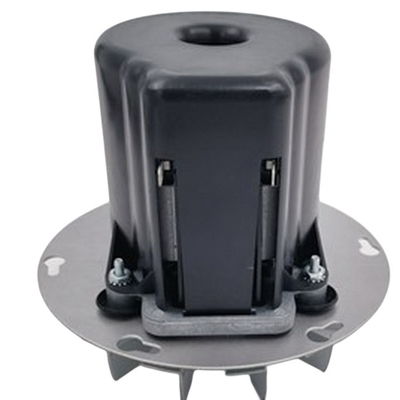

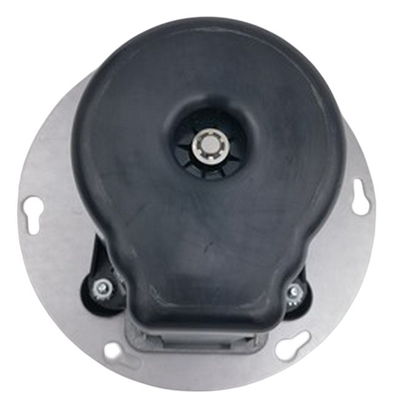

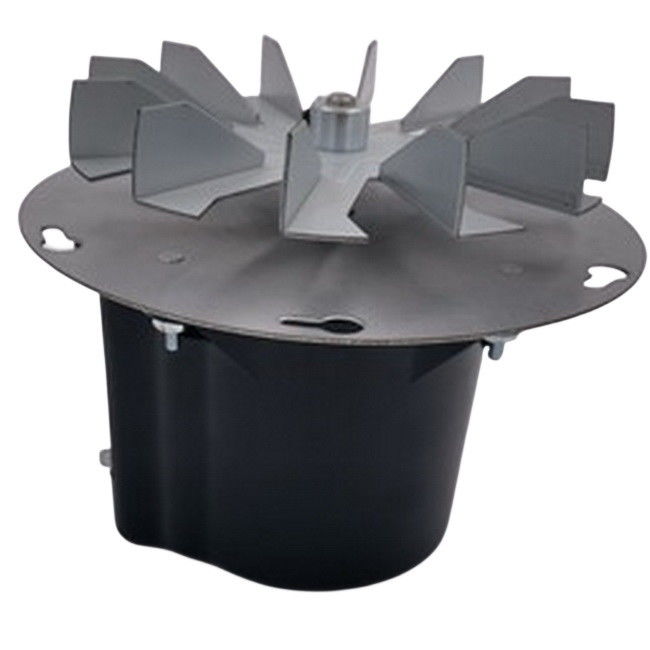

88W 1.45A Draft Inducer Blower Shade Pole Motor With Plastic Housing

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

88W 1.45A Draft Inducer Blower Shade Pole Motor With Plastic Housing

88W 1.45A Draft Inducer Blower Shade Pole Motor With Plastic Housing
88W 1.45A Draft Inducer Blower Shade Pole Motor With Plastic Housing 88W 1.45A Draft Inducer Blower Shade Pole Motor With Plastic Housing 88W 1.45A Draft Inducer Blower Shade Pole Motor With Plastic Housing 88W 1.45A Draft Inducer Blower Shade Pole Motor With Plastic Housing

Large Image :  88W 1.45A Draft Inducer Blower Shade Pole Motor With Plastic Housing

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL/ETL
Model Number: MH6038-38112
Payment & Shipping Terms:
Minimum Order Quantity: 360pcs
Price: Negotiable ( EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work days
Payment Terms: T/T
Supply Ability: 1200PCS/day

88W 1.45A Draft Inducer Blower Shade Pole Motor With Plastic Housing

Description
Product Name: 88W 1.45A Draft Inducer Blower Shade Pole Motor With Special Plastic Housing Model Type:: MH6038-38112
Rated Voltage/Frequency: 120V60Hz Current(A): 1.45
Input Power(W): 88 Speed(RPM): 2700
Hi-Pot TEST: 1500vac50hz,1Ma,1s Insulation Class: H
Bearing Type: NMB Ball Bearing Start Voltage: 81VAC60Hz
Protect Method: TP .Load Torque: 65mN.m@2700rpm
Appliction: PELLET STOVE Agency: UL/ETL
High Light:

88W Draft Inducer Blower

,

1.45A Draft Inducer Blower

,

shade pole Motor 60Hz

88W 1.45A Draft Inducer Blower shade pole Motor with Special plastic housing



Product Description:



1. With C-FRAME shaded pole motor, large torque,high efficiency

2. Double ball bearing designed, long lasting.

3. The exhaust blower comes with the complete assembly with gasket and housing.

4. Powerful, Quiet, Energy Efficient .

5. Variety of mounting patterns and options available.

6. Special plastic housing design for the motor



Quick Detail:

Product Name: 88W 1.45A Draft Inducer Blower Shade Pole Motor With Special Plastic Housing Model Type:: MH6038-38112
Rated Voltage/Frequency: 120V60Hz Current(A): 1.45
Input Power(W): 88 Speed(RPM): 2700
Hi-Pot TEST: 1500vac50hz,1Ma,1s Insulation Class: H
Bearing Type: NMB Ball Bearing Start Voltage: 81VAC60Hz
Protect Method: TP .Load Torque: 65mN.m@2700rpm
Appliction: PELLET STOVE Agency: UL/ETL



For detail information, please contact us for catalogue, thanks!



88W 1.45A Draft Inducer Blower Shade Pole Motor With Plastic Housing 0





Performance Curve:

88W 1.45A Draft Inducer Blower Shade Pole Motor With Plastic Housing 1

Typically used for strong smoke exhaust in particulate-wall furnaces.



88W 1.45A Draft Inducer Blower Shade Pole Motor With Plastic Housing 2

Welcome your business chat and visit.



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
