Product Details:
|
| Product Name: | Cross Flow Blowers Fan 55W UL Agency | Motor Type: | MH6029-29233 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115Vac/60Hz | Current（A): | 0.95 |
| Input Power（W）: | 55W | Speed（RPM): | 2400 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Start Voltage: | 81V 60Hz |
| Thermally Protected: | TP | Wind Speed(m/s): | 7.5 |
| Air Volume（CFM): | 161 | Application: | Pellet Fireplace, Lab Equipment ,oven |
| Agency: | UL | ||
| High Light: | 60mm cross blower fan,cross blower fan 55W,pellet stove blower motor 0.95A |
||

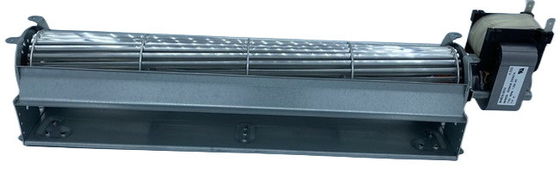

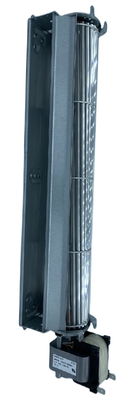

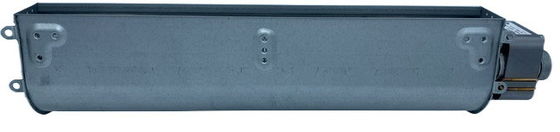

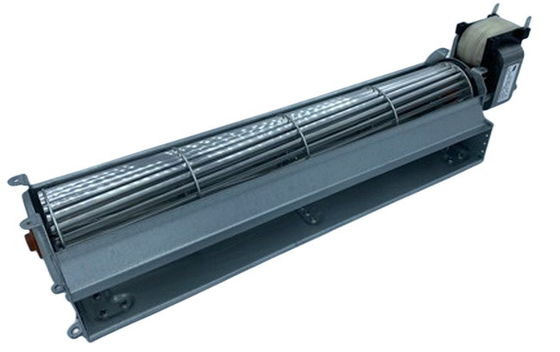

China 60mm AC Cross flow cooling Blowers Fan 55W 0.95A 115VAC 60HZ UL agency
The fan blower has a diameter of 60mm and operates with a power input of 55W and a current of 0.95A. It is suitable for cooling small to medium-sized equipment or systems. High air volume and wide air delivery, low-pressure laminar design which allows for efficient cooling and airflow distribution and low noise.
Quick Review:
|
Model Type: MH6029-29233 Motor Type:AC Shade Pole Motor |
|||
| Rated Voltage/Frequency | 115Vac/60Hz | Hi-Pot TEST | 1500vac50hz,1Ma,1s |
| Current(A) | 0.7 | Bearing Type | NMB Ball Bearing |
| Input Power(W) | 55 | Insulation Class | H (Thermally Protected) |
| Speed(RPM) | 2400 | Agency Certification | UL |
| Wind Speed(m/s) | 7.5 | Air Volume(CFM) | 161 |
| Protected | TP | Start Voltage | 81V |
Production Feature :
1. 60mm diameter impeller provides high airflow and low noise.
2. It is suitable for various applications, including food heating and cooling.
3. Driven by a C-FRAME shaded pole motor.
4. The motor can be mounted in any of 4 positions.
5. Equipped with ball bearings, suitable for high-temperature environments and long service life.
6. Multiple performance options are available.
The typical appilication:
Pellet Stove, OVEN, Lab Equipment
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
