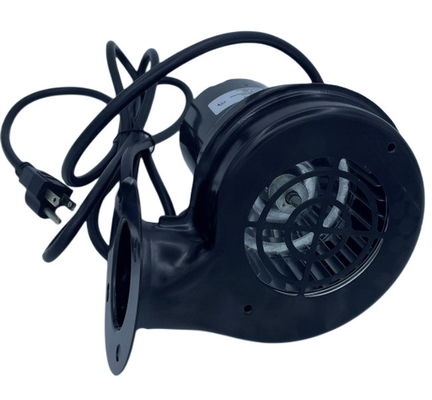

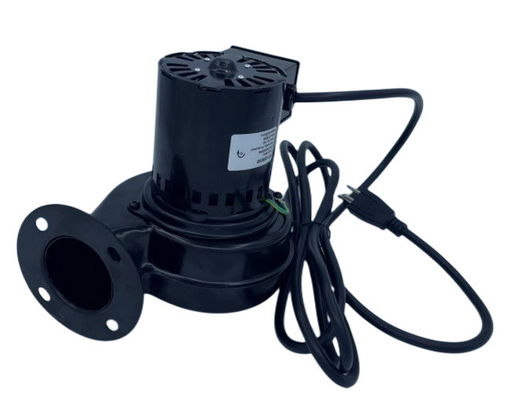

Wood Stove Exhausting Convection Blower Fan AC Shade Pole With 2 Speed Switch

Wood Stove Exhausting Convection Blower Fan AC Shade Pole With 2 Speed Switch
Wood Stove Exhausting Convection Blower Fan AC Shade Pole With 2 Speed Switch Wood Stove Exhausting Convection Blower Fan AC Shade Pole With 2 Speed Switch Wood Stove Exhausting Convection Blower Fan AC Shade Pole With 2 Speed Switch Wood Stove Exhausting Convection Blower Fan AC Shade Pole With 2 Speed Switch

Large Image :  Wood Stove Exhausting Convection Blower Fan AC Shade Pole With 2 Speed Switch

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH84-84533
Payment & Shipping Terms:
Minimum Order Quantity: 320PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work day
Payment Terms: T/T
Supply Ability: 1500pcs/day

Wood Stove Exhausting Convection Blower Fan AC Shade Pole With 2 Speed Switch

Description
MH MODEL: MH84-84533 Product Name: Wood/Pellet Stove AC Shade Pole Exhausting Convection Fan Blower With 2-speed Switch
Rated Voltage/Frequency: 115Vac/60Hz Current(A): High 1.0A; Low: 0.9A
Input Power(W): High:75W; Low: 70W Speed(RPM): High:2700RPM; Low: 2220RPM
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: Ball Bearing
Insulation Class: B Thermally Protected: TP
Wind Speed(m/s): High:12.5m/s; Low: 12m/s Air Volume(CFM): High: 80CFM;Low:68CFM
Application: Wood Stove/ Pellet Stove
High Light:

Wood Stove Convection Blower Fan

,

Exhausting Convection Blower Fan

,

wood stove blower motor 0.9A



Wood Stove AC shade pole Exhausting Convection Fan Blower with 2-speed switch



The fan blower is specifically designed for exhausting convection in wood or pellet stoves. It helps to remove smoke, gases, and fumes from the stove, improving air quality and safety.



2-speed blower with switch designed , allowing you to adjust the fan speed according to your preference or heating requirements. This provides flexibility and control over the air movement. It is a reliable and efficient solution for enhancing air circulation and exhaust in wood or pellet  stoves.



 Quick Detail:



MH MODEL: MH84-84533 Product Name: Wood Stove AC shade pole Exhausting Convection Fan Blower with 2-speed switch
Rated Voltage/Frequency: 115Vac/60Hz Current(A): High 1.0A; Low: 0.9A
Input Power(W):

High:75W; Low: 70W

Speed(RPM): High:2700RPM; Low: 2220RPM
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: Ball Bearing
Insulation Class: B Agency: UL
Thermally Protected: TP Wind Speed(m/s): High 12.5, Low 12
Air Volume(CFM): High: 80CFM;Low:68CFM Application: Pellet /wood Stove



Wood Stove Exhausting Convection Blower Fan AC Shade Pole With 2 Speed Switch 0



Production Features:

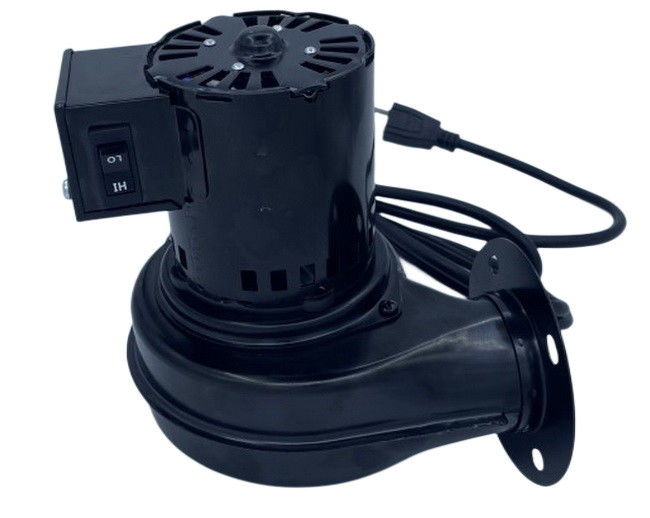

1. Equipped with a built-in switch design.
2. 2-speed design to meet different customer requirements.
3. Designed with an inlet protection net.
4. Driven by an efficient 3.3" motor, providing high efficiency and energy savings.
5. Treated with a black electrophoretic paint surface, ensuring rust resistance and aesthetic appeal.
6. Designed with an extended wire and plug.
7. The fan has a built-in thermal protection function, ensuring safety and reliability.

8. Typically used for wood or pellet stoves, the fan provides high-efficiency airflow to quickly warm large areas of a room.



Air Flow Curve:

Wood Stove Exhausting Convection Blower Fan AC Shade Pole With 2 Speed Switch 1



Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Convecition Blower Air Fan, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team.



We supply the core techniques service and professional guidance for customers. And our products are exported to Americas, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.

Wood Stove Exhausting Convection Blower Fan AC Shade Pole With 2 Speed Switch 2



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
