65MM High Air Volume Cross Flow Fan Motor 46W 120V 60Hz UL Agency

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

65MM High Air Volume Cross Flow Fan Motor 46W 120V 60Hz UL Agency

65MM High Air Volume Cross Flow Fan Motor 46W 120V 60Hz UL Agency
65MM High Air Volume Cross Flow Fan Motor 46W 120V 60Hz UL Agency 65MM High Air Volume Cross Flow Fan Motor 46W 120V 60Hz UL Agency 65MM High Air Volume Cross Flow Fan Motor 46W 120V 60Hz UL Agency 65MM High Air Volume Cross Flow Fan Motor 46W 120V 60Hz UL Agency

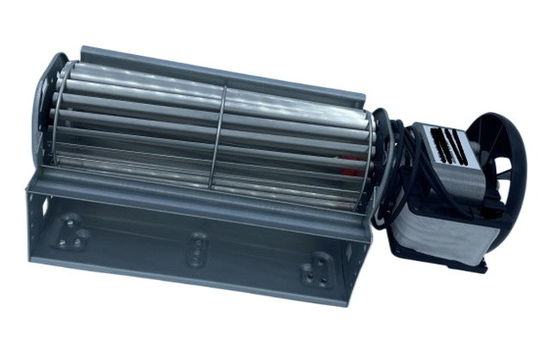

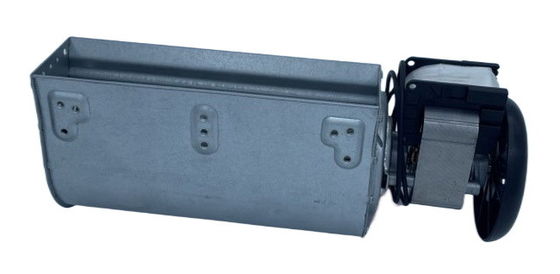

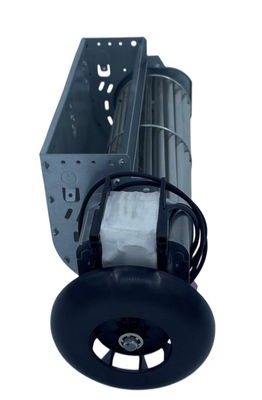

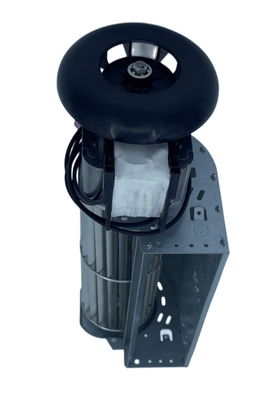

Large Image :  65MM High Air Volume Cross Flow Fan Motor 46W 120V 60Hz UL Agency

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH6029-29578
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1500PCS/day

65MM High Air Volume Cross Flow Fan Motor 46W 120V 60Hz UL Agency

Description
Motor Type: MH6029-29578 Product Name: 65MM High Air Volume Cross Flow Blower Fan For Fireplace
Rated Voltage/Frequency: 120Vac/60Hz Current(A): 0.7
Input Power(W): 46 Speed(RPM): 1825
Air Flow(CFM): 161 Wind Speed(m/s): 9
Bearing Type: NMB Ball Bearing Insulation Class: H
Protection Method: TP(THERMAL PROTECTOR) Agency: UL
Feature: 65mm Impeller High Light: 65MM Impeller , High Air Volume Cross Flow Blower Fan ,46W 120V 60Hz ,UL Agency
Application: FIREPLACE/ OVEN
High Light:

65MM cross flow fan motor

,

cross flow fan motor 46W 120V

,

high air flow motor

65MM high air volume cross flow blower fan 46W 120V 60Hz UL agency



This cross flow fan is designed to provide a wide air delivery range, ensuring that the airflow covers a larger area for effective cooling or ventilation and capable of delivering a high volume of airflow, ensuring efficient air circulation and cooling performance.



The blower fan is designed with a low pressure laminar design, which allows for a stable airflow with reduced turbulence and noise. This design also minimizes energy consumption and improves overall efficiency.



Overall, the AC cross flow blower fan with wide air delivery, high airflow delivery, and low pressure laminar design offers efficient and effective cooling or ventilation.It is suitable for various applications and has high energy efficiency.



Quick Review:



Model Type:MH6029-29578

Motor Type:AC Shade Pole Motor

Rated Voltage/Frequency 120Vac/60Hz Hi-Pot TEST 1500vac50hz,1MA,1s
Current(A)

0.7

Bearing Type NMB Ball Bearing
Input Power(W)

46

Insulation Class H
Speed(RPM)

1825

Safe Certification UL

Air Flow(CFM)

Wind Speed(m/s)

161 Protection method TP(THERMAL PROTECTOR)
9 Feature

65MM impeller



65MM crossflow impellers, delivering high airflow efficiently.

65MM High Air Volume Cross Flow Fan Motor 46W 120V 60Hz UL Agency 0

Can be customized, please contact us to get more information!



Production Features:


1. 65mm diameter impeller with a dual impeller design, providing high airflow with low noise.

2. The innovative airflow system design reduces the overall system cost and simplifies the structure of the entire unit.

3. The installation baseplate design ensures stable fan operation.

4. It is driven by a C-FRAME shaded pole motor. The fan has a dual-speed design.

5. With a ball bearing structure, it is suitable for high-temperature environments and offers a long lifespan.



65MM Cross flow Blower Performance:



Length of Wheel
(mm)
Air Flow at Static Pressure(CFM)
0 0.1 0.2 0.3
180 105 100 45 0
240 140 130 60 0
300 175 165 75 0

65MM High Air Volume Cross Flow Fan Motor 46W 120V 60Hz UL Agency 1



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
