Product Details:
|
| Product Name: | 85W 115V Pellet Stove Combustion Draft Inducer Blower Exhaust Fan | Model Type：: | MH84-84581 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115Vac/60Hz | Current（A): | 1.1 |
| Input Power（W）: | 85 | Speed（RPM): | 2450 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Insulation Class: | H |
| Bearing Type: | NMB Ball Bearing | Protect Method: | Thermally Protected |
| Wind Speed(m/s): | 13 | Air Volume( CFM): | 90 |
| Vibration(cm/s): | ＜=0.5 | Output Torque: | 5 Oz.in |
| Appliction: | PELLET STOVE | Agency: | UL |
| High Light: | 85W induced draft fans,115V induced draft fans,ac inducer motor 60Hz |
||

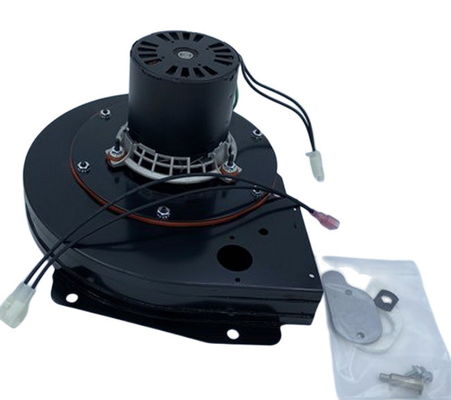

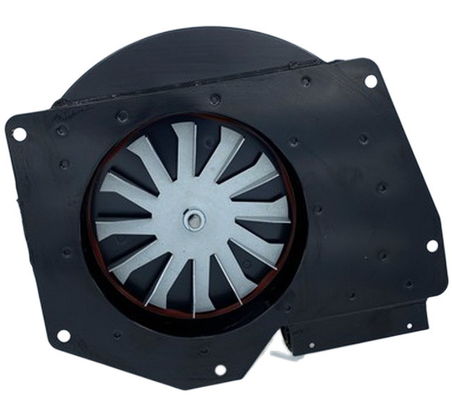

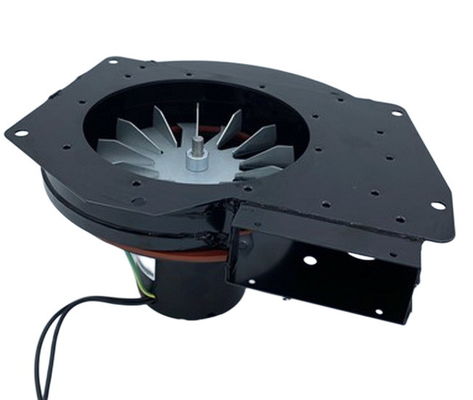

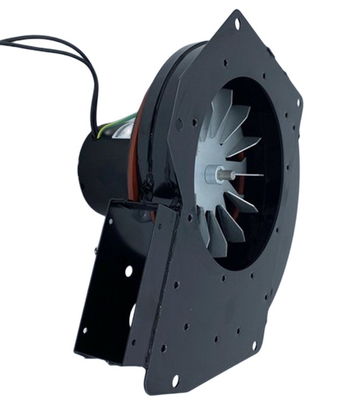

85W 115V Pellet Stove Combustion Draft Inducer Blower Exhaust Fan
The fan blower serves as the combustion draft inducer for the pellet stove, guiding the combustion gases for efficient burning and providing the necessary combustion air. Meanwhille as the exhaust fan for the pellet stove, helping to remove smoke and waste gases, ensuring safe and effective emissions during the combustion process.
This is a product designed specifically for pellet stoves. It offers high efficiency, reliability, and durability, helping to guide combustion and remove waste gases, ensuring safe and effective combustion.
Quick Detail:
| Model Type: MH84-84581 | |||
| Rated Voltage/Frequency: | 115Vac/60Hz | Current(A): | 1.1 |
| Input Power(W): | 85 | Speed(RPM): | 2450 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Insulation Class: | H |
| Bearing Type: | NMB Ball Bearing | Protect Method: | Thermally Protected |
| Agency: | UL | Wind Speed(m/s): | 13 |
| Air Volume( CFM): | 90 | Vibration(cm/s): | ＜=0.5 |
| Appliction: | PELLET STOVE | Output Torque: | 5 Oz.in |
For detail information, please contact us for catalogue, thanks!
Production Description:
Typically used in high temperature draft inducer applications such as Pellet Stove
1. Powered by 3.3" shaded pole motor.
2. Quiet,vibration-free design.
3. Can handle up to 500°F in housing.
4. Higher performance available with 3.3’’ diameter motor.
5. Four-piece sheet metal blower.
6. Ball bearing designed, lasting long running
7. Extra Lead Wire assembly included.
Welcome your business chat and visit.
Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing drafr inducer exhaust fan motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
