Product Details:
|
| Product Name: | High-temperature 60W 220V Draft Inducer Blower Motor For Bolier Exhaust | Model Type：: | MH6038-38030 |
|---|---|---|---|
| Rated Voltage/Frequency: | 220Vac/50Hz | Current（A): | 0.55 |
| Input Power（W）: | 60 | Speed（RPM): | 2350 |
| Hi-Pot TEST: | 1800Vac50Hz,3mA,1S | Insulation Class: | H |
| Bearing Type: | NMB Ball Bearing | Protect Method: | Thermally Protected |
| Wind Speed(m/s): | 17 | Air Volume( CFM): | 95 |
| Static Pressure: | -600pa | Start Voltage: | 168VAC |
| Appliction: | Bolier | Agency: | CE/CCC/ETL |
| High Light: | Draft Inducer Blower 60W,Draft Inducer Blower 220V,furnace draft fan 0.55A |
||

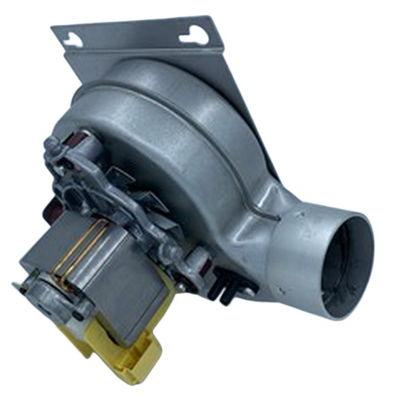

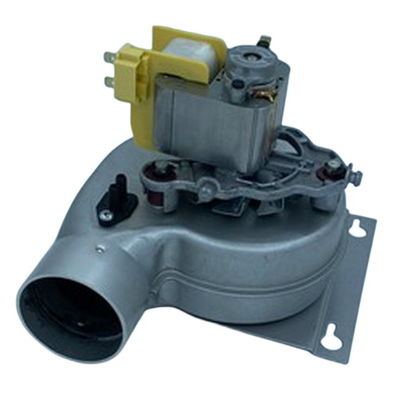

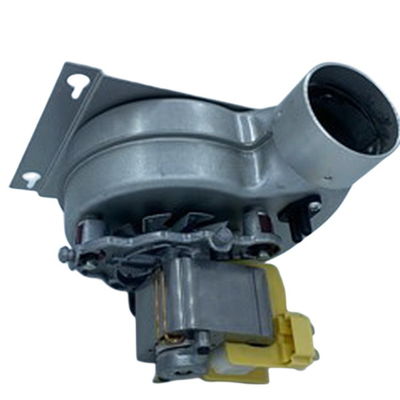

High-temperature 60W 220V Draft Inducer Blower Motor for Bolier Exhaust
This is a high-temperature exhaust blower motor with a power of 60W and a rated voltage of 220V 50hz, typically used in the exhaust system of boilers. It promotes air flow inside the boiler through forced ventilation, thereby improving combustion efficiency and exhaust performance. The motor adopts high-quality materials and design, with features such as high efficiency, reliability, and low noise, and can operate stably in high-temperature environments for long periods of time. In addition, the motor has the advantages of easy installation and maintenance, making it an ideal choice for boiler exhaust systems.
Quick Detail:
| Product Name: | High-temperature 60W 220V Draft Inducer Blower Motor For Bolier Exhaust | Model Type:: | MH6038-38030 |
|---|---|---|---|
| Rated Voltage/Frequency: | 220Vac/50Hz | Current(A): | 0.55 |
| Input Power(W): | 60 | Speed(RPM): | 2350 |
| Hi-Pot TEST: | 1800Vac50Hz,3mA,1S | Insulation Class: | H |
| Bearing Type: | NMB Ball Bearing | Protect Method: | Thermally Protected |
| Wind Speed(m/s): | 17 | Air Volume( CFM): | 95 |
| Static Pressure: | -600pa | Start Voltage: | 168VAC |
| Appliction: | Bolier | Agency: | CE/CCC/ETL |
For detail information, please contact us for catalogue, thanks!
Production Description:
1. This motor is driven by an AC shaded pole motor, effectively reducing noise.
2. The high-temperature resistant ball bearing design ensures long-term operation.
3. It has an anti-vibration design and runs with low noise.
4. Optional additional components are available to achieve various functions, such as speed signal Hall feedback.
5. It is suitable for high-temperature gas emissions.
6. Up to three speed levels can be designed.
Testing with thermocouple :
| Testing points |
Temperature before testing (℃) |
[℃] Temperature after 2 hours testing | Temprature rising(K) |
| Winding 1 | 15.6 | 55.3 | 39.7 |
| Winding 2 | 15.4 | 55.7 | 40.3 |
| Winding 3 | 15.2 | 59.1 | 43.9 |
| Ball bearing | 14.7 | 46.9 | 32.2 |
| Lamination | 14.9 | 39.2 | 24.3 |
Main Application:
Typically used in forced draft blowers for gas wall-mounted boilers and can operate efficiently at high temperatures.
Welcome your business chat and visit.
Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing drafr inducer exhaust fan motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
