50W 115V Pellet Stove Exhaust Fan Draft Inducer Motor Fan UL Agency

50W 115V Pellet Stove Exhaust Fan Draft Inducer Motor Fan UL Agency
50W 115V Pellet Stove Exhaust Fan Draft Inducer Motor Fan UL Agency 50W 115V Pellet Stove Exhaust Fan Draft Inducer Motor Fan UL Agency 50W 115V Pellet Stove Exhaust Fan Draft Inducer Motor Fan UL Agency 50W 115V Pellet Stove Exhaust Fan Draft Inducer Motor Fan UL Agency

Large Image :  50W 115V Pellet Stove Exhaust Fan Draft Inducer Motor Fan UL Agency

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH6035-35059
Payment & Shipping Terms:
Minimum Order Quantity: 160pcs
Price: Negotiable ( EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1200PCS/day

50W 115V Pellet Stove Exhaust Fan Draft Inducer Motor Fan UL Agency

Description
Product Name: 50W 115V Pellet Stove Exhaust Fan Draft Inducer Blower Motor UL Agency Model Type:: MH6035-35059
Rated Voltage/Frequency: 115Vac/60Hz Current(A): 0.75
Input Power(W): 50 Speed(RPM): 2850
Hi-Pot TEST: 1500vac50hz,1Ma,1s Insulation Class: H
Bearing Type: NMB Ball Bearing Protect Method: Thermally Protected
Agency: UL Wind Speed(m/s): 12
Air Volume( CFM): 102 Vibration(cm/s): <=0.5
Appliction: PELLET STOVE/FIREPLACE Output Torque: 5 Oz.in
High Light:

50W Pellet Stove Exhaust Fan

,

115V Pellet Stove Exhaust Fan

,

inducer motor fan UL agency

50W 115V Pellet Stove Exhaust Fan Draft Inducer Blower Motor UL agency

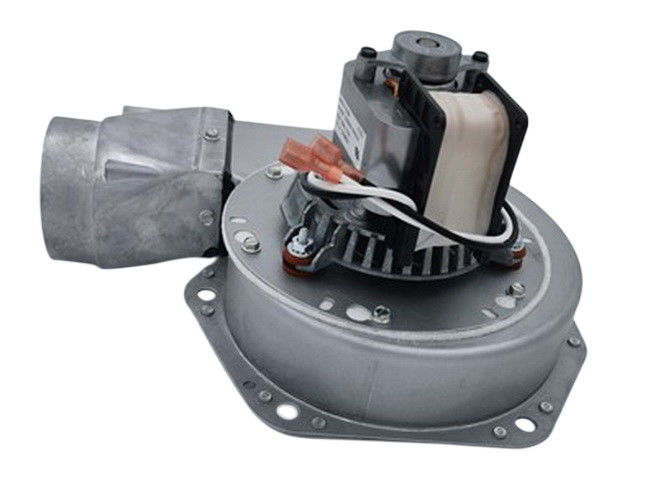

This is a 50W Pellet Stove Exhaust Fan Draft Inducer Blower Motor with a rated voltage of 115V 60Hz. It is usually installed on the exhaust pipe of a pellet fuel stove to increase air flow and thermal efficiency inside the stove through forced ventilation, thus improving combustion efficiency. The motor adopts high-quality materials and design, with features such as high efficiency, reliability, and low noise, and can operate stably in high-temperature environments for long periods of time. In addition, the motor has the advantages of easy installation and maintenance, making it an ideal choice for pellet stove exhaust systems.



Quick Detail:



Model Type:MH6035-35059
Rated Voltage/Frequency: 115Vac/60Hz Current(A): 0.75
Input Power(W): 50 Speed(RPM): 2850
Hi-Pot TEST: 1500vac50hz,1Ma,1s Insulation Class: H
Bearing Type: NMB Ball Bearing Protect Method: Thermally Protected
Agency: UL Wind Speed(m/s): 12
Air Volume( CFM): 102 Vibration(cm/s): <=0.5
Appliction: PELLET STOVE/FIREPLACE Output Torque: 5 Oz.in



For detail information, please contact us for catalogue, thanks!

50W 115V Pellet Stove Exhaust Fan Draft Inducer Motor Fan UL Agency 0

Product  Air Flow Curve:



50W 115V Pellet Stove Exhaust Fan Draft Inducer Motor Fan UL Agency 1



Production Description:

Typically used in high temperature draft inducer applications.



1. Standard performance with C-Frame SP motor.

2. Variety of mounting.

3. Quiet,vibration-free design.

4. Can handle up to 500°F in housing.

5. Higher performance available with 3.3’’ diameter motor.

4. Deep draw aluminized steel housing.



50W 115V Pellet Stove Exhaust Fan Draft Inducer Motor Fan UL Agency 2



Welcome your business chat and visit.



Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing drafr inducer exhaust fan motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
