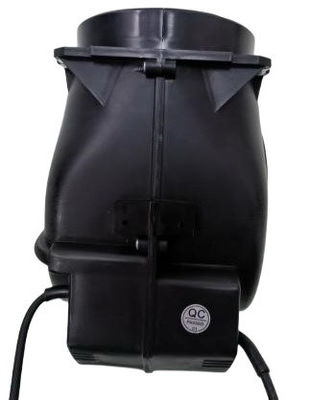

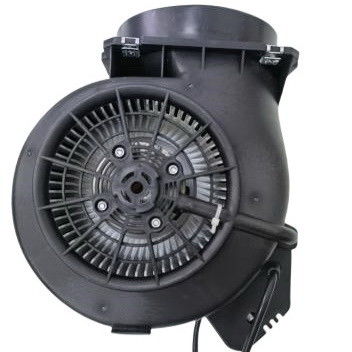

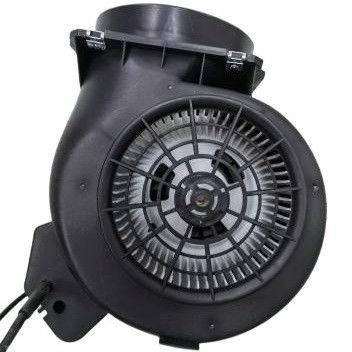

Black Plastic Shell Centrifugal AC Blower Fan For Cooker Hood Air Purifier

Black Plastic Shell Centrifugal AC Blower Fan For Cooker Hood Air Purifier
Black Plastic Shell Centrifugal AC Blower Fan For Cooker Hood Air Purifier Black Plastic Shell Centrifugal AC Blower Fan For Cooker Hood Air Purifier Black Plastic Shell Centrifugal AC Blower Fan For Cooker Hood Air Purifier Black Plastic Shell Centrifugal AC Blower Fan For Cooker Hood Air Purifier

Large Image :  Black Plastic Shell Centrifugal AC Blower Fan For Cooker Hood Air Purifier

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: CE
Model Number: MH-FS13-C155-241
Payment & Shipping Terms:
Minimum Order Quantity: 80PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30-35 work days
Payment Terms: T/T
Supply Ability: 1000PCS/day

Black Plastic Shell Centrifugal AC Blower Fan For Cooker Hood Air Purifier

Description
Product Name: AC Centrifugal Blower Fan For Range Cooker Hood Air Purifier With Big Airflow Rated Voltage/Frequency: 115Vac/60Hz
Current(A): H:1.04 MID:0.8 LOW:0.69 4TH:0.64 Input Power(W): 240/180/150/140w
Output Speed(RPM): H:1480 MID:1035 LOW:780 4TH:690 Hi-Pot TEST: 1800vac50hz,3Ma,1s
Capacitor(VAC/ µF): 500/4 Insulation Class: F
Agency: CE Thermally Protected: Yes
Air Volume(CFM): H:787 MID:478 LOW:355 4TH:269 Application: Kitchen Cooker Hood, Air Purifier
Hgh Light: Black Plastic Shell, AC Centrifugal Blower Fan, Cooker Hood Air Purifier ,big Airflow
Highlight:

Black plastic shell AC blower fan

,

115V AC blower fan

,

external rotor motors 140w

Black plastic shell AC centrifugal blower fan for cooker hood air purifier with big airflow



High versatility, High efficiency, Low noise, With large volume


Production Description:



1. PA66+25% Fiberglass Housing

2. Powered by AC motors, 24VDC/48VDC/310VDC motors

3. DC Motor is with Over Voltage protection and AC motor is with over-heat thermal protection

4. Single speed and multi-speeds available

5. IP44 protection blower optional

6. Operation temperature:-20--60℃

7. Application:Cooker Hood/air purifier



Specification:



Model Type:MH-FS13-C155-241

Motor Type:AC Motor

Rated Voltage/Frequency 115Vac/60Hz Hi-Pot TEST 1800vac50hz,3Ma,1s
Current(A)

H:1.04

MID:0.8

LOW:0.69

4TH:0.64



Protect Method Thermal Protect
Input Power(W)

H:

MID:

LOW:

4TH:



Capacitor(VAC/ µF) 500/4
Output Speed(RPM)

H:1480

MID:1035

LOW:780

4TH:690



Insulation Class F
Air Volume(m³/H)

H:787

MID:478

LOW:355

4TH:269

Agency Certification CE





Black Plastic Shell Centrifugal AC Blower Fan For Cooker Hood Air Purifier 0







Prodcution Dimension Drawing

Black Plastic Shell Centrifugal AC Blower Fan For Cooker Hood Air Purifier 1





AIR FLOW  CURVE



Black Plastic Shell Centrifugal AC Blower Fan For Cooker Hood Air Purifier 2




Our wind tunnel test systems provide accurate test data and analysis results with high accuracy, high stability and high reliability.









Black Plastic Shell Centrifugal AC Blower Fan For Cooker Hood Air Purifier 3







FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
