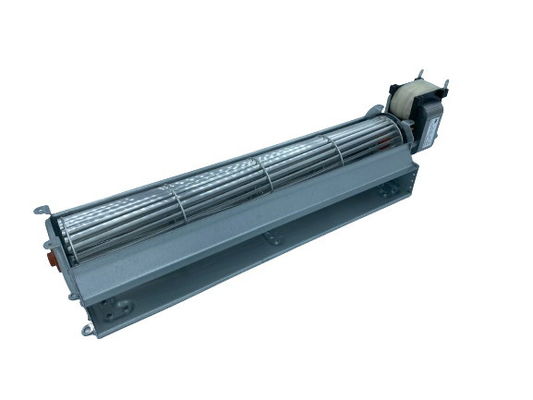

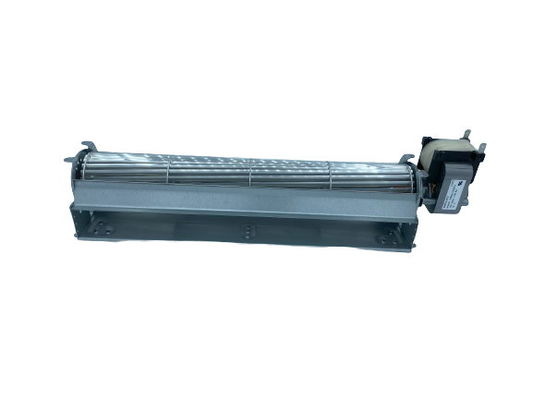

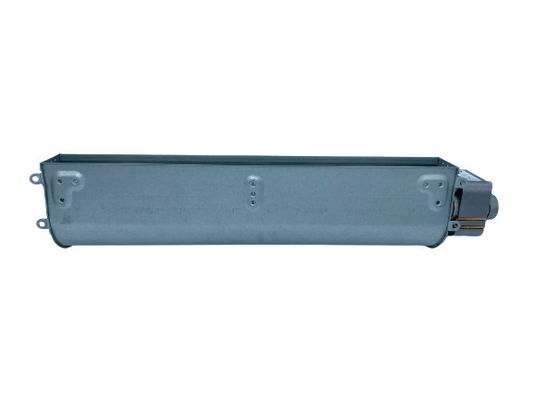

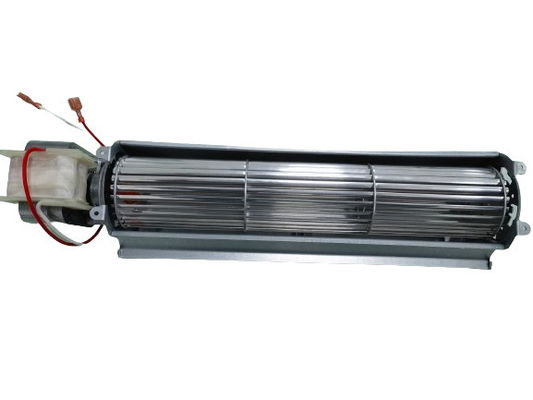

45W 0.7A AC Cross Flow Blower Fan 120VAC 60HZ UL Agency Industrial Blower Motor

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

45W 0.7A AC Cross Flow Blower Fan 120VAC 60HZ UL Agency Industrial Blower Motor

45W 0.7A AC Cross Flow Blower Fan 120VAC 60HZ UL Agency Industrial Blower Motor
45W 0.7A AC Cross Flow Blower Fan 120VAC 60HZ UL Agency Industrial Blower Motor 45W 0.7A AC Cross Flow Blower Fan 120VAC 60HZ UL Agency Industrial Blower Motor 45W 0.7A AC Cross Flow Blower Fan 120VAC 60HZ UL Agency Industrial Blower Motor 45W 0.7A AC Cross Flow Blower Fan 120VAC 60HZ UL Agency Industrial Blower Motor

Large Image :  45W 0.7A AC Cross Flow Blower Fan 120VAC 60HZ UL Agency Industrial Blower Motor

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH6029-29507(60x300mm)
Payment & Shipping Terms:
Minimum Order Quantity: 168PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30-35 work days
Payment Terms: T/T
Supply Ability: 1200PCS/day

45W 0.7A AC Cross Flow Blower Fan 120VAC 60HZ UL Agency Industrial Blower Motor

Description
Product Name: Cross Flow Blowers Fan 45W UL Agency Rated Voltage/Frequency: 120Vac/60Hz
Current(A): 0.7 Input Power(W): 45W
Motor Type: AC Shade Pole Motors Speed(RPM): 2100±150
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: H Agency: UL
Thermally Protected: Yes Wind Speed(m/s): ≥7
Air Volume(CFM): 162 Housing Backside (Mid ) Vibration(cm/s): ≤0.25
Stator Vibration(cm/s): ≤0.25 Application: Pellet Fireplace, Electric Heater
High Light:

45W Cross Flow Blower Fan

,

0.7A Cross Flow Blower Fan

,

60HZ industrial blower motor

China AC Cross flow Blowers Fan 45W 0.7A 120VAC 60HZ UL agency

MH Products offers Crossflow Blower Fans for a variety of industries. Crossflow Blower Fans are integrated into applications to prevent system overheating or to generate air circulation. Our Crossflow Blower Fans create a constant streamlined air flow. They can be mounted either vertically or horizontally.  Crossflow Blower Fans are an ideal fit for applications where space is limited.

MH Products’ Crossflow Blower Fans are designed for quiet operation and long service life. Our unique manufacturing capabilities allow us to offer a range of sizes, flow rates, insulation classifications and voltages. Contact us today to get started on a solution for your application.



Specification:


Model Type:MH6029-29507 (60x300mm)

Motor Type:AC Shade Pole Motor

Rated Voltage/Frequency 120Vac/60Hz Hi-Pot TEST 1500vac50hz,1Ma,1s
Current(A) 0.7 Bearing Type NMB Ball Bearing
Input Power(W) 45 Insulation Class H (Thermally Protected)
Speed(RPM) 2100±150 Agency Certification UL
Wind Speed(m/s) ≥7 Air Volume(CFM) 162
Stator Vibration(cm/s) ≤0.25 Housing backside (Mid ) Vibration(cm/s) ≤0.2



45W 0.7A AC Cross Flow Blower Fan 120VAC 60HZ UL Agency Industrial Blower Motor 0

Production Feature :

1. Mature and reliable shroud pole motor technology that can provide stable and reliable performance.

2. Low noise, large area air delivery, high air volume

3. With thermal protected, can automatically cut off the power supply when the motor overheats, protecting the motor and equipment from damage.

4. High-temperature resistant NMB ball bearings that can operate at high temperatures and are suitable for applications in high-temperature environments.

5. Multiple installation positions design for easy installation, improving its versatility and flexibility.

6. Typically used in experimental equipment, particle stoves, electric heaters, etc. and can provide stable air volume and air delivery area, ensuring the safety and comfort of the equipment and environment.


AIR FLOW  CURVE

 45W 0.7A AC Cross Flow Blower Fan 120VAC 60HZ UL Agency Industrial Blower Motor 1




Prodcution Package :



45W 0.7A AC Cross Flow Blower Fan 120VAC 60HZ UL Agency Industrial Blower Motor 2

The typical appilication:
Incubator

45W 0.7A AC Cross Flow Blower Fan 120VAC 60HZ UL Agency Industrial Blower Motor 3

Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.

The MH crossflow blower makes the air in the box evenly distributed in every corner.

Welcome your business chat and visit.
