Product Details:
|
| Product Name: | Convecition Blower Fan UL Agency Thermally | Rated Voltage/Frequency: | 120Vac/60Hz |
|---|---|---|---|
| Current（A): | 1.3 | Input Power（W）: | 75W |
| Speed（RPM): | 3050±150 | Hi-Pot TEST: | 1500vac50hz,1Ma,1s |
| Bearing Type: | NMB Ball Bearing | Insulation Class: | H |
| Agency: | UL | Thermally Protected: | YES |
| Wind Speed(m/s): | ≥16 | Air Volume（CFM): | 69 |
| Application: | Hi-Temp. Oven/ Heat Preservation Meal Car Equipment | ||
| High Light: | Convection Blower Fan 120vac,Convection Blower Fan 50Hz,air blower motor 75W |
||

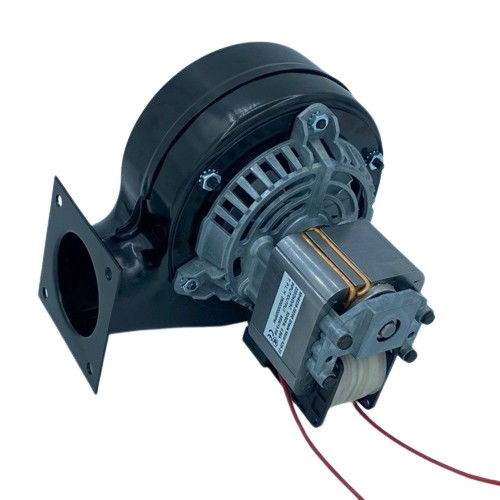

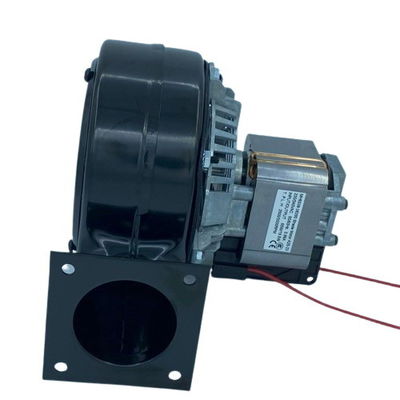

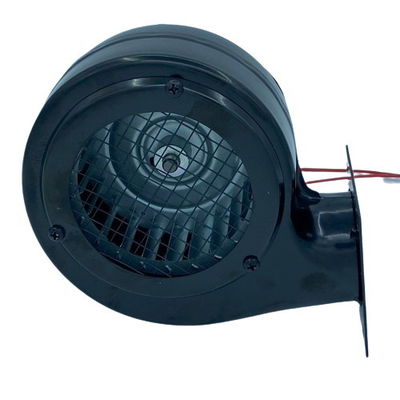

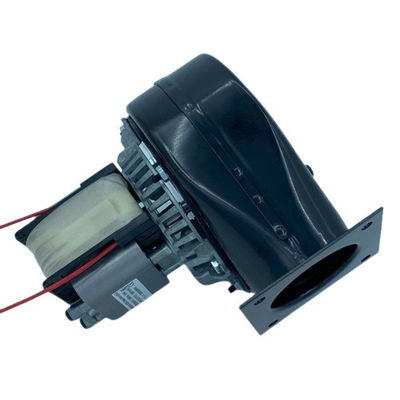

Convecition Blower Air Fan 120vac 50Hz 75W UL Agency Thermally Protected
This Convection blower is also referred to as the Room Blower. It blows air through the exhaust plennum and through the openings on the front of the stove to provide the heat to your room.
Production Advantage:
Mature and reliable shaded pole motor technology
• Large air volume centrifugal impeller
• Thermal protector protection method
• High temperature resistant NMB ball bearings
• Inlet protection design with protective net
• Typically used in high temperature ovens and insulated food cars
• High temperature resistant wires with special fluorine insulation material selecte
Specification:
|
Model Type:MH6038-38291 Motor Type:AC Shade Pole Motor |
|||
| Rated Voltage/Frequency | 120Vac/60Hz | Hi-Pot TEST | 1500vac50hz,1Ma,1s |
| Current(A) | 1.3 | Bearing Type | NMB Ball Bearing |
| Input Power(W) | 75 | Insulation Class | H (Thermally Protected) |
| Speed(RPM) | 3050±150 | Agency Certification | UL |
| Wind Speed(m/s) | ≥16 | Air Volume(CFM) | 69 |
CFM Curve for refer:
Stable pressure/air flow characteristic curves, good efficiency and low noise level
Prodcution Package :
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Convecition Blower Air Fan, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
