Product Details:
|
| Product Name: | IEC IP66 Stainless Motor Drive Conveyor With Stainless Gearbox For Food Industry Electric Motor | Model Type：: | Industrial Motor |
|---|---|---|---|
| Speed（RPM)（W）: | 1745/1450 | Rated Voltage/Frequency: | 230-400/256-460 |
| Output KW: | 1.1-1.5 | Insulation Class: | F |
| Thermally Protected: | NO | Frame: | IEC90 |
| Type: | Three-phase | IP CLASS: | IP66,IP69K |
| Mounting: | B3,B5,B14,B35,B34 | S.F: | 1.0 |
| Duty: | S1 (Cont.) | Agency: | UL |
| Appliction: | Food Machine | Fequency: | 50/60Hz |
| Cooling Type: | TEFC/TENV | Efficiency:: | IE 5, IE3 |
| Material: | SS304 | Speed: | 2P,4P,6P |
| High Light: | IEC Stainless Steel Motor,IP66 Stainless Steel Motor,direct drive motor 1745RPM |
||

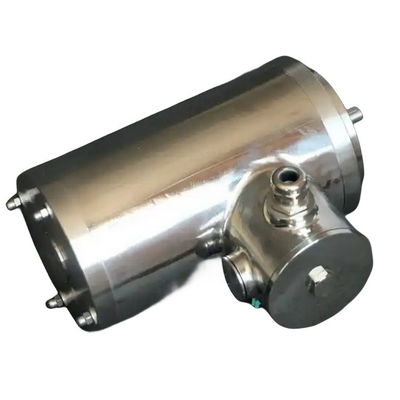

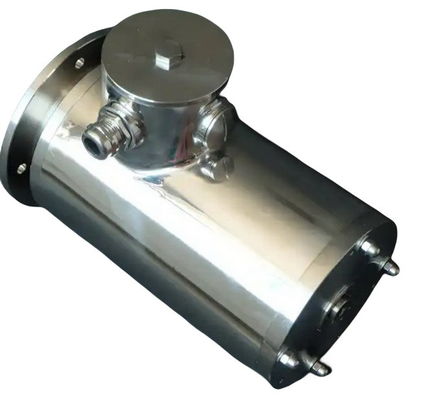

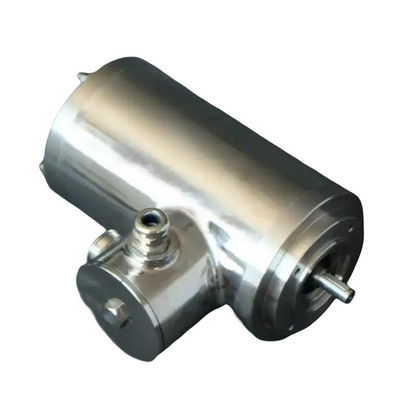

IEC IP66 Stainless motor drive conveyor with stainless gearbox for food industry electric motor
MH motors' Premium Efficient Stainless Steel motors feature an IP69K rating for complete protection from water, dust, and oil. Additional features include horsepower ratings from 1/3 to 20 HP, a round welded junction box with epoxy potted leads, and a 304 stainless steel frame, end bracket, junction box, and hardware. These continuous duty, premium efficient motors are ideal for use in food and chemical processing plants, pharmaceutical applications, and other environments where corrosion-resistant, watertight motors are required.
Quick Details
| Product Name: | IEC IP66 Stainless Motor Drive Conveyor With Stainless Gearbox For Food Industry Electric Motor | Model Type:: | Industrial Motor |
|---|---|---|---|
| Speed(RPM)(W): | 1745/1450 | Rated Voltage/Frequency: | 230-400/256-460 |
| Output KW: | 1.1-1.5 | Insulation Class: | F |
| Thermally Protected: | NO | Frame: | IEC90 |
| Type: | Three-phase | IP CLASS: | IP66,IP69K |
| Mounting: | B3,B5,B14,B35,B34 | S.F: | 1.0 |
| Duty: | S1 (Cont.) | Agency: | UL |
| Appliction: | Food Machine | Fequency: | 50/60Hz |
| Cooling Type: | TEFC/TENV | Efficiency:: | IE 5, IE3 |
| Material: | SS304 | Speed: | 2P,4P,6P |
The IEC SST rated range we can provided:
|
No
|
Frame size
|
Power (kw)
|
Mounted
|
protection
|
|
1
|
63
|
0.18kw
|
B3, B5, B14, B34, B35
|
IP66, IP69K
|
|
2
|
71
|
0.25kw, 0.37kw
|
||
|
3
|
80
|
0.55kw, 0.75kw
|
||
|
4
|
90
|
1.1kw, 1.5kw
|
||
|
5
|
100
|
2.2kw, 3.0kw
|
||
|
6
|
112
|
4.0kw
|
||
|
7
|
132
|
5.5kw, 7.5kw
|
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
