Product Details:
|
| Product Name: | NEMA 56C TEFC Three Phase Washdown Stainless Steel Motor IP55 1HP 1745RPM | Model Type：: | MH56C4-750WSST |
|---|---|---|---|
| Rated Voltage/Frequency: | 208-230/460V 60HZ | FLA Current（A): | 4-3.8/1.9 |
| Output HP: | 1.0 | Speed（RPM)（W）: | 1745 |
| Insulation Class: | F | Thermally Protected: | NO |
| Frame: | 56C Or 56 ,140TC, 140TC | IP CLASS: | IP55 |
| Mounting: | Rigid Base Or C Flange | S.F: | 1.15 |
| Duty: | Cont. | Agency: | CSA |
| Appliction: | Washdown, Food And Chemical Processing Plants | ||
| Highlight: | NEMA 56C Stainless Steel Motor,TEFC Stainless Steel Motor,three phase motor IP55 |
||

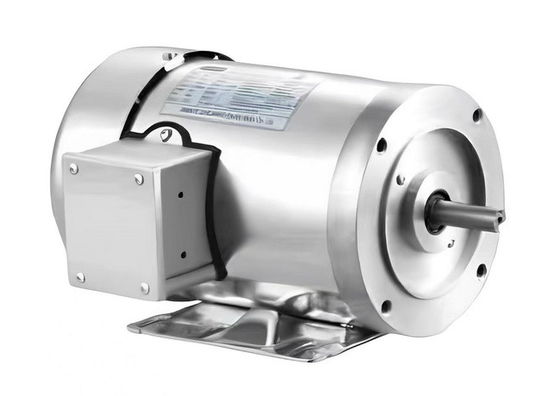

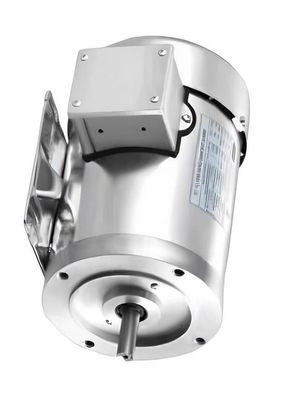

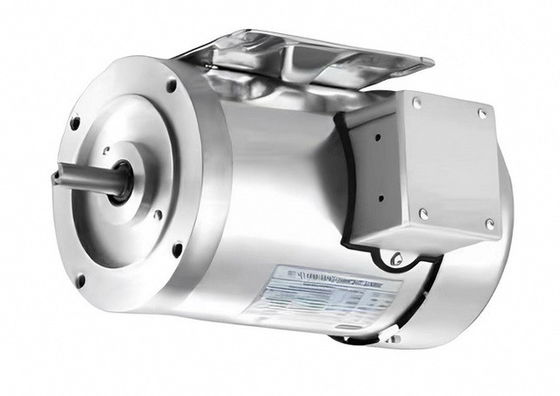

NEMA 56C TEFC Three Phase washdown stainless steel motor IP55 1HP 1745RPM
Features:
Frame of stainless steel ,ball bearing construction
Totally Enclosed fan cooled
Nema service factor
Reversible rotation
Invert Duty magnet wire can be choosed as demand.
| MH-Model | HP | RPM | FRAME | Volts | HZ | SF | Full load AMPS | INSL. CLASS | THERMALLY PROTECTED | Duty | ENCL |
| MH56C4-250SST | 1/3 | 1725 | 56C | 208-230/460 | 60 | 1.15 | 1.7-1.6/0.8 | F | NO | Cont. | TEFC |
| 3450 | 208-230/460 | 1.6-1.5/0.8 | |||||||||
| MH56C4-370SST | 1/2 | 1725 | 56C | 208-230/460 | 60 | 1.15 | 2.2-2.0/1.0 | F | NO | Cont. | TEFC |
| 3450 | 208-230/460 | 2.3-2.2/1.1 | |||||||||
| MH56C4-550SST | 3/4 | 1725 | 56C | 208-230/460 | 60 | 1.15 | 3.0-2.8/1.4 | F | NO | Cont. | TEFC |
| 3450 | 208-230/460 | 3.0-2.9/1.45 | |||||||||
| MH56C4-750SST | 1 | 1725 | 56C | 208-230/460 | 60 | 1.15 | 4.0-3.8/1.8 | F | NO | Cont. | TEFC |
| 3450 | 208-230/460 | 3.8-3.6/1.8 | |||||||||
| MH56C4-1100SST | 1.5 | 1725 | 56C | 208-230/460 | 60 | 1.15 | 5.0-4.8/2.3 | F | NO | Cont. | TEFC |
| 3450 | 208-230/460 | 4.8-4.6/2.3 | |||||||||
| MH56C4-1500SST | 2 | 1725 | 56C | 208-230/460 | 60 | 1.15 | 6.4-6.2/3.1 | F | NO | Cont. | TEFC |
| 3450 | 208-230/460 | 6.2-6.0/3.0 |
NOTES: 1. The frame can be customized as 143TC/145TC and 575V for both 2P & 4P
2. Above 1HP can be customized to meet the Nema Premium Eff%
Our three phase washdown duty stainless steel motors are high quality and perfect performance. The electric motors can be customized according to your needs. Please contact us if you have any questions.
Production Application:
Feeders,conveyors,spray washers, grinders, elevators, pumps and the other demanding agricultural applications that require a high starting torques.
