56FR General Purpose AC Motors Split Single Phase Cooler Motor ODP With Resilient Base

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

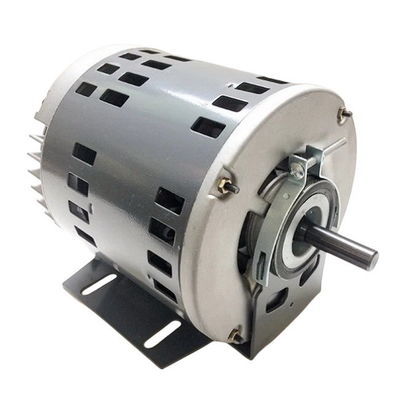

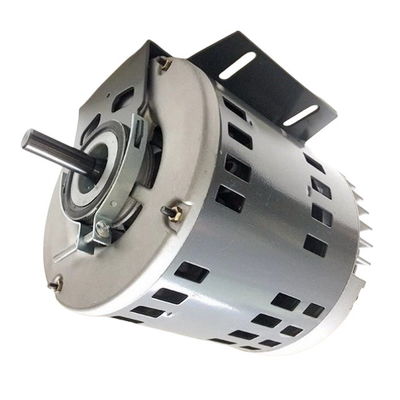

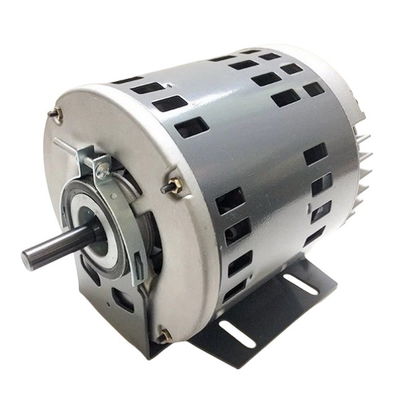

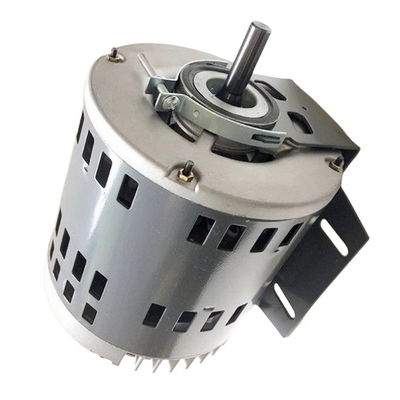

56FR General Purpose AC Motors Split Single Phase Cooler Motor ODP With Resilient Base

56FR General Purpose AC Motors Split Single Phase Cooler Motor ODP With Resilient Base
56FR General Purpose AC Motors Split Single Phase Cooler Motor ODP With Resilient Base 56FR General Purpose AC Motors Split Single Phase Cooler Motor ODP With Resilient Base 56FR General Purpose AC Motors Split Single Phase Cooler Motor ODP With Resilient Base 56FR General Purpose AC Motors Split Single Phase Cooler Motor ODP With Resilient Base

Large Image :  56FR General Purpose AC Motors Split Single Phase Cooler Motor ODP With Resilient Base

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: CE
Model Number: MH562-370K
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable ( EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 40 days
Payment Terms: T/T
Supply Ability: 1000PCS/day

56FR General Purpose AC Motors Split Single Phase Cooler Motor ODP With Resilient Base

Description
Model Type:: MH562-370K Rated Voltage/Frequency: 220/230V 50/60hz
FLA Current(A): 5.2/5.96; 2.8/3.01 Output HP: 1/2
Poles: 4/6P Insulation Class: F
Thermally Protected: Auto Frame: 56FR
IP CLASS: IP20 Mounting: Resiient Base
S.F: 1.0 Duty: Cont.
Appliction: Cooler Fan Agency: CE
Hight Light: General Purpose,56FR Split Single Phase Cooler Motor ODP ,resilient Base
High Light:

56FR General Purpose AC Motors

,

General Purpose AC Motors CE

,

IP20 single phase cooler motor

General Purpose-56FR Split Single Phase cooler motor ODP with resilient base



A RSIR motor is also called a split phase single phase motor. Resistance start is the simplest way comparing to other starting methods, which leads to the cheap cost. This type of motor is usually used when the high starting torque isn’t required, and the frequency of staring is limited. It’s used from 1/4HP to 3/4HP  cooler motor. It has two windings: start and run winding, which are displaced 90 degrees in space.



Quick Review:



Model Type:: MH562-370K Rated Voltage/Frequency: 220/230V 50/60hz
FLA Current(A): 5.2/5.96; 2.8/3.01 Output HP: 1/2
Poles: 4/6P Insulation Class: F
Thermally Protected: Auto Frame: 56FR
IP CLASS: IP20 Mounting: Resiient Base
S.F: 1.0 Duty: Cont.
Appliction: Cooler Fan Agency: CE



If the product parameters do not meet your requirements. We can be customized according to your requirements.

Please contact us !





Production Wiring Diagram



56FR General Purpose AC Motors Split Single Phase Cooler Motor ODP With Resilient Base 0



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
