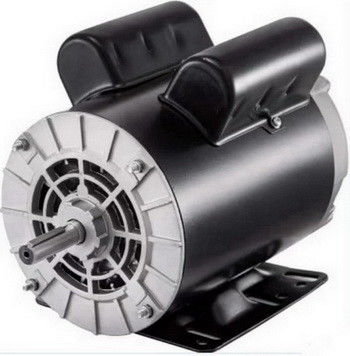

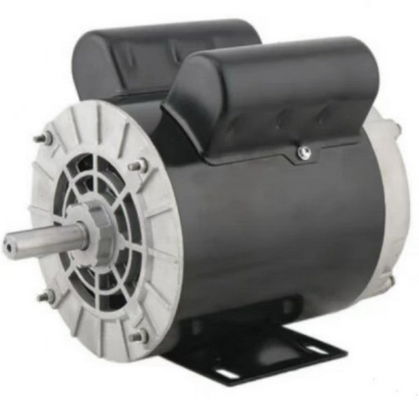

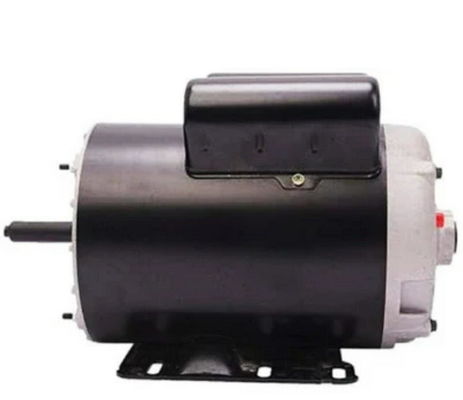

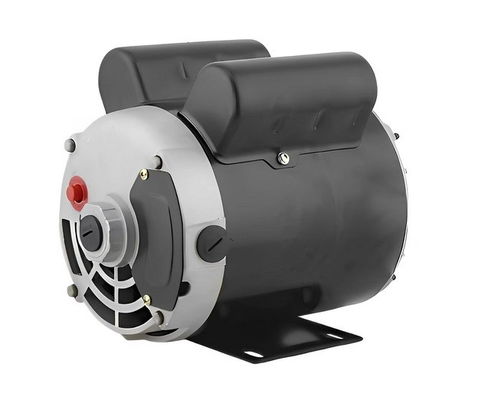

3500RPM Nema General Purpose AC Motors Air Compressor Single Phase ODP 5HP

3500RPM Nema General Purpose AC Motors Air Compressor Single Phase ODP 5HP
3500RPM Nema General Purpose AC Motors Air Compressor Single Phase ODP 5HP 3500RPM Nema General Purpose AC Motors Air Compressor Single Phase ODP 5HP 3500RPM Nema General Purpose AC Motors Air Compressor Single Phase ODP 5HP 3500RPM Nema General Purpose AC Motors Air Compressor Single Phase ODP 5HP

Large Image :  3500RPM Nema General Purpose AC Motors Air Compressor Single Phase ODP 5HP

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: CSA&UL
Model Number: MH562-3750K
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable ( EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 40 days
Payment Terms: T/T
Supply Ability: 500PCS/day

3500RPM Nema General Purpose AC Motors Air Compressor Single Phase ODP 5HP

Description
Model Type:: MH562-3750K Rated Voltage/Frequency: 208-230Vac/60Hz
FLA Current(A): 23-22 Output HP: 5
Speed(RPM)(W): 3450 Insulation Class: F
Thermally Protected: Manual Frame: 56
IP CLASS: 23 Mounting: Rigid Base
S.F: 1.15 Duty: Cont.
Appliction: Air Compressor ;washer Pump Agency: UL& CSA
High Light:

3500RPM General Purpose AC Motors

,

Nema General Purpose AC Motors

,

230V motor air compressor single phase

General purpose -Nema Air compressor AC Single Phase ODP 5HP 3500RPM



Detailed parameters:



HP - 5HP
Poles - 2
Frame - 56HZ
ENC - ODP (open drip proof)
IP - 23
HZ - 60Hz
Voltage - 208-230V
AMP - 23-22A
RPM - 3450
INS - F

Protected- Manual
Rotation - CW only
Shaft diameter - 7/8"or 5/8"
Shaft length - 2.25" or 1.88"



The motor's housing material is rolled steel, and it uses an S1 continuous duty system, making it safe, durable, and long-lasting. The motor also has a low noise level due to its optimized slot design and specially designed rotor. It comes with a protective cover and is widely used in industrial and agricultural production, transportation, commercial, and home appliances, such as water pumps and agricultural machinery. The motor is best suited for relatively clean and dry environments.



Data Sheet Specification

MH-Model HP RPM FRAME Volts SF BRG Base Full load AMPS THERMALLY PROTECTED AGENCY
MH562-250K 1/3 3450 56 115/230 1 BALL WB 4.6/2.3 MAN. CSA &CUS
MH562-370K 1/2 3450 56 115/230 1 BALL WB 8.4/4.2 MAN. CSA &CUS
MH562-550K 3/4 3450 56 115/230 1 BALL WB 9.8/4.9 MAN. CSA &CUS
MH562-750K 1 3450 56 115/230 1 BALL WB 10.6/5.3 MAN. CSA &CUS
MH562-1100K 1.5 3450 56 115/208-230 1 BALL WB 15/7.5 MAN. CSA &CUS
MH562-1500K 2 3450 56 115/230 1 BALL WB 24/12 MAN. CSA &CUS
MH562-2250K 3 3450 56 208-230 1 BALL WB 16-15 MAN. CSA &CUS
MH562-3750K 5 3450 56 or 184 208-230 1.15 BALL WB 23-22 MAN. CSA &CUS
MH562-2SPL 2SPL 3450 56 115/230 1 BALL WB 15/7.5 MAN. CSA &CUS
MH562-3SPL 3SPL 3450 56 115/230 1 BALL WB 24/12 MAN. CSA &CUS
MH562-5SPL 5SPL 3450 56 208-230 1 BALL WB 16/15 MAN. CSA &CUS



NOTES: 1. The frame can be customized as 140FR or 184FR

               2. The mounting frame can be designed as as customer's request for 56 or 184.



If you would like the other specifics ,please contact us .



3500RPM Nema General Purpose AC Motors Air Compressor Single Phase ODP 5HP 0

3500RPM Nema General Purpose AC Motors Air Compressor Single Phase ODP 5HP 1

FAQ:



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
