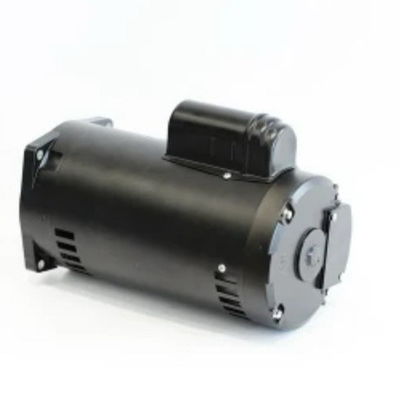

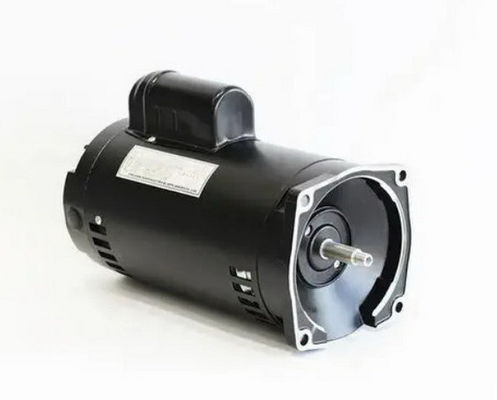

Square Flange Pool Pump General Purpose Electric Threaded Shaft ODP Single Phase AC Motor

Square Flange Pool Pump General Purpose Electric Threaded Shaft ODP Single Phase AC Motor
Square Flange Pool Pump General Purpose Electric Threaded Shaft ODP Single Phase AC Motor Square Flange Pool Pump General Purpose Electric Threaded Shaft ODP Single Phase AC Motor Square Flange Pool Pump General Purpose Electric Threaded Shaft ODP Single Phase AC Motor

Large Image :  Square Flange Pool Pump General Purpose Electric Threaded Shaft ODP Single Phase AC Motor

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: CSA
Model Number: MH562-750SQ
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable ( EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 40 days
Payment Terms: T/T
Supply Ability: 500PCS/day

Square Flange Pool Pump General Purpose Electric Threaded Shaft ODP Single Phase AC Motor

Description
Product Name: Square Flange ODP Pool Pump Threaded Shaft Single Phase AC Motor Model Type:: MH562-750SQ
Rated Voltage/Frequency: 115/230Vac HZ: 60
FLA Current(A): 5.91@230V Output HP: 1.0
Speed(RPM)(W): 3450 Insulation Class: F
Thermally Protected: AUTO Frame: 56J
IP CLASS: 23 Mounting: Threaded Shaft
S.F: 1.4 Duty: Cont.
Agency: CSA Appliction: POOL PUMP
Max. Amb. C: 40 DEG C
High Light:

3450RPM general purpose electric motor

,

230V general purpose electric motor

,

3450RPM single phase AC motor

General purpose-Square Flange Pool pump threaded shaft ODP single phase AC motor

MH Jet Pump motors are designed for use in residential and commercial water pumping applications. These Jet Pump motors are available in single-phase and three-phase configurations and feature a service factor of 1.15 up to 1.75 depending on horsepower rating.

These motors are available in versatile installation options including C-Face and square flange with the shaft threaded or the keyway.  The frame including the 48fr and 56fr both which can be customized as your request with the CSA agency.


Product Feature:

  • 1/3-3 HP, 115/230 Volt, Single-Phase
  •  3600 RPM
  • Open Drip Proof (ODP) Enclosure
  • IP23 Protection
  • Class F Insulation
  • C-Face witih Base (CB / JB) and
    C-Face Round Body Footless (CRD / JRD)
  • 56J – Threaded Shaft
  • 56C – Keyed Shaft
  • 304 Stainless Steel Shaft End
  • Drive-End Shaft Slinger
  • Double Shielded Ball Bearings
  •

Specifics Data :


MH MODEL HP VOLTS Hz RPM S.F

INSUL.

CLASS

ENCL. FLA @230  EFF% DUTY INSL.CL Thermally
MH562-370SQ 1/2 115/208-230 60 3450 1.6 B ODP 3.92 66 CONT. F Auto
MH562-550SQ 3/4 115/208-230 60 3450 1.5 B ODP 4.52 73 CONT. F Auto
MH562-750SQ 1.0 115/208-230 60 3450 1.4 B ODP 5.91 75 CONT. F Auto
MH562-1100SQ 1.5 115/208-230 60 3450 1.3 B ODP 7.82 80 CONT. F Auto
MH562-1500SQ 2 115/208-230 60 3450 1.2 B ODP 8.31 85 CONT. F Auto
MH562-2250SQ 3 230 60 3450 1.15 B ODP 11.6 84 CONT. F Auto



Here is only respective model for display , if you need the detail request, please contact us to get more.



Square Flange Pool Pump General Purpose Electric Threaded Shaft ODP Single Phase AC Motor 0





FAQ:



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
