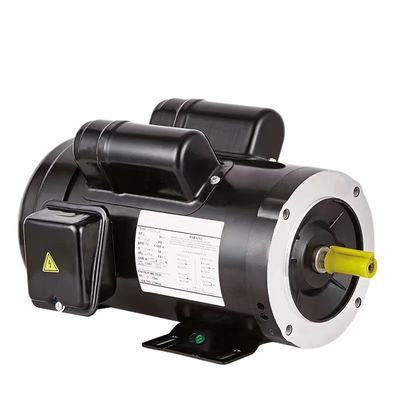

Nema 56C General Purpose Electric Motor Single Phase High Torque 1.5HP 4P AC Electric Motor

Nema 56C General Purpose Electric Motor Single Phase High Torque 1.5HP 4P AC Electric Motor
Nema 56C General Purpose Electric Motor Single Phase High Torque 1.5HP 4P AC Electric Motor Nema 56C General Purpose Electric Motor Single Phase High Torque 1.5HP 4P AC Electric Motor Nema 56C General Purpose Electric Motor Single Phase High Torque 1.5HP 4P AC Electric Motor

Large Image :  Nema 56C General Purpose Electric Motor Single Phase High Torque 1.5HP 4P AC Electric Motor

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: CSA&UL
Model Number: MH564-1100
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable ( EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 40 days
Payment Terms: T/T
Supply Ability: 500PCS/day

Nema 56C General Purpose Electric Motor Single Phase High Torque 1.5HP 4P AC Electric Motor

Description
Model Type:: MH56C4-1100 Rated Voltage/Frequency: 115/230Vac/60Hz
FLA Current(A): 15.2/7.6 Output HP: 1.5
Speed(RPM)(W): 1745 Insulation Class: F
Thermally Protected: Manual Or Auto Frame: 56C Or 56 ,140T, 140TC
IP CLASS: 44 Or 20 Or 55 Mounting: Rigid Base Or C Flange
S.F: 1.15 Duty: Cont.
Appliction: Farm Duty ,Spray Washers ... Agency: UL& CSA
Hight Light: China, Nema 56C Single Phase, High Torque 1.5HP 4P ,Farm Duty
High Light:

Nema 56C general purpose electric motor

,

general purpose electric motor 1.5HP

,

4P ac electric motor

General Purpose-Nema 56C Single Phase High Torque 1.5HP 4P AC Electric Motor



56 frame or 56C frame AC single phase induction motor  is a type of electric motor designed for farm duty applications. It is characterized by its ability to start with a higher torque than a standard induction motor, thanks to the capacitor connected to the start winding.

This type of motor is designed to meet the high torque requirements of farm equipment, such as pumps, fans, and compressors, which require a motor that can start under heavy loads. The 56 frame refers to the size of the motor, which is standardized to fit a variety of farm equipment.

The single phase design means that it operates with a single alternating current, making it suitable for use in areas without access to 3-phase power. Additionally, our motors can be customerized according the request not only for 4P, but also for 2P.



Overall, this type motor is a reliable and efficient motor designed specifically for the demanding conditions of farm duty applications.





Data Sheet Specification



MH-Model HP RPM FRAME Volts HZ SF Full load AMPS INSL. CLASS THERMALLY PROTECTED Duty ENCL AGENCY
MH56C4-250 1/3 1725 56C 115/230 60 1.15 6.6/3.3 F Manual or Auto Cont. TEFC CSA &UL
MH56C4-370 1/2 1725 56C 115/230 60 1.15 8.8/4.2 F Manual or Auto Cont. TEFC CSA &UL
MH56C4-550 3/4 1725 56C 115/230 60 1.15 11.0/5.5 F Manual or Auto Cont. TEFC CSA &UL
MH56C4-750 1 1725 56C 115/230 60 1.15 13.6/6.8 F Manual or Auto Cont. TEFC CSA &UL
MH56C4-1100 1.5 1725 56C 115/230 60 1.15 15.2/7.6 F Manual or Auto Cont. TEFC CSA &UL
MH56C4-1500 2 1725 56C 115/230 60 1.15 20.0/10.0 F Manual or Auto Cont. TEFC CSA &UL



NOTES: 1. The frame can be customized as 143TC/145TC

               2. The mounting can be designed as with rigid base or no base as customer's request





Production Features:



1.Roll steel frame,Double shield bearing construction.

2.Low noise vibration depending base.

3.High Torque for demanding agricultural /industrial applications

4. Heavy-duty design combind with CSIR or CSCR for high starting torque.

5.Thermal protector is available as demands

6. High Quality Lubricating Oil bearing.







Facility assembly line  pictures: (Motor color can be customized )

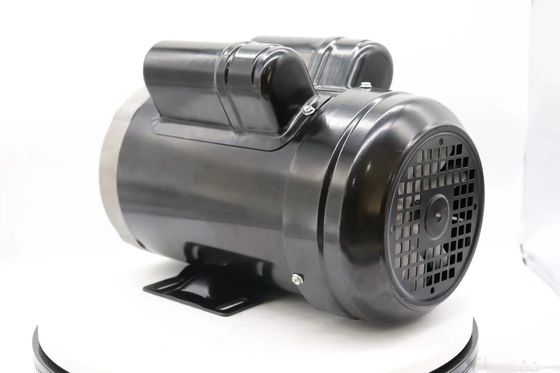

Nema 56C General Purpose Electric Motor Single Phase High Torque 1.5HP 4P AC Electric Motor 0Nema 56C General Purpose Electric Motor Single Phase High Torque 1.5HP 4P AC Electric Motor 1

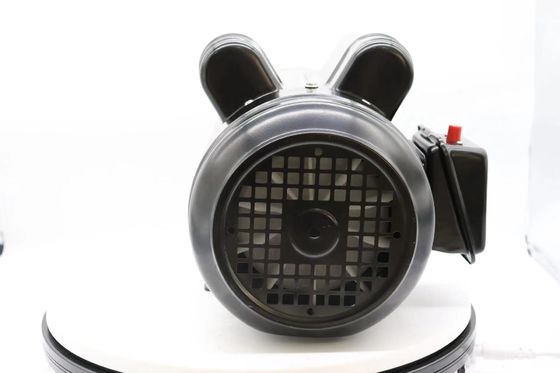

Nema 56C General Purpose Electric Motor Single Phase High Torque 1.5HP 4P AC Electric Motor 2
