0.5A C Frame Motor 2.38" Die Cast Construction 55W Single Phase Shade Pole

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

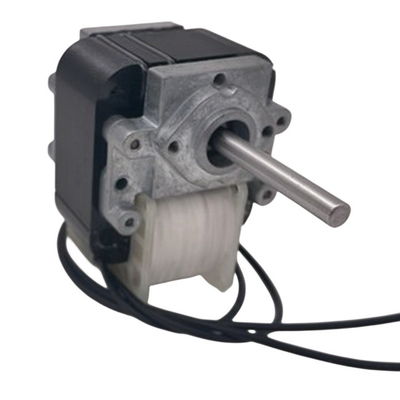

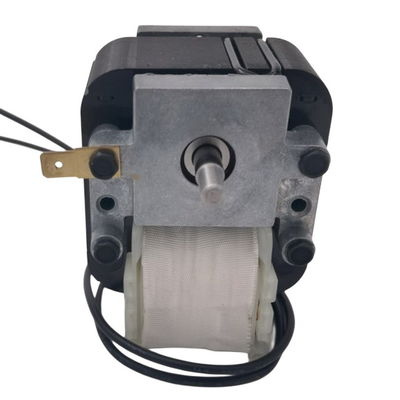

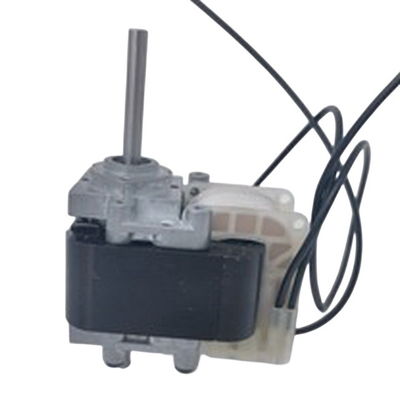

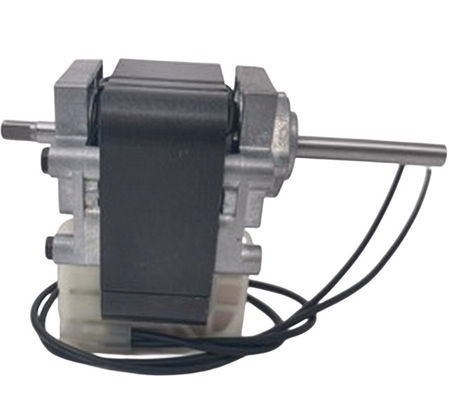

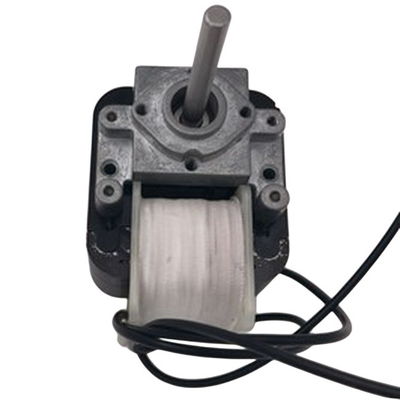

0.5A C Frame Motor 2.38" Die Cast Construction 55W Single Phase Shade Pole

0.5A C Frame Motor 2.38" Die Cast Construction 55W Single Phase Shade Pole
0.5A C Frame Motor 2.38" Die Cast Construction 55W Single Phase Shade Pole 0.5A C Frame Motor 2.38" Die Cast Construction 55W Single Phase Shade Pole 0.5A C Frame Motor 2.38" Die Cast Construction 55W Single Phase Shade Pole 0.5A C Frame Motor 2.38" Die Cast Construction 55W Single Phase Shade Pole 0.5A C Frame Motor 2.38" Die Cast Construction 55W Single Phase Shade Pole

Large Image :  0.5A C Frame Motor 2.38" Die Cast Construction 55W Single Phase Shade Pole

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: CCC/CE/ETL
Model Number: MH6029-29131
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 2000PCS/day

0.5A C Frame Motor 2.38" Die Cast Construction 55W Single Phase Shade Pole

Description
Product Name: 2.38" C Frame Motor Die-cast Construction 55W 0.5A Single Phase Shade Pole Motor Type: MH6029-29131
Rated Voltage/Frequency: 230V50 Current(A): 0.5A
Input Power(W): 55W Output Speed(RPM): 3000
Hi-Pot TEST: 1800vac50hz,1Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: H Protect Method: TP
Agency: CCC/CE/ETL Application: PUMP;Gas Detection Pump
High Light: 2.38" C Frame Motor Die-cast Construction 55W 0.5A Single Phase Shade Pole
High Light:

C Frame Motors 2.38"

,

C Frame Motors 55W

,

Single Phase Motor Shade Pole

2.38" C Frame Motor die-cast construction 55W 0.5A Single Phase Shade Pole


This type of motor is commonly used in small appliances and equipment. Die-cast construction provides durability and structural integrity to the motor.It can be used in various applications that require a small motor size, low power consumption, and efficient performance.

Quick Review:

Product Name: 2.38" C Frame Motor Die-cast Construction 55W 0.5A Single Phase Shade Pole Motor Type: MH6029-29131
Rated Voltage/Frequency: 230V50 Current(A): 0.5A
Input Power(W): 55W Output Speed(RPM): 3000
Hi-Pot TEST: 1800vac50hz,1Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: H Protect Method: TP
Agency: CCC/CE/ETL Application: PUMP;Gas Detection Pump


 Note: Can be customized according to customer requirements, please contanct us.

0.5A C Frame Motor 2.38" Die Cast Construction 55W Single Phase Shade Pole 0
Production Feature :


1. 2.38’’ C-FRAME MOTOR

2. Heavy-duty steel and die-cast construction

3. Several shaft size options

4. Several mounting options available

5. Several lead configurations available

6. Ball bearing or Sleeve bearing available



Data Parameter sheet:



Stack Length (L) (mm/inch) Voltage (V) Frequency (Hz) Speed(RPM) Max Torque(Oz.in) Max HP
Output
21.88(7/8) 110-120V/220-240V 50/60 3000 7.5 1/45
25.40(1) 3000 9.3 1/40
28.123(1 1/8) 3000 11.2 1/30
34.93(1 3/8) 3000 16 1/25
38.10(1 1/2) 3000 18.5 1/18
50.80(2) 3000 24.8 1/13





Torque Curve
0.5A C Frame Motor 2.38" Die Cast Construction 55W Single Phase Shade Pole 1


FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
