Product Details:
|
| MH MODEL: | MH6038-38656 | Product Name: | AC115V 68W Shaded Pole Motor For Oven And Ventilation Equipment SS Material |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V 60Hz | Current（A): | 1.02 |
| Input Power（W）: | 68W | Speed（RPM): | 2360 |
| Hi-Pot TEST: | 1500Vac,50HZ ,1mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | ETL | Application: | Oven, Pellet Stove, Lab Equipment |
| High Light: | Hot Air Oven Air ,Circulation Oven Fan, Ac Shade Pole Motor ,115V 60HZ 68W | ||
| High Light: | 68W Shaded Pole Induction Motor,SS material Shaded Pole Induction Motor,AC115V Shaded Pole Induction Motor |
||

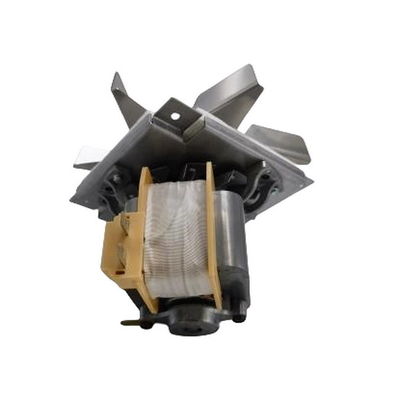

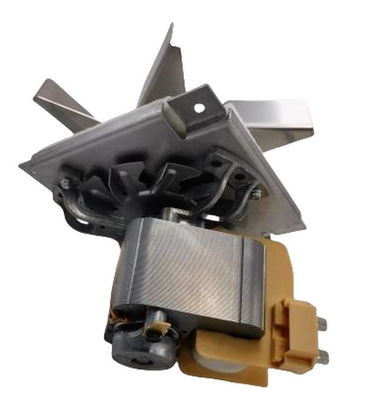

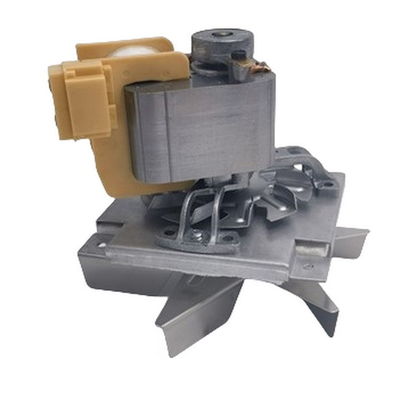

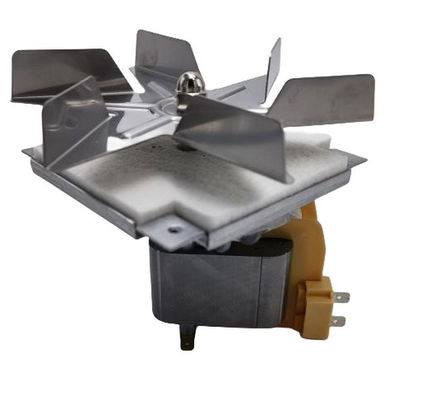

AC115V 68W shaded pole motor for oven and ventilation equipment SS material
This serial motors are applied in high speed and large air volume which can quickly achieve temperature balance inside the box.
It is typically applied in oven and hot air drying / ventilation equipment.
Technical Rating Data:
| MH MODEL: | MH6038-38656 | Product Name: | AC115V 68W Shaded Pole Motor For Oven And Ventilation Equipment SS Material |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V 60Hz | Current(A): | 1.02 |
| Input Power(W): | 68W | Speed(RPM): | 2360 |
| Hi-Pot TEST: | 1500Vac,50HZ ,1mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | ETL | Application: | Oven, Pellet Stove, Lab Equipment |
Production Feature:
1. High temperature wire connection, riveting standard 250 plastic shell protected quick terminals.
2. Heat-resistant fan made of stainless steel by stamping.
3. Heat-resistant ball bearings: NMB BALL BEARING.
4. Assembled with metal plates and insulated cotton for dual insulation designcooling fan helps to reduce the operating temperature of the bearings and improve the product lifespan.
5. With the dedicated bearing bracket, the motor can be installed outside the oven to prevent overheating of the blower or the corresponding drive motor.
6. Mature and reliable shaded pole motor technology, suitable for various high temperature environments.
7. High-quality electrical steel and zinc die-casting structure ensure the stability of the product.
The main appilication:
oven and hot air drying / ventilation equipment.
