Product Details:
|
| Product Name: | Oven Hot Air Circulation Fan Ac Shade Pole Motor 55W 0.45A | Rated Voltage/Frequency: | 230Vac/50Hz |
|---|---|---|---|
| Current（A): | 0.45 | Input Power（W）: | 55W |
| Speed（RPM): | 2300 | Hi-Pot TEST: | 1800vac50hz,3Ma,1s |
| Bearing Type: | NMB Ball Bearing | Insulation Class: | H (Z.P) |
| Agency: | CE/CCC/ETL | Application: | Oven;LAB EQUIPMENT |
| High Light: | Hot Air Oven Air ,Circulation Oven Fan, Ac Shade Pole Motor ,230V 50HZ 55W | ||
| High Light: | 55W Hot Air Oven Fan,0.45A Hot Air Oven Fan,2300RPM air circulation fan for wood stove |
||

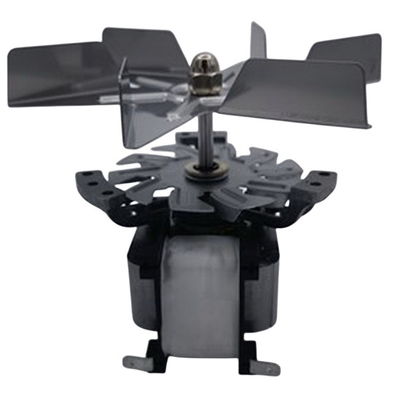

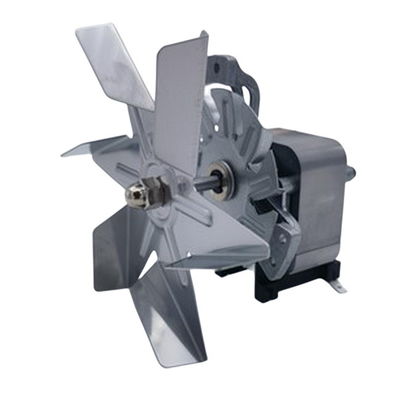

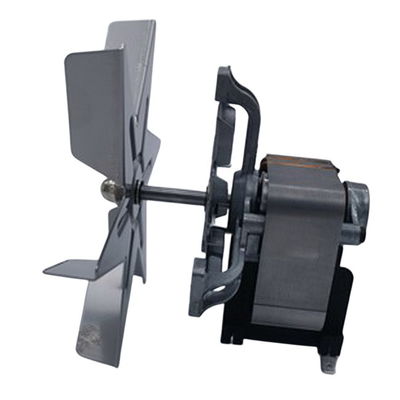

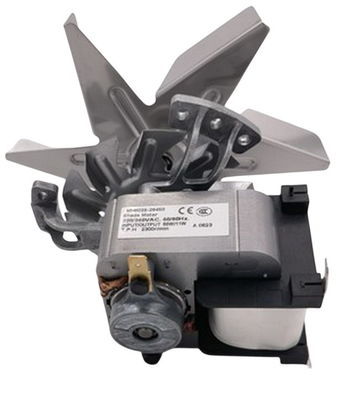

Oven Hot Air Circulation Fan Ac Shade Pole Motor 55W 0.45A
The motor's primary function is to provide efficient hot air circulation within the oven, ensuring even heat distribution and improved cooking results. The motor is capable of delivering the required power and performance for its intended application, providing reliable and efficient hot air circulation. It is specifically designed for hot air circulation in ovens or lab equipments , providing the necessary power and performance to ensure even cooking and baking or cooling.
Quick Review:
| Product Name: | Oven Hot Air Circulatio Fan Ac Shade Pole Motor 55W 0.45A | Rated Voltage/Frequency: | 230Vac/50Hz |
|---|---|---|---|
| Current(A): | 0.45 | Input Power(W): | 55W |
| Speed(RPM): | 2300 | Hi-Pot TEST: | 1800vac50hz,3Ma,1s |
| Bearing Type: | NMB Ball Bearing | Insulation Class: | H (Z.P) |
| Agency: | CE/CCC/ETL | Application: | Oven;Lab Equipment |
Production Advantage:
1. Heat-resistant fan made of stainless steel.
2. High-temperature resistant NMB ball bearing shaft design.
3. High-quality 3M insulation tape used for enhanced safety.
4. Self-cooling fan design for improved motor lifespan.
5. Skeleton material selection of DuPont FR530 for enhanced product safety.
6. Multiple shaft sizes available for selection.
7. Multiple motor performance options available.
8. Can be assembled with different mounting metal plates according to customer requirements.
9. Quick-connect terminal connection for easy plug-and-play installation.
10. Driven by C-FRAME shaded pole motor.
11. Typically used in laboratory equipment instruments and oven hot air circulation.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
