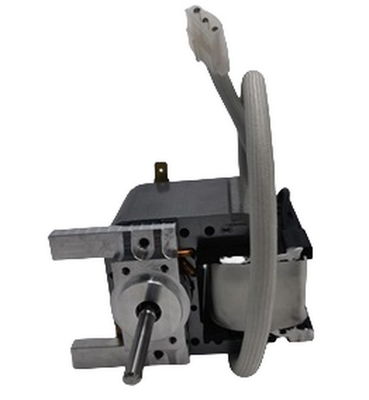

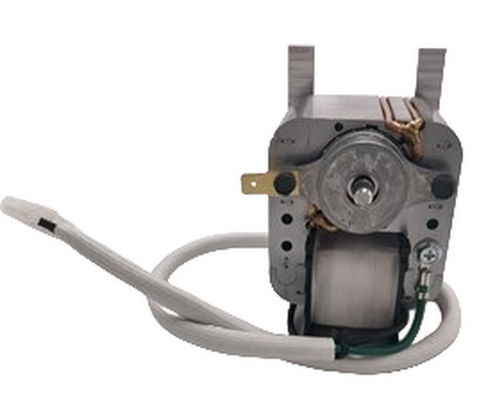

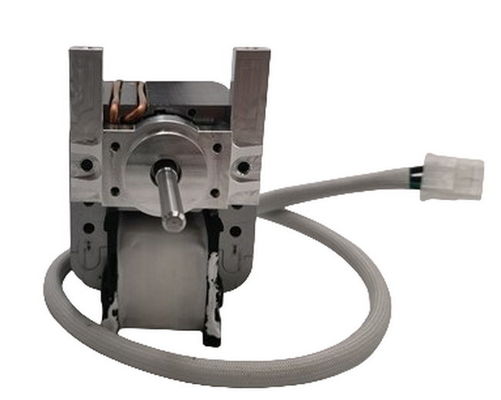

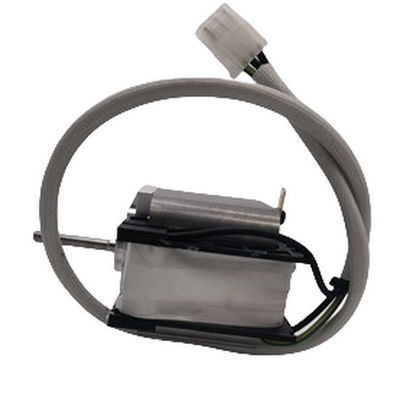

AC Shade Pole 2.38"63W C Frame Electric Fan Motor With Quick Connector And 0.94A Current

AC Shade Pole 2.38"63W C Frame Electric Fan Motor With Quick Connector And 0.94A Current
AC Shade Pole 2.38"63W C Frame Electric Fan Motor With Quick Connector And 0.94A Current AC Shade Pole 2.38"63W C Frame Electric Fan Motor With Quick Connector And 0.94A Current AC Shade Pole 2.38"63W C Frame Electric Fan Motor With Quick Connector And 0.94A Current AC Shade Pole 2.38"63W C Frame Electric Fan Motor With Quick Connector And 0.94A Current

Large Image :  AC Shade Pole 2.38"63W C Frame Electric Fan Motor With Quick Connector And 0.94A Current

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6051-51637
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 3000PCS/day

AC Shade Pole 2.38"63W C Frame Electric Fan Motor With Quick Connector And 0.94A Current

Description
Product Name: China 2.38" 63W C Frame Electric Fan Motors Ac Shaded Pole With Quick Connector Motor Type: MH6051-51637
Rated Voltage/Frequency: 115Vac/60Hz Current(A): 0.94
Input Power(W): 63W Output Speed(RPM): 3000
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: NMB BALL BEARING
Insulation Class: H Agency: ETL
Output Torque( Oz.in): 8.77 Oz.in @920rpm Protect Method: TP
Application: Air Pump High Light: China 2.38", 63W 0.94A 115VAC, C Frame Motor ,AC Shade Pole, Quick Connector
High Light:

Quick Connector Electric Fan Motor

,

0.94A Electric Fan Motor

China 2.38" 63W 0.94A 115VAC C Frame Motor AC Shade Pole with Quick Connector






 Can be customized according to customer requirements, please contanct us.





Stack Length (L) (mm/inch) Voltage (V) Frequency (Hz) Speed(RPM) Max Torque(Oz.in) Max HP
Output
9.53(3/8) 110-120
220-240
50/60 3000 1.4 1/225
12.50(1/2) 3000 3.1 1/112
15.63(5/8) 3000 4.3 1/90
18.75(3/4) 3000 6 1/60
21.88(7/8) 3000 7.5 1/45
25.40(1) 3000 9.3 1/40
28.123(1 1/8) 3000 11.2 1/30
34.93(1 3/8) 3000 16 1/25
38.10(1 1/2) 3000 18.5 1/18
50.80(2) 3000 24.8 1/13





AC Shade Pole 2.38"63W C Frame Electric Fan Motor With Quick Connector And 0.94A Current 0


Production Feature :


1. 2.38-inch Efficient Electrical Steel C-FRAME Motor
2. Zinc die-cast structure
3. Multiple shaft size options
4. Multiple installation structures
5.Self-cooling fan design, prolong the motor service life
6. Optional wire structure connection
7. Independent grounding wire design



Air Flow Curve

AC Shade Pole 2.38"63W C Frame Electric Fan Motor With Quick Connector And 0.94A Current 1


FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
