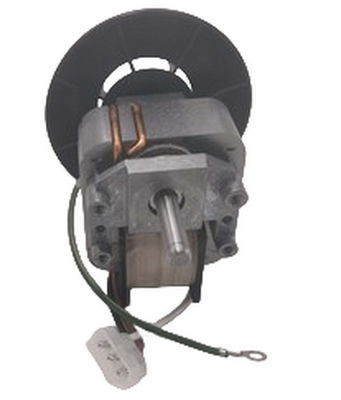

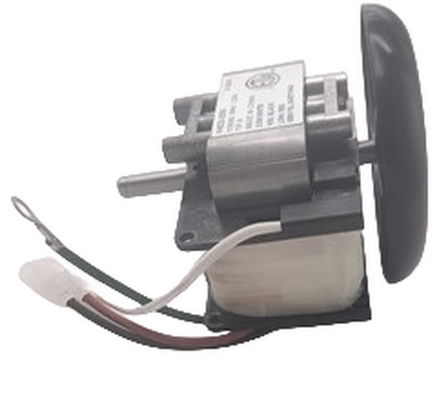

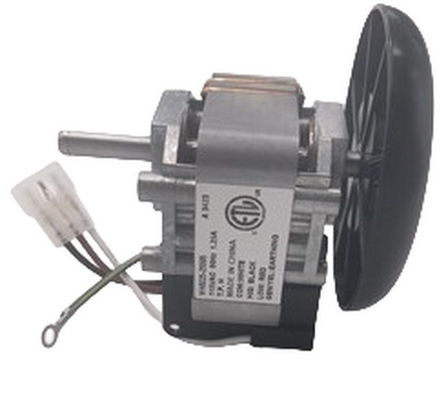

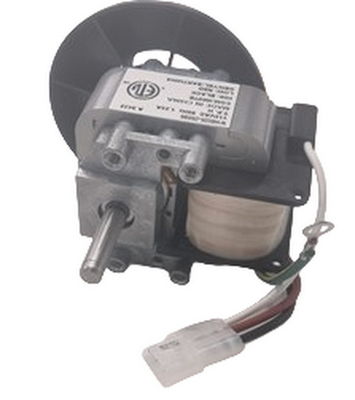

50W 0.85A C Frame Shaded Pole Motor AC Single Phase With Cooling Fan

50W 0.85A C Frame Shaded Pole Motor AC Single Phase With Cooling Fan
50W 0.85A C Frame Shaded Pole Motor AC Single Phase With Cooling Fan 50W 0.85A C Frame Shaded Pole Motor AC Single Phase With Cooling Fan 50W 0.85A C Frame Shaded Pole Motor AC Single Phase With Cooling Fan 50W 0.85A C Frame Shaded Pole Motor AC Single Phase With Cooling Fan

Large Image :  50W 0.85A C Frame Shaded Pole Motor AC Single Phase With Cooling Fan

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6025-25595
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 2000PCS/day

50W 0.85A C Frame Shaded Pole Motor AC Single Phase With Cooling Fan

Description
Product Name: China 50W 0.85A 2.38" C Frame Motor AC Single Phase Shade Pole With Cooling Fan MH MODEL: MH6025-25595
Rated Voltage/Frequency: 115V60Hz Current(A): 0.85A
Input Power(W): 50 Output Speed(RPM): 3000
Hi-Pot TEST: 1500vac50Hz,1mA,1S Bearing Type: NMB Ball Bearing
OUT PUT TORQUE:: 5.5OZ.in @1800RPM Insulation Class: H
Agency: ETL Application: MECHANICAL AND FAN DUTY APPLICATIONS
Protect Method: TP
High Light:

50W C Frame Shaded Pole Motor

,

C Frame Shaded Pole Motor

,

0.85 A C Frame Motor

China 50W 0.85A  2.38" C Frame Motor AC Single Phase Shade Pole with cooling fan



The motor is specifically designed for pump applications and can be used to aircondition condensate pumps or other types of pumps. The motor operates on single-phase AC power. It can be directly connected to a single-phase AC power supply, typically using standard household or commercial power.



Specification:

Stack Length (L) (mm/inch) Voltage (V) Frequency (Hz) Speed(RPM) Max Torque(Oz.in) Max HP
Output
9.53(3/8) 110-120
220-240
50/60 3000 1.4 1/225
12.50(1/2) 3000 3.1 1/112
15.63(5/8) 3000 4.3 1/90
18.75(3/4) 3000 6 1/60
21.88(7/8) 3000 7.5 1/45
25.40(1) 3000 9.3 1/40
28.123(1 1/8) 3000 11.2 1/30
34.93(1 3/8) 3000 16 1/25
38.10(1 1/2) 3000 18.5 1/18
50.80(2) 3000 24.8 1/13



Note: Listed are representative only for reference, can be customized according to customer requirements



50W 0.85A C Frame Shaded Pole Motor AC Single Phase With Cooling Fan 0

Production Feature :



1. 2.38-inch High-Efficiency Electrical Steel

2. C-FRAME Motor Zinc Pressure Die-Cast Structure

3. Multiple Shaft Size Options

4. Various Mounting Structures

5. Quick-Connect Terminal Connection Optional

6. Wire Structure Connection

7. Independent Ground Wire Terminal Design

8. Built-in Cooling Fan, Extends Motor Lifespan.



Performance Curve:

50W 0.85A C Frame Shaded Pole Motor AC Single Phase With Cooling Fan 1
Main Appilication:



50W 0.85A C Frame Shaded Pole Motor AC Single Phase With Cooling Fan 2




Welcome your business chat and visit. Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing C-frame motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.
