Product Details:
|
| MH MODEL: | MH6038-38071 | Product Name: | AC230V 50W Shaded Pole Motor For Hot Aire Oven Fan And Ventilation Equipment |
|---|---|---|---|
| Rated Voltage/Frequency: | 230v/50Hz | Current（A): | 0.4 |
| Input Power（W）: | 50W | Speed（RPM): | 2000 |
| Hi-Pot TEST: | 1800Vac,3mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | CE/CCC/ETL | Application: | Oven, Pellet Stove, Lab Equipment |
| High Light: | Hot Air Oven Air ,Circulation Oven Fan, Ac Shade Pole Motor ,230V 50HZ 50W |

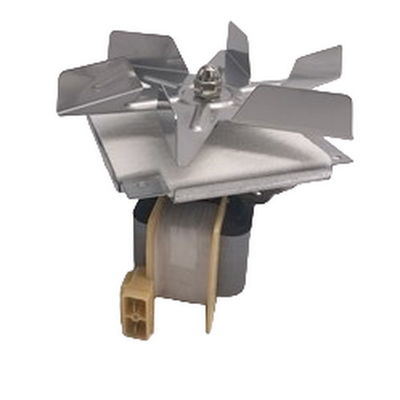

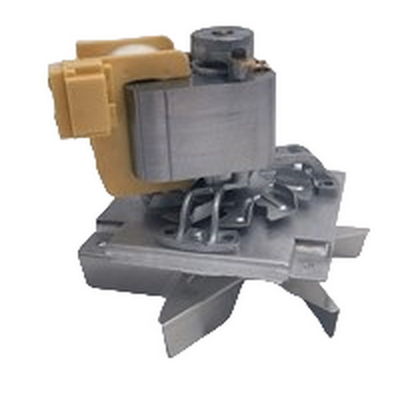

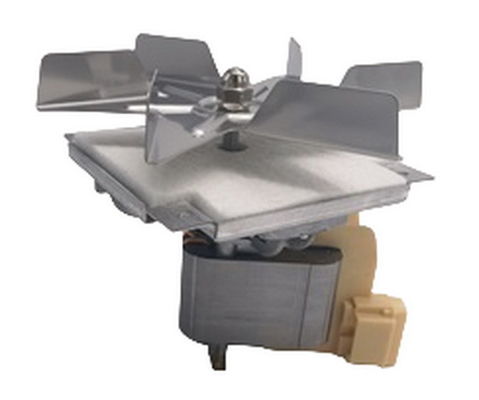

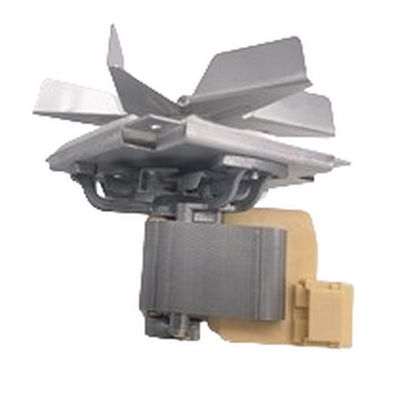

AC230V 50W shaded pole motor for hot air oven and ventilation equipment
This serial motors are applied in high speed and large air volume which can quickly achieve temperature balance inside the box.
It is typically applied in oven and hot air drying / ventilation equipment.
Quick Review:
| MH MODEL: | MH6038-38071 | Product Name: | AC230V 50W Shaded Pole Motor For Hot Aire Oven Fan And Ventilation Equipment |
|---|---|---|---|
| Rated Voltage/Frequency: | 230v/50Hz | Current(A): | 0.4 |
| Input Power(W): | 50W | Speed(RPM): | 2000 |
| Hi-Pot TEST: | 1800Vac,3mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | CE/CCC/ETL | Application: | Oven, Pellet Stove, Lab Equipmen |
Production Feature:
1. High temperature wire connection, riveting standard 250 plastic shell protected quick terminals.
2. Heat-resistant fan made of stainless steel by stamping.
3. Heat-resistant ball bearings: NMB BALL BEARING.
4. Assembled with metal plates and insulated cotton for dual insulation designcooling fan helps to reduce the operating temperature of the bearings and improve the product lifespan.
5. With the dedicated bearing bracket, the motor can be installed outside the oven to prevent overheating of the blower or the corresponding drive motor.
6. Mature and reliable shaded pole motor technology, suitable for various high temperature environments.
7. High-quality electrical steel and zinc die-casting structure ensure the stability of the product.
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Hot Air Oven Shade Pole Fan Motor, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team.
