Product Details:
|
| MH MODEL: | MH6029-29136 | Product Name: | 55W 0.45A Hot Air Oven Fan High Temperature For Oven Or Lab Equipment |
|---|---|---|---|
| Rated Voltage/Frequency: | 230Vac 50Hz | Current（A): | 0.45 |
| Input Power（W）: | 55 | Speed（RPM): | 2300 |
| Hi-Pot TEST: | 1800Vac,3mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | CE/CCC/ETL | Application: | LAB EQUIPMENT OVEN |
| High Light: | Hot Air Oven Air ,Hot Air Fan ,High Temperature Shaded Pole Motor , Oven Or Lab Equipement |

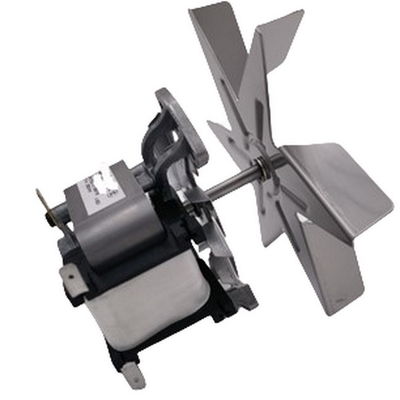

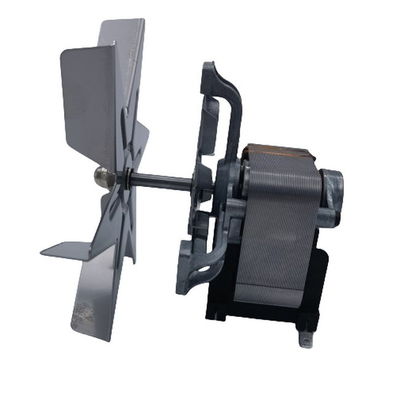

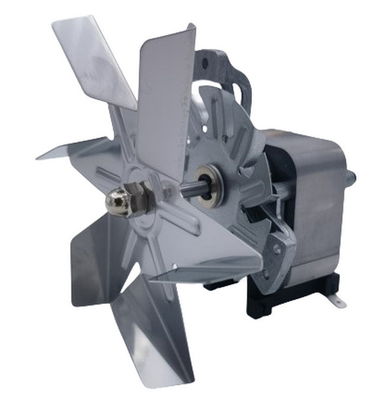

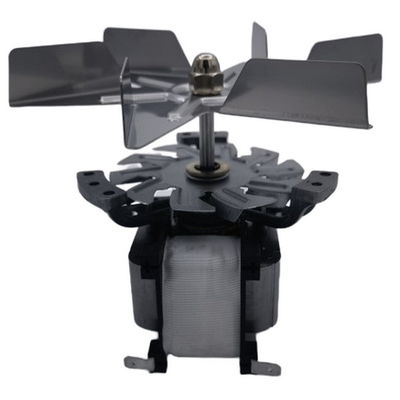

55W 0.45A Hot Air Oven Fan High Temperature for oven or lab equipment
Production Feature:
• Plug and play
• Mature and reliable mask motor technology
• Heat resistant fan made of hot dip aluminized steel, stainless steel
• Operating temperature covering 120-500 ℃
• The motor is installed outside the box to extend the service life of the motor.
• High temperature ball bearing design, low noise, long life.
• Motor self-cooling design.
• A variety of shaft sizes are available.
• A wide range of motor performance options
• Different mounting metal plates can be assembled according to customer requirements.
Quick Review:
| MH MODEL: | MH6029-29136 | Product Name: |
55W 0.45A Hot Air Oven Fan High Temperature for oven or lab equipment |
| Rated Voltage/Frequency: | 230Vac/50HZ | Current(A): | 0.45 |
| Input Power(W): | 55 | Speed(RPM): | 2300 |
| Hi-Pot TEST: | 1800Vac,50HZ, 3mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | CE/CCC/ETL | Application: | Oven; Lab Equipment |
| High Light: | 55W 0.45A ,Hot Air Oven Fan ,High Temperature for oven or lab equipment | Feature | High Temperature |
The main appilication:
LAB EQUIPMENT,OVEN
