Product Details:
|
| MH MODEL: | MH6019-19489 | Product Namee: | High Efficiency Hot Air Circulation Fan |
|---|---|---|---|
| Rated Voltage/Frequency: | 220/240Vac/50/60Hz | Current（A): | 0.4 |
| Input Power（W）: | 45W | Speed（RPM): | 1700 |
| Hi-Pot TEST: | 1800Vac,3mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | CE/CCC/ETL | Application: | Oven, Lab Equipment |
| High Light: | 45W, High Efficiency ,hot Air Circulation Fan ,Shaded Pole Motor For Oven Or Lab Equipment |

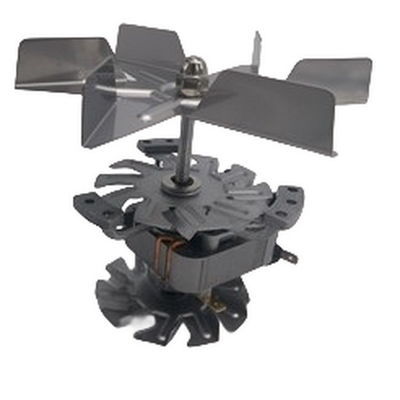

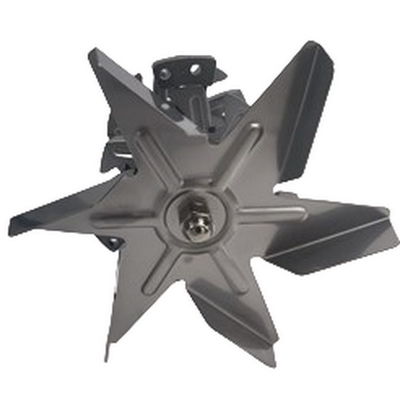

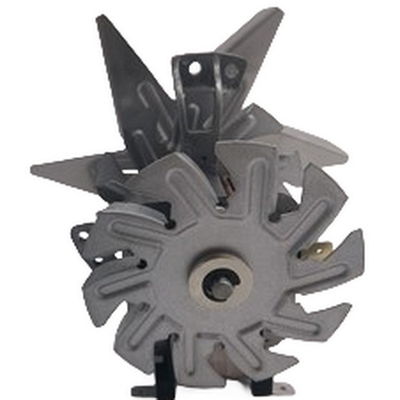

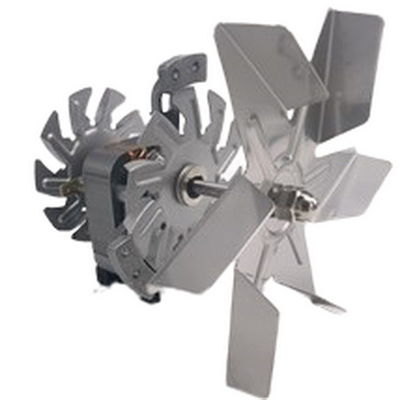

45W High efficiency hot air circulation fan Shaded Pole Motor For Oven or Lab Equipment
This is a 45W 220-240V 50/60Hz dual heat dissipation fan design with an AC shaded pole motor, typically used in ovens and lab equipment. The dual heat dissipation fan design effectively lowers the temperature inside the equipment, improving its performance and lifespan. The motor uses high-quality materials and design, with features such as high efficiency, reliability, and low noise, and can operate stably in high-temperature environments for long periods of time. In addition, the motor has the advantages of easy installation and maintenance, making it an ideal choice for ovens and lab equipment.
Technical Rating Data:
| MH PN# | Volt/Frq (Vac/Hz) | Power (W) | Current (A) | Speed (RPM) | Bearing | Fan Model | Agency | Incl.Cls |
| MH6019-19XXX | 220-240V, 50/60Hz | 42 | ≤ 0.4 | 1800±100 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6029-29XXX | 220-240V, 50/60Hz | 50 | ≤ 0.45 | 2300±150 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6019-19XXX | 110-115V 50/60Hz | 45 | ≤ 0.9 | 1800±100 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
| MH6029-29XXX | 110-115V 50/60Hz | 55 | ≤ 0.9 | 1800±100 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
Can be customized , please contact us to get more information
Production Feature:
1. C-Frame shaded pole motor designed for hot air circulation in various high-temperature environments.
2. This motor uses all high-temperature resistant ball bearings, ensuring stable operation in high-temperature environments and extending the motor's lifespan.
3. The dual heat dissipation fan design improves the heat dissipation effect. Additionally, the motor's fan blades are made of aluminum steel material that is resistant to high temperatures and corrosion.
4. The motor also features a specially designed bearing bracket for convenient installation.
The main appilication:
The high-efficiency hot air circulation fan equipment which can quickly increase room temperature, improve thermal efficiency, and save energy. They are widely used in residential, commercial, and industrial environments, such as heating rooms, workshops, and large buildings.
