Product Details:
|
| MH MODEL: | MH6019-19146 | Product Name: | AC115V 32W Shaded Pole Induction Motor For Pellet Stove |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V60Hz | Current（A): | 0.5 |
| Input Power（W）: | 32W | Speed（RPM): | 1300 |
| Hi-Pot TEST: | 1500Vac,1mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | ETC/UL | Application: | Oven, Pellet Stove, Lab Equipment |
| High Light: | Hot Air Oven Air ,Circulation Oven Fan, Pellet Stove, Ac Shade Pole Motor 32W |

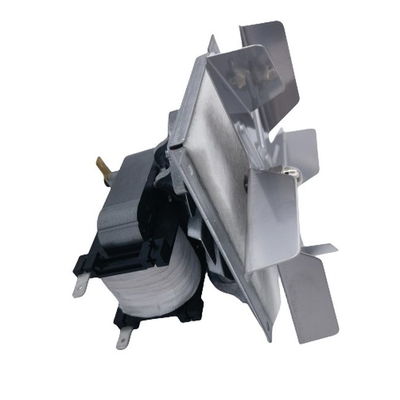

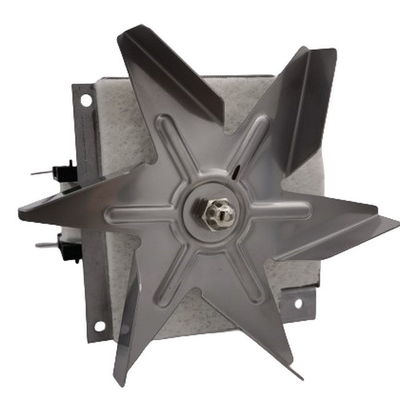

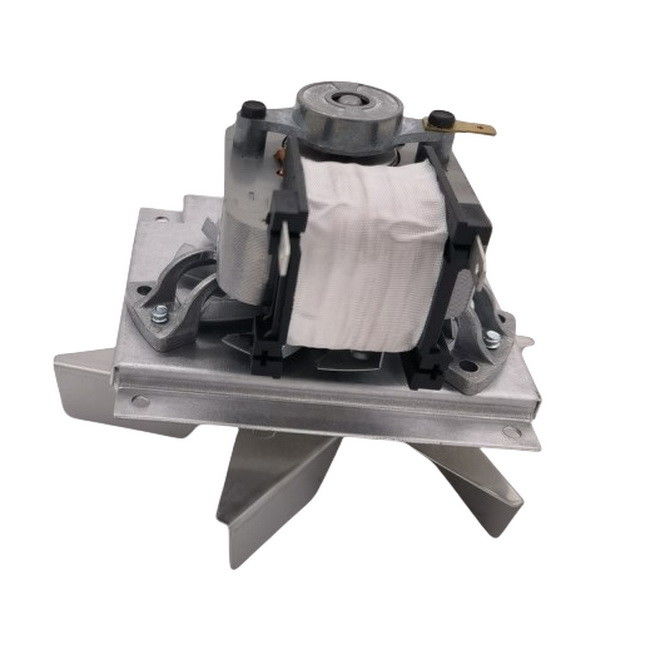

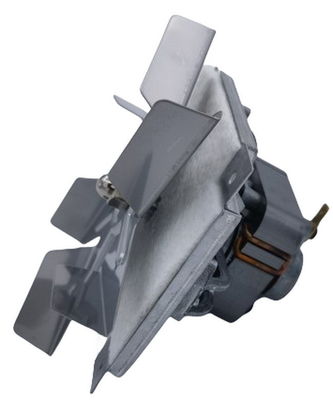

AC115V 32W shaded pole motor for pellet stove oven or ventilation equipment
This serial motors are applied in high speed and large air volume which can quickly achieve temperature balance inside the box.
It is typically applied in oven and hot air drying / ventilation equipment.
Technical Rating Data:
| MH PN# | Volt/Frq (Vac/Hz) | Power (W) | Current (A) | Speed (RPM) | Lamination length (mm) | Bearing | Fan Model | Agency | Incl.Cls |
| MH6019-19XXX | 220-240V, 50/60Hz | 42 | ≤ 0.4 | 1800±100 | 19 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6029-29XXX | 220-240V, 50/60Hz | 50 | ≤ 0.45 | 2300±150 | 29 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6035-35XXX | 220-240V, 50/60Hz | 55 | ≤ 0.4 | 2100±150 | 35 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6038-38XXX | 220-240V, 50/60Hz | 55 | ≤ 0.4 | 2300±150 | 38 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6019-19XXX | 110-115V 50/60Hz | 45 | ≤ 0.9 | 1800±100 | 19 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
| MH6029-29XXX | 110-115V 50/60Hz | 55 | ≤ 0.9 | 1800±100 | 29 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
| MH6035-35XXX | 110-115V 50/60Hz | 60 | ≤ 0.75 | 2200±150 | 35 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
| MH6038-38XXX | 110-115V 50/60Hz | 75 | ≤ 1.2 | 2400±150 | 38 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
Production Feature:
1. High temperature wire connection, riveting standard 250 plastic shell protected quick terminals.
2. Heat-resistant fan made of stainless steel by stamping.
3. Heat-resistant ball bearings: NMB BALL BEARING.
4. Assembled with metal plates and insulated cotton for dual insulation designcooling fan helps to reduce the operating temperature of the bearings and improve the product lifespan.
5. Mature and reliable shaded pole motor technology, suitable for various high temperature environments.
7. High-quality electrical steel and zinc die-casting structure ensure the stability of the product.
