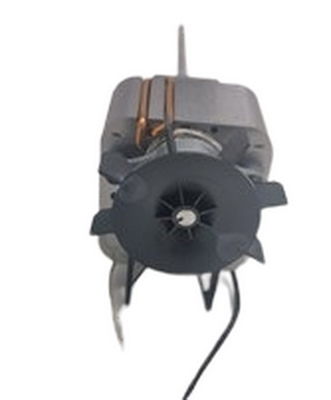

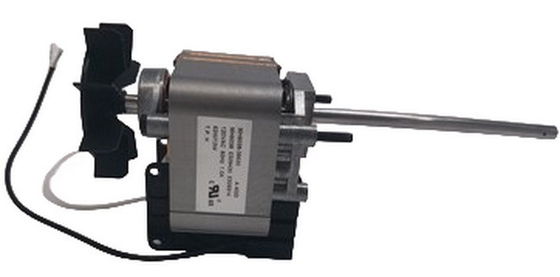

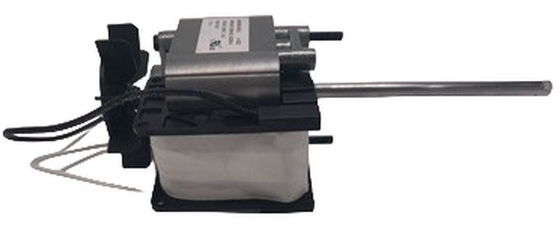

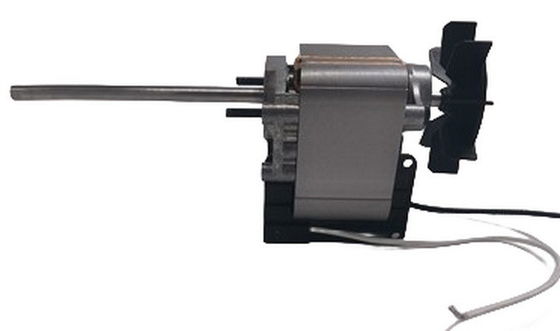

2.38" 88W C Frame Shaded Pole Ac Motor Shaded Pole Fan Motor For Pump

2.38" 88W C Frame Shaded Pole Ac Motor Shaded Pole Fan Motor For Pump
2.38" 88W C Frame Shaded Pole Ac Motor Shaded Pole Fan Motor For Pump 2.38" 88W C Frame Shaded Pole Ac Motor Shaded Pole Fan Motor For Pump 2.38" 88W C Frame Shaded Pole Ac Motor Shaded Pole Fan Motor For Pump 2.38" 88W C Frame Shaded Pole Ac Motor Shaded Pole Fan Motor For Pump

Large Image :  2.38" 88W C Frame Shaded Pole Ac Motor Shaded Pole Fan Motor For Pump

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL/UL
Model Number: MH6038-38630
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 2000PCS/day

2.38" 88W C Frame Shaded Pole Ac Motor Shaded Pole Fan Motor For Pump

Description
Product Name: 88W 02.38" C Frame Motor AC Single Phase Shade Pole For Pump MH MODEL: MH6038-38630
Rated Voltage/Frequency: 115V/60hz Current(A): 1.35
Input Power(W): 88 Output Speed(RPM): 3000
Hi-Pot TEST: 1500VAC,50Hz,1mA,1S Bearing Type: NMB Ball Bearing
Insulation Class: H Agency: ETL/UL
Application: Air Conditioning Condensate Pump, Circulation Mixer. Protect Method: TP
High Light: China 88W , 2.38" C Frame Motor, AC Single Phase Shade Pole

China 88W 1.35A 2.38" C Frame Motor AC Single Phase Shade Pole for pump



The motor is specifically designed for pump applications and can be used to aircondition condensate pumps or other types of pumps. The motor operates on single-phase AC power. It can be directly connected to a single-phase AC power supply, typically using standard household or commercial power.



Specification:

Stack Length (L) (mm/inch) Voltage (V) Frequency (Hz) Speed(RPM) Max Torque(Oz.in) Max HP
Output
21.88(7/8) 110-120V/220-240V 50/60 3000 7.5 1/45
25.40(1) 3000 9.3 1/40
28.123(1 1/8) 3000 11.2 1/30
34.93(1 3/8) 3000 16 1/25
38.10(1 1/2) 3000 18.5 1/18
50.80(2) 3000 24.8 1/13



Note: Listed are representative only for reference, can be customized according to customer requirements



2.38" 88W C Frame Shaded Pole Ac Motor Shaded Pole Fan Motor For Pump 0

Production Feature :



1. 2.38’’ C-FRAME MOTOR

2. Heavy-duty steel and die-cast construction

3. Several shaft size options

4. Several mounting options available

5. Several lead configurations available

6. Ball bearing or Sleeve bearing available

7. Cooling fan for motor design, long lasting



Performance Curve:

2.38" 88W C Frame Shaded Pole Ac Motor Shaded Pole Fan Motor For Pump 1



Welcome your business chat and visit. Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing C-frame motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.
