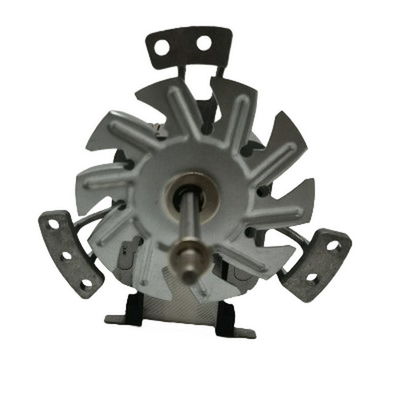

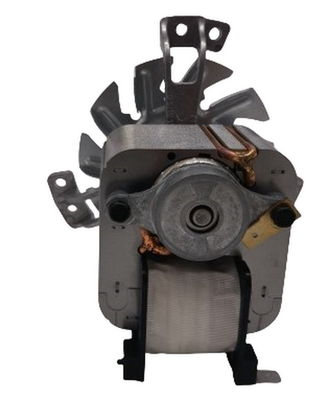

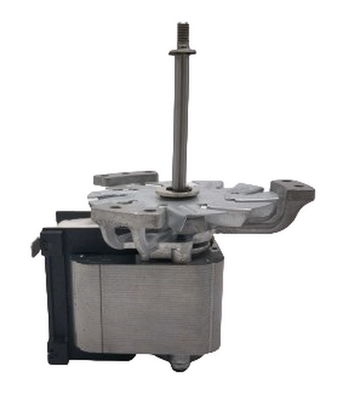

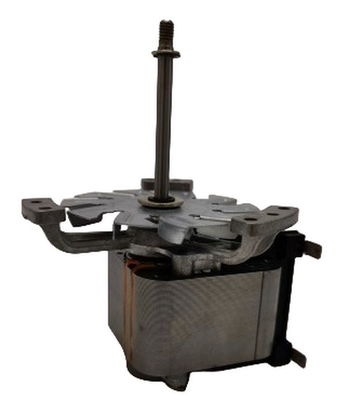

2.38" 55W C Frame Electric Fan Motors Ac Shaded Pole Dual Voltage

2.38" 55W C Frame Electric Fan Motors Ac Shaded Pole Dual Voltage
2.38" 55W C Frame Electric Fan Motors Ac Shaded Pole Dual Voltage 2.38" 55W C Frame Electric Fan Motors Ac Shaded Pole Dual Voltage 2.38" 55W C Frame Electric Fan Motors Ac Shaded Pole Dual Voltage 2.38" 55W C Frame Electric Fan Motors Ac Shaded Pole Dual Voltage

Large Image :  2.38" 55W C Frame Electric Fan Motors Ac Shaded Pole Dual Voltage

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6038-38020
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 3000PCS/day

2.38" 55W C Frame Electric Fan Motors Ac Shaded Pole Dual Voltage

Description
Product Name: China 2.38" 55W 220/240VAC C Frame Motor Dual Voltage Desiign Motor Type: MH6038-38020
Rated Voltage/Frequency: 220/240V 50/60Hz Current(A): 0.55
Input Power(W): 55 Output Speed(RPM): 3000
Hi-Pot TEST: 1800vac50hz,3mA,1s Bearing Type: NMB BALL BEARING
Insulation Class: H Agency: ETL
Output Torque( Oz.in): 6.5 Oz.in @2558rpm Protect Method: TP
Application: MECHANICAL AND FAN DUTY APPLICATIONS High Light: China 2.38" 55W 220/240VAC, C Frame Motor ,AC Single Phase, Dual Voltage

China 2.38" 55W 220/240VAC C Frame Motor AC Shade Pole with Dual Voltge

The motor is constructed using efficient electrical steel, which helps improve motor efficiency, reduce energy consumption, and enhance performance. It can be used in various applications that require a small motor size, low power consumption, and efficient performance.




 Can be customized according to customer requirements, please contanct us.





Stack Length (L) (mm/inch) Voltage (V) Frequency (Hz) Speed(RPM) Max Torque(Oz.in) Max HP
Output
9.53(3/8) 110-120
220-240
50/60 3000 1.4 1/225
12.50(1/2) 3000 3.1 1/112
15.63(5/8) 3000 4.3 1/90
18.75(3/4) 3000 6 1/60
21.88(7/8) 3000 7.5 1/45
25.40(1) 3000 9.3 1/40
28.123(1 1/8) 3000 11.2 1/30
34.93(1 3/8) 3000 16 1/25
38.10(1 1/2) 3000 18.5 1/18
50.80(2) 3000 24.8 1/13



2.38" 55W C Frame Electric Fan Motors Ac Shaded Pole Dual Voltage 0






Production Feature :


1. 2.38-inch Efficient Electrical Steel C-FRAME Motor
2. Zinc die-cast structure
3. Multiple shaft size options
4. Multiple installation structures
5. Independent Grounding Wire connector design
6. Dual voltage design
7. Application:Mechnical and fan duty




Package Information:


15PCS/BOX; 480PCS/PALLET

PALLET SIZE:1070*1070*1850mm



2.38" 55W C Frame Electric Fan Motors Ac Shaded Pole Dual Voltage 1
